Item No.:
TMAX-JK-ZYJ-02Payment:
L/C, T/T, Western Union, Credit Cards, PaypalProduct origin:
ChinaShipping port:
Xiamen PortLead Time:
5 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:
Two years limited warranty with lifetime technical support

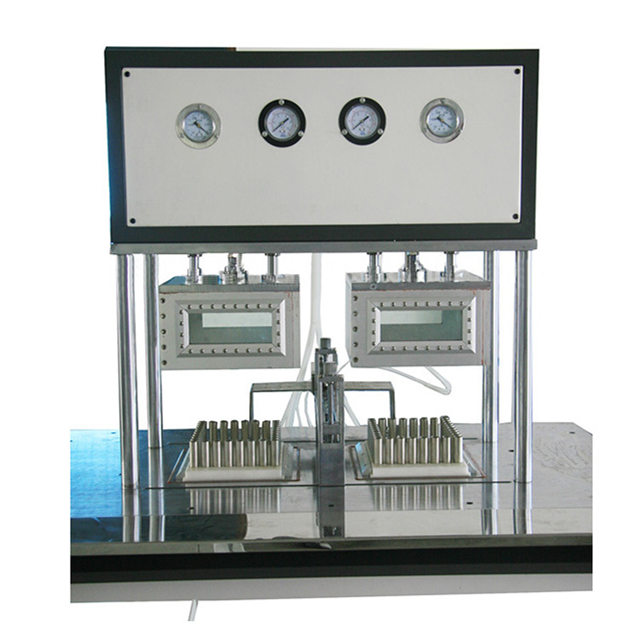

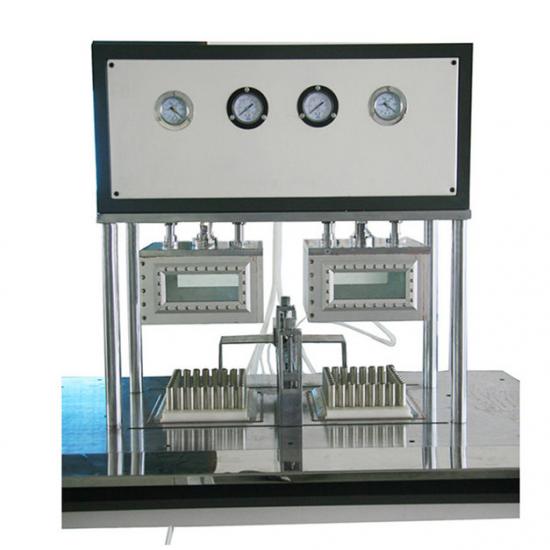

1 TMAX-JK-ZYJ-02 Vacuum linear filling machine is used for lithium battery electrolyte injection with high precision and simple operation.
2 This vacuum filling machine can be used for various cylindrical cell cases including CR123,18650 26650, 32650 and AA with changing clamps.
|
Model |
Vacuum Filling Machine TMAX-JK-ZYJ-02 |
|
Source voltage |
110V-220V AC, 50/60Hz Single Phase |
|
Power |
1500W |
|
Warranty |
One year limited and lifetime support |
|
Suitable battery model |
18650 / 26650 / 32650, For all kinds of cylindrical battery |
|
Advantages |
1 Customized die for all kinds of cylindrical cell types is available according to request 2 Adopt PLC and man-machine interface centralized control, easy operation. 3 Filling speed and times can be set 4 All the parameters such as vacuum time, air input time, filling quantity and battery distance can be adjusted freely. 5 Vacuum box for static control independently |
|
Vacuum filling accuracy |
±0.02g |
|
Vacuum filing time |
1-10times adjustable |
|
Vacuum filling quantity |
0-7g |
|
Vacuum degree |
-0.1Mpa |
|
Air supply |
0.3-0.6MPa |
|
Working clamps |
18650 clamps battery tray 6 rows 8 columns |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
