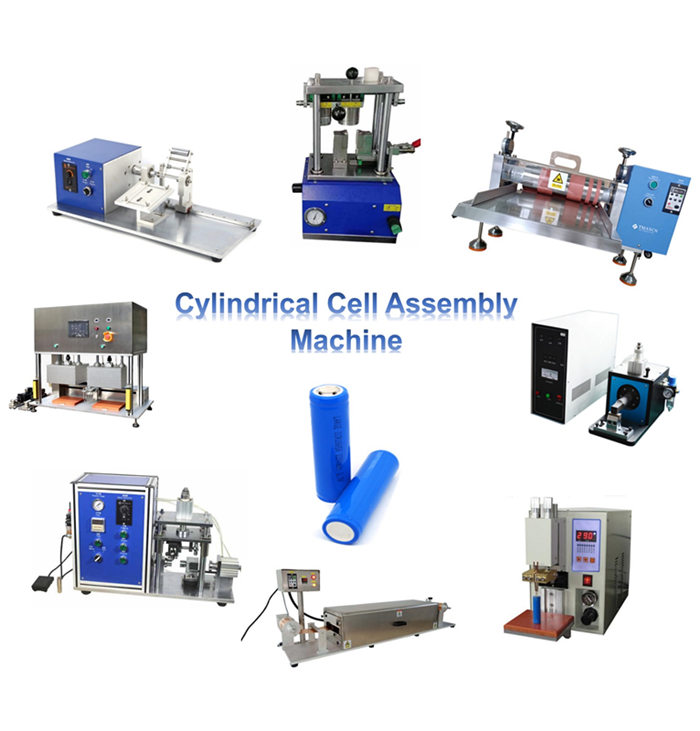

Cylindrical Cell Lab Assembly

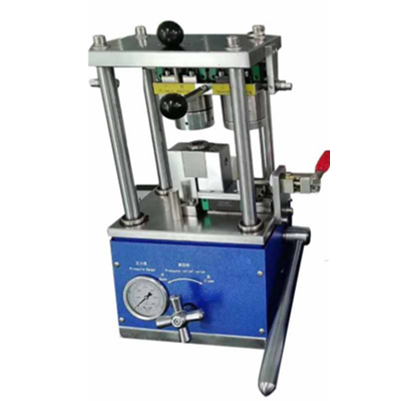

Hydraulic Battery Sealing Machine for Cylinder Cell and Coin Cell

Hydraulic Battery Sealing Machine for Cylinder Cell and Coin Cell

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna





  • Item No.:

    TMAX-CP-18F
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

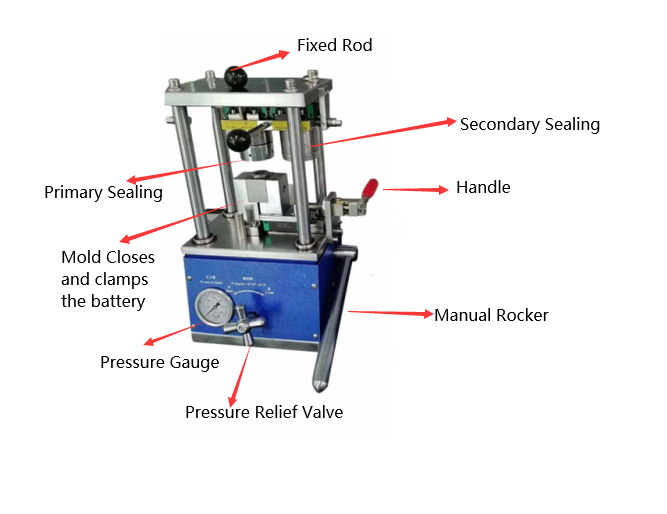

Hydraulic Battery Sealing Machine for Cylinder Cell and Coin Cell


TMAX-CP-18F is a compact hydraulic crimper for sealing all types of cylinder cases in lab R&D. The compact body design allows it to be easily placed inside a glove box and thus preventing contamination of the electrolyte materials during cell assembly.

Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.



Model

TMAX-CP-18F

Driving Force

Manual hydraulic pressing up to 5T

Pressure Gauge

0-3500 psi (0-250 kg/cm2)

Body

Stainless Steel

Crimping Dies

Six standard die selectable: CR123 /18650 / 26650 / 32650 / AA /AAA

Warranty

One year limited with lifetime support

Dimensions

220mm(L) x 170mm(W) x 360mm(H)

Application Notes

1 Customized die for other cylindrical cell types is available upon request.

2 It is necessary to groove the opening end of the cylindrical case by using TOB-GC650 grooving machine before sealing the cap.

3 Each type of cylinder cell can only be sealed specifically by certain model.

Net Weight

32 kg



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
