Home Battery Assembly Machine Line

Cylindrical Cell Assembly

Manual Winding Machine for Super Capacitor

Manual Winding Machine for Super Capacitor

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164




  • Item No.:

    TMAX-JR135
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

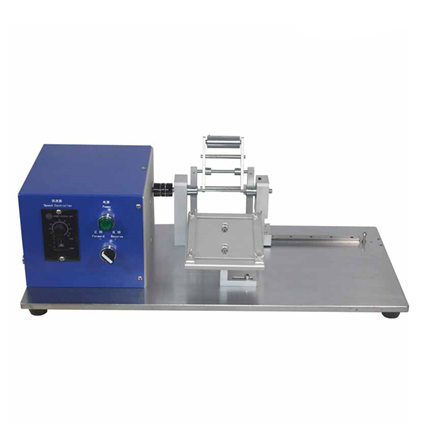

Manual Winding Machine for Super Capacitor

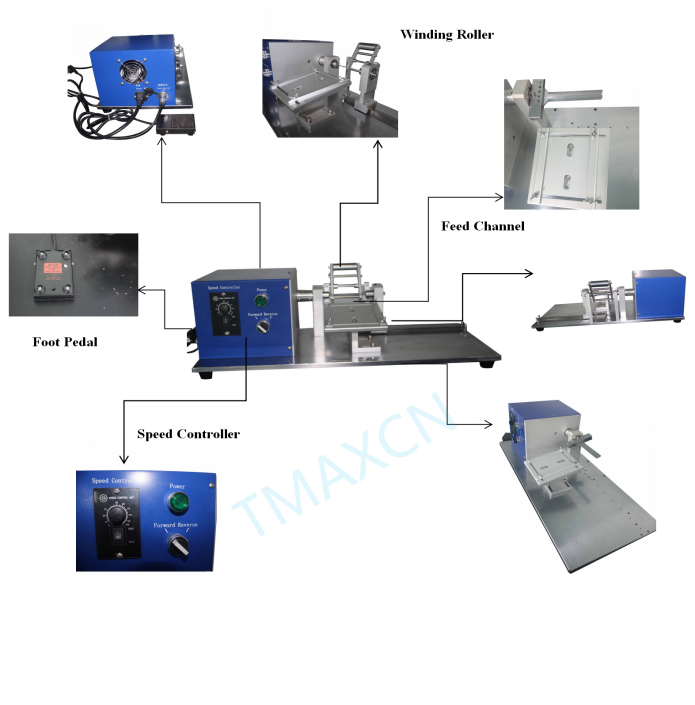

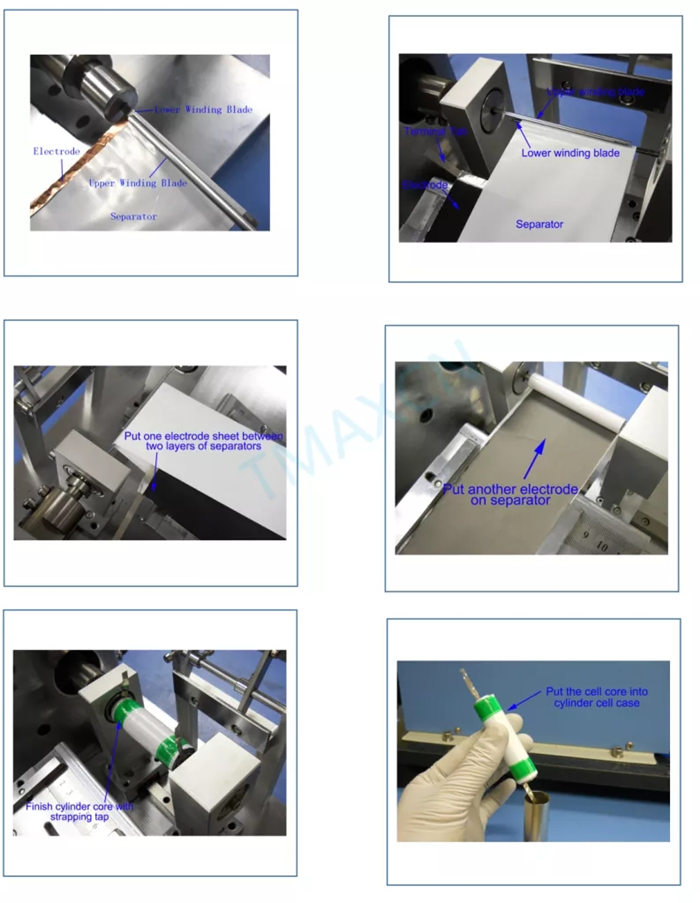

TMAX-JR135 Manual winding machineis used for winding battery anode/cathode electrodes with separator together in the research of super capacitor


Model

Manual Winding Machine for Supercapacitor   TMAX-JR135

Working Voltage

AC110V/220V, 50/60HZ

Power

1000W

Warranty

·One Year limited warranty with lifetime support

Winding Speed

0 - 170 RPM Adjustable

Suitable battery height

10-150mm customized

Winding Mode

Switchable between clockwise and counterclockwise

Output

70-100EA/h, according to battery size and maunal

Product Dimensions

(L*W*H)

1000*380*250mm

Net weight

About 30kg

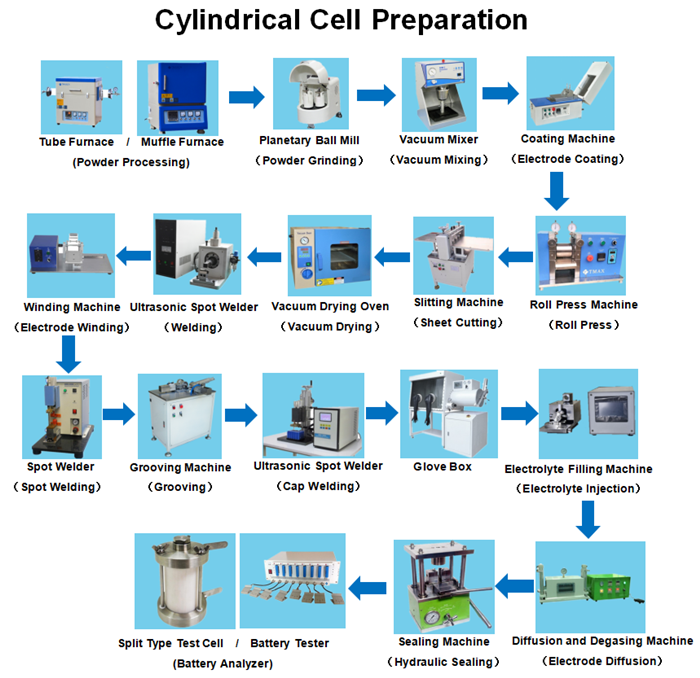

Related Machine for Cylindrical Cell Making

Coating Machine

Electrode Rolling Machine

Electrode Slitting Machine

Vacuum Drying Oven

Ultrasonic Spot Welding Machine

Spot Welding Machine

Grooving Machine

Coating Size:(optional)

(100*250)mm
(200*300)mm
(250*350)mm
(250*550)mm
(250*800)mm

Roller Size:(optional)

(100*100)mm
(100*200,100*250)mm
(100*300)mm
(100*400)mm

Electrode cutting

25L or 50L vacuum Drying Oven

 Welding Power:1000W/2000W

Single point or double point spot welding machine

Manual grooving machine
















 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
