Single Head Battery Electrolyte Filling Machine

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-JLB-10
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Product origin:
China
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

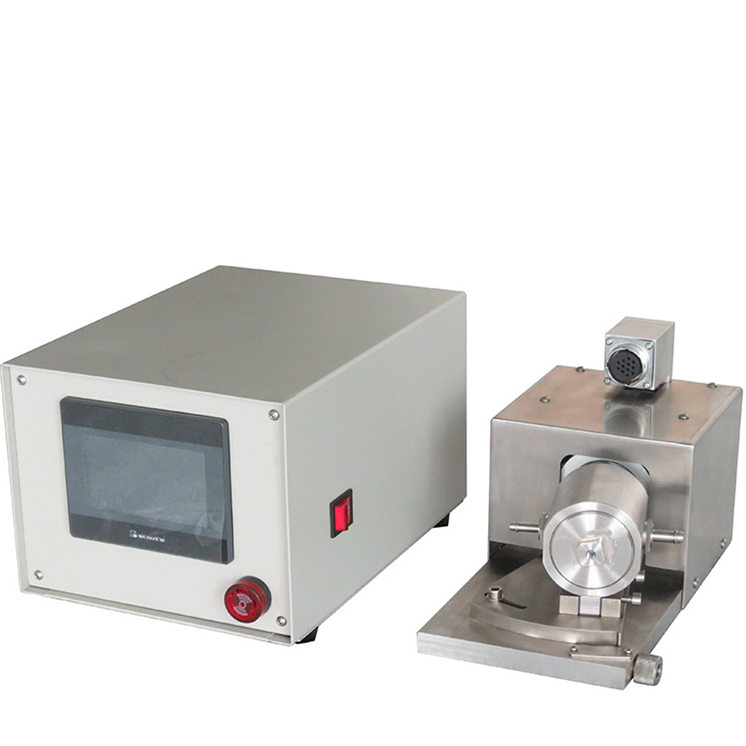

Single Head Battery Electrolyte Filling Machine

TMAX-JLB-10 Filling pump system includes an electronic control box, a stepper motor, and A high-precision rotating fluid reciprocating pump made by special ceramic. It is used for multiple high precision spraying/lithium battery liquid injection system

Model	Single Head Electric Injection Pump TMAX-JLB-10
Warranty	One year limited and lifetime support
Type	Rotating reciprocating positive displacement special ceramic injection pump
Speed	1-800 rpm, According to system configuration and fluid characteristics For battery industry, 60-200rpm is best
Stroke number	1-9999times, According to system configuration and fluid characteristics
Filling range	0-2.4ml adjustable
Filling accuracy	Within 3‰
Source voltage	AC110V/220V, 50/60HZ Single phase
Power	300W
Dimension (LWH)	Controller box : 340300145mm Filling device : 230160155mm
