Item No.:
TMAX-GC650Payment:
L/C, T/T, Western Union, Credit Cards, PaypalProduct origin:
ChinaShipping port:
Xiamen PortLead Time:
5 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:
Two years limited warranty with lifetime technical support

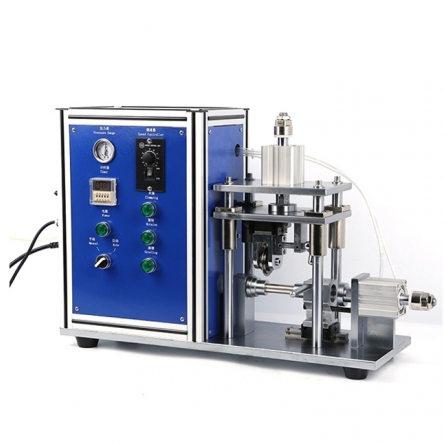

1 TMAX-GC650 Semi-auto grooving machine is and desktop grooving machine,
It is used for grooving various cylindrical cell cases including CR123,18650 26650, 32650 cells with customized grooving die.
2 This machine can also be used for aluminum shell capacitor uniform automatic roll groove.
|
Model |
Grooving Machine TMAX-GC650 |
|
Source voltage |
110V-220V AC, 50/60Hz Single Phase |
|
Power |
140W |
|
Warranty |
One year limited and lifetime support |
|
Suitable battery model |
18650 / 26650 / 32650, can be customized |
|
Advantages |
1 Customized die for other cylindrical cell types is available according to request 2 Each type of cylinder cell can only be grooved specifically by certain model of this equipment. Please select the type of cylinder cellfor the corresponding grooving die of each cylinder cell type. |
|
Grooving depth |
1.2-2.0mm adjustable |
|
Grooving width |
1.1-1.5mm |
|
Grooving precision |
±0.1mm |
|
Knife life |
>100 0000times |
|
Air supply |
0.5-0.7MPa |
|
Dimension |
600*450*350mm |
|
Weight |
68kg |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
