Pneumatic Point Welding Machine

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-MSK-330A
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Product origin:
China
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Pneumatic Point Welding Machine

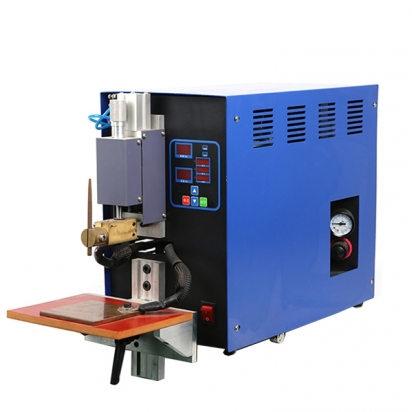

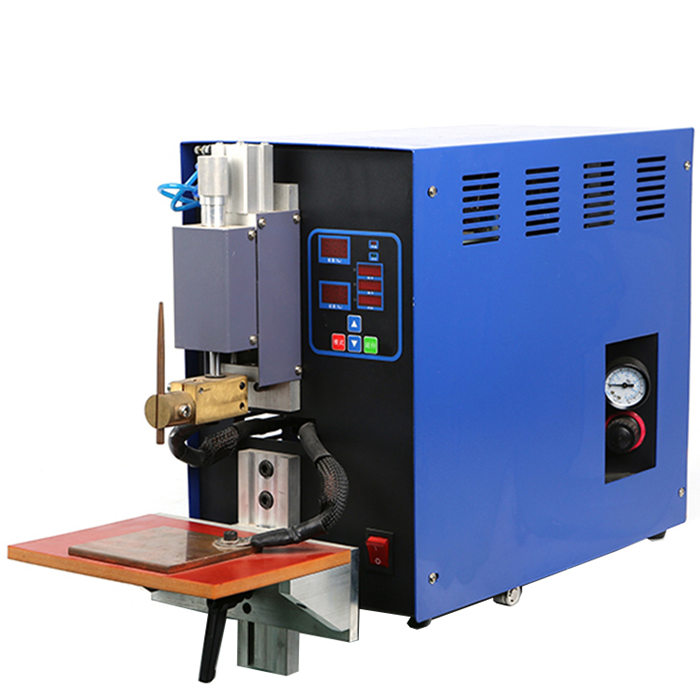

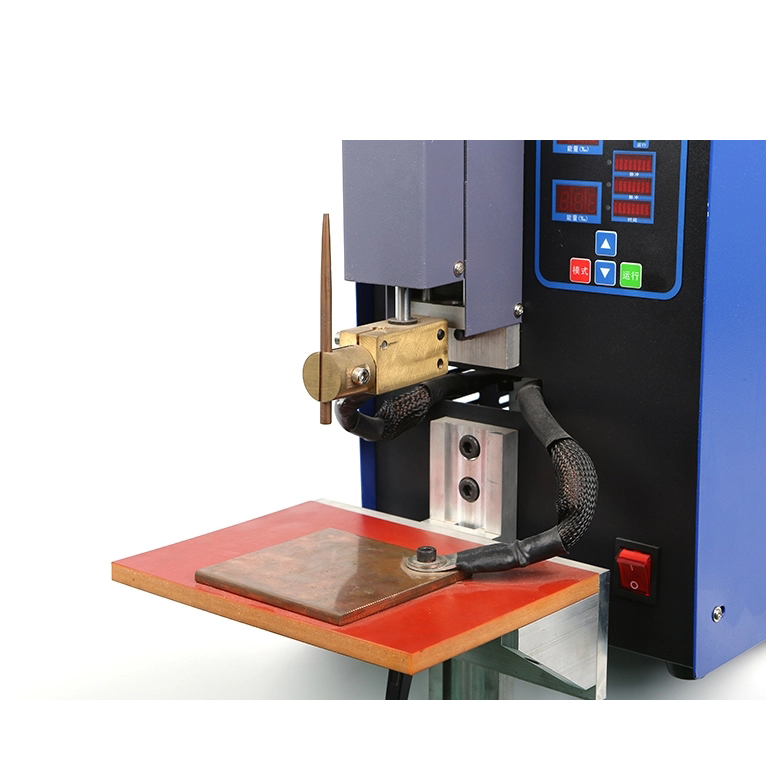

TMAX-MSK-330A Precise Pneumatic Single Point Welding Machineis specifically designed for professionalLi-on Battery Research. It is mainly used forwelding the cylinder core negative terminal (Nickel tab) to the bottom of the cylinder case. 90mm welding needle can easily insert into the cylinder case and weld the bottom. This machine is controlled by microcontroller, which is very easy to operate and can provide stable performance.

Model	Single Point Pneumatic Welding Machine TMAX-MSK-330A
Power Supply	220-240V, Single Phase 50/60Hz
Max. Power	10KW
Air Pressure Range	0.1 - 0.8 MPa
Welding Current	0-99A
Welding Thickness	0.03 - 0.25mm
Operation Temperature	-20 - 40℃
Controller	Controlled by microcontroller,achieve monopulse, dipulse, mutiple-pulse welding
Pressure	Pressure applied on the welding needle can be adjusted independently and easy to operate
Design	Unique Photoelectric switch design Good appearance, small size and light weight Welding spot looks beautiful,free spark, stable welding current
Weight	45 kg (100 lbs)
Dimensions	30.5cm(L) x 50.5cm(W) x 49cm(H)
Warranty	one year limited with lifetime support
