18650 Battery Spot Welding Machine

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164






  • Item No.:

    TMAX-ARP30
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

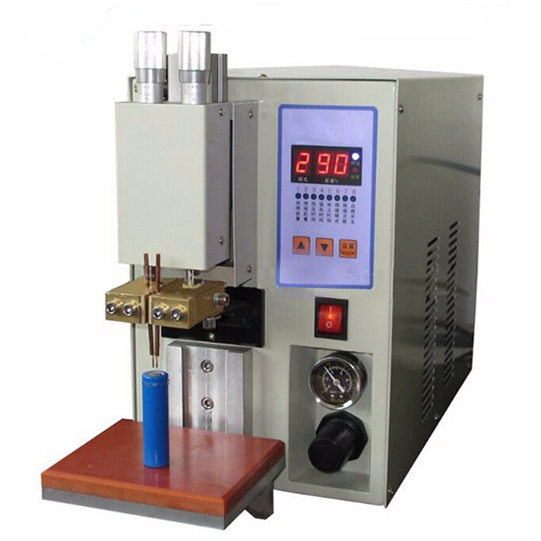

 18650 Battery Spot Welding Machine


Microcomputer precision double pulse spot welding machine

This pneumatic spot welding machine is mainly used for 18650 cylinder call pack welding, it can weld Nickel tab thickness from 0.02-0.2 mm with good welding effect.

The Pneumatic model is with smaller volume and weight, easy for international shipping.

Sinlge point needle can be used for Ni tab weld with Stainless steel case.


1 Microcomputer control, CNC current adjust

2 High precision welding power

3 Digital tube display, keyboard control, welding parameters flash storage.

4 Double pulse welding, make welding more firmly.

5 Small welding sparks, solder joint uniform appearance, the surface is clean

6 Welding times can be set

7 Can set preloading time, the holding time, time to rest,  the welding speed can be adjusted.

8 Large power, stable and reliable.

9 Double needle pressure adjustable separately, Suitable for different thickness of Nickel strip.


Model

TMAX-APR30

Controlmode

Pneumatic

Welding current

3000A

Welding power

0-99% adjustable

Welding method

Double pulse

Maximum output power

15KVA

Voltage supply

AC 220V±10% 50Hz±2Hz

Welding way

Ordinary welding and continuous automatic welding

Time setting

0-2.55s

Automatic counting function

yes

Weight

30kg

Dimensions

550*250*360mm

Package weight

40kg

Package size

630*330*430mm



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
