Lab Scale 500ml or 250ml Compact Dual-Shaft Planetary Vacuum Mixer

Lab Scale 500ml or 250ml Compact Dual-Shaft Planetary Vacuum Mixer

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164



  • Item No.:

    TMAX-XJB-500
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Market price:

    $1880
  • Price:

    $1680
  • Price range:

    1680 - 1880/$1
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

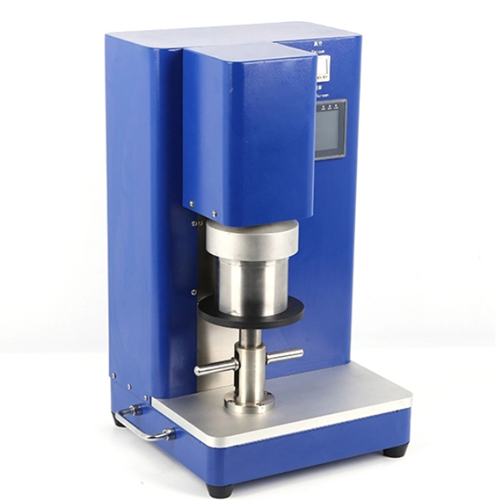

Lab Scale 500ml or 250ml Compact Dual-Shaft Planetary Vacuum Mixer


Specifications

TMAX-XJB-500 Planetary vacuum mixer is one high efficiency equipment with vacuum molding and dispersion function,suitable for the battery lab research of anode and cathode electrode slurry mixing process , as well as for the powdered and ceramic material materials mixing.

Due to the fact that the stirring is completed in the vacuum state, there’s without bubble , so the fillibility of materials and the compactness of model are improved.

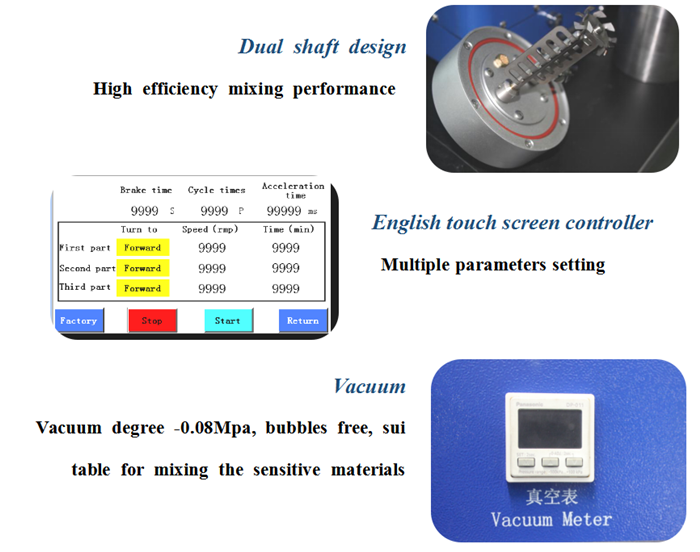

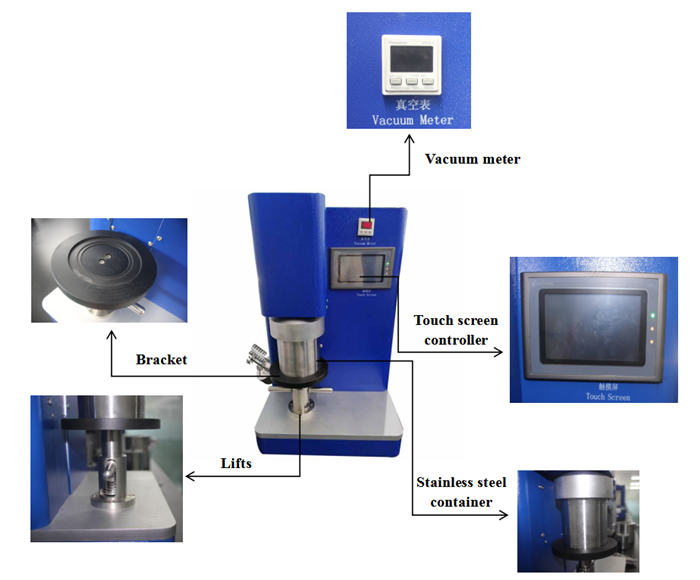

Main feature:

1.Vacuum environment, can eliminate the bubbles generated in the mixing process effectively ,with vacuum system.

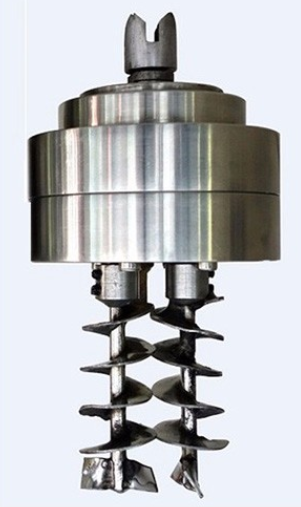

2.Standard equip of biaxial planetary stirring structure, screw impeller, according to the size of mixing tank to configure the different mixing shafts and combination .

3.Reverse and corotation mixing function design , can achieve high viscosity slurry make high speed mixing,have good mixing uniformity.

4.Multi speed operation can be carried out,you can set the speed and time of each stirring .

5.Bracket design, easy to operate, to ensure the safety of the vacuum mixing process

6.Small size, can save space

7.Exquisite appearance, with three-dimensional geometric design, simple and beautiful .


Model

TMAX-XJB-500

Voltage

AC220V 50HZ/ 110V 60HZ

Power

200W

Stirring speed

MAX600 rpm

Multi segment function

There segment speed can be set

Fitting volume

500ml stainless steel vacuum mixing tank

Stirring time

0~600min can be set

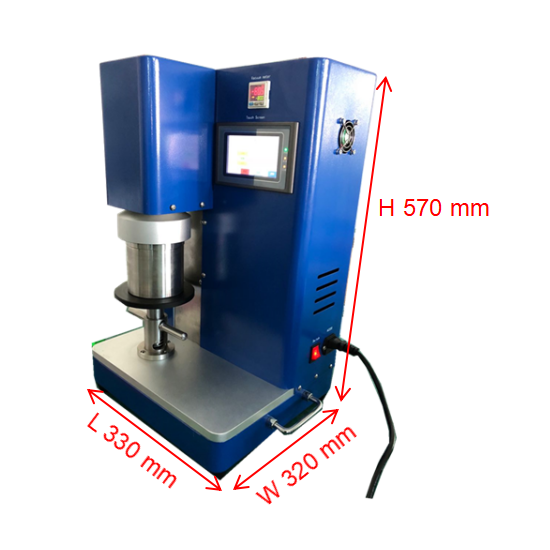

Overall size(L*W*H)

About 330m×320mm×570mm

Net Weight

About 35kg

Remark

1 Built in vacuum pump, vacuum value -0.08Mpa.

2 Standard double screw propeller, others according to the design of tank.

Warranty

One year limited and list time support

Vacuum Mixer


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
