100- 350mm Width Film Applicator with Slurry Guiding Plate

100- 350mm Width Film Applicator with Slurry Guiding Plate

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna



  • Item No.:

    EQ-Se-KTQ-150
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Market price:

    $600
  • Price:

    $350
  • Price range:

    350 - 550/$1
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

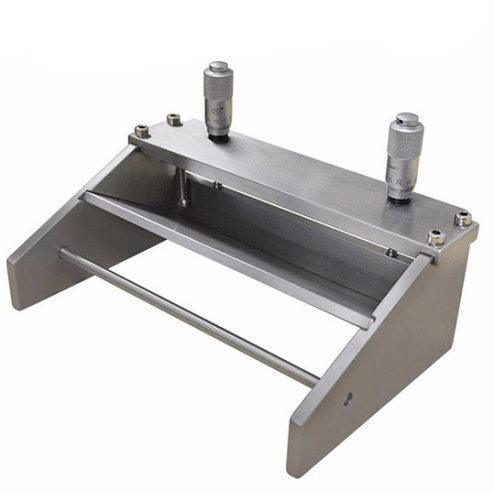

100- 350mm Width Film Applicator with Slurry Guiding Plate



Adjustable Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment.

The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.



Features

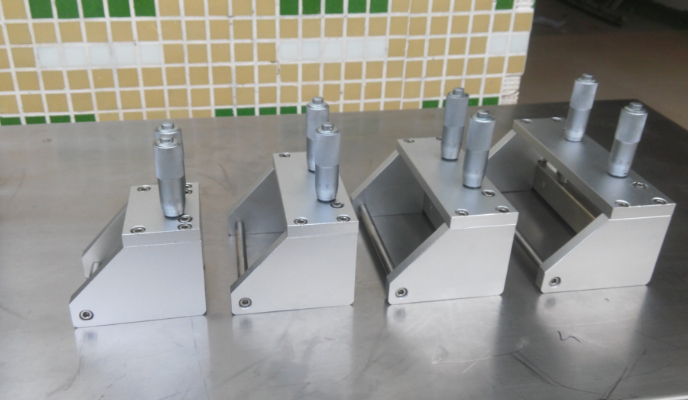

100mm, 150mm, 200mm, 250 mm, 300mm, 350mm standard width.


Built in slurry guiding plate to make film coating at easy.

 The thickness adjustable stroke is 5mm.
Maximum coating thickness is 1mm (according to your materials).

Micrometer head's controllable accuracy is 10 microns.



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
