Roll To Roll Hot Roller Press Machine for Battery Electrode Calendar

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-JS100L
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Market price:
$1880
Price:
$1680
Price range:
2400 - 4280/$1
Product origin:
China
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

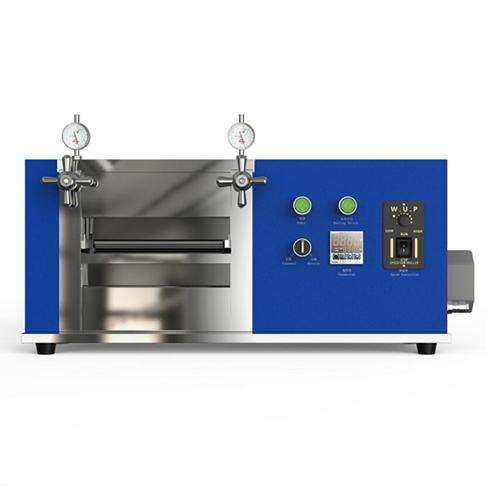

Roll To Roll Hot Roller Press Machine for Battery Electrode Calendar

1 TMAX-JS100L Hot roller press machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.

2 The hot roller press machine has 100mm width steel rollers. Such a roller can be heated up to 130°C

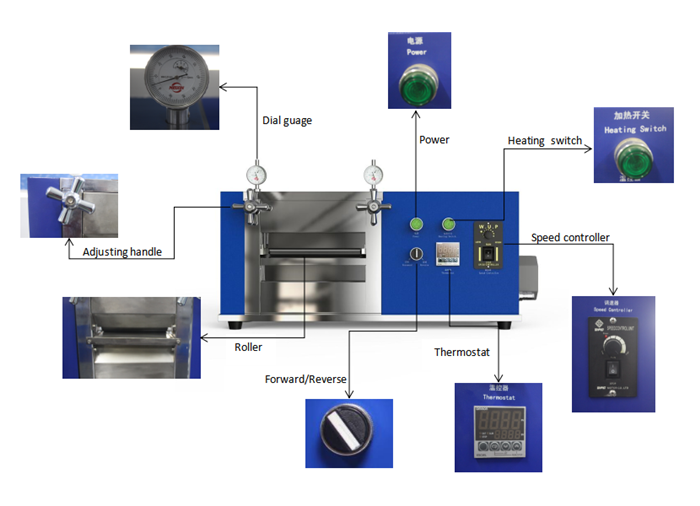

Model	Roll to Roll Hot Roller Press Machine TMAX-JS100L
Source voltage	AC 110V-220V Customized, 50HZ
Power	800W
Warranty	One Year limited warranty with lifetime support
Roller temperature	RT-130℃, adjustable and digital display
Roller diameter	2 - Φ96mm
Roller surface hardness	HRC62
Roller finish degree	>0.8
Rolling press thickness	0-2mm, Adjustable
Working speed	0-40mm/s
Rolling press width	Max 100mm（Customizable）
Dimension(LWH)	800700350mm
Weight	About 86kg

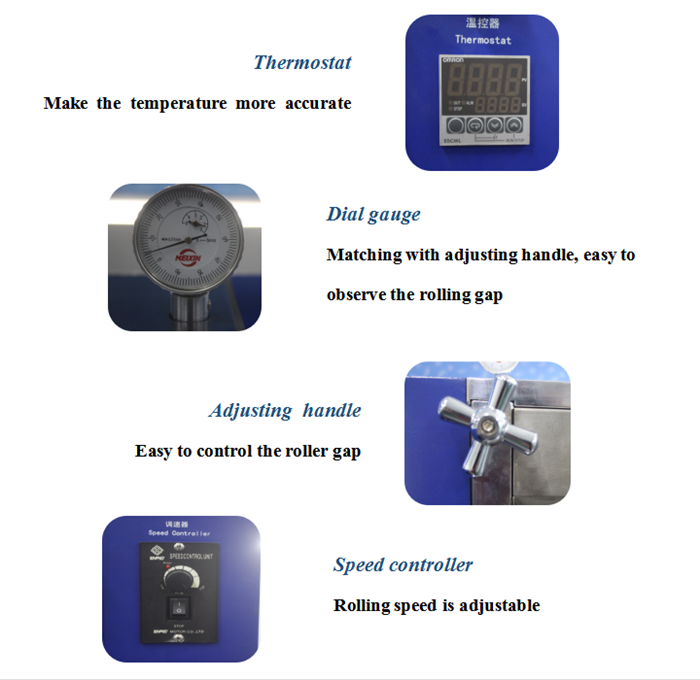

Accessories	1 “Customized power plug”-1pcs 2 “Dial gauge”-2pcs 3 “Socket head wrench”-1set 4 “Feeler gauge”-1pcs

More Models:

Roller diameter tolerance	0.004mm
Roller Surface Hardness	62 HRC
Roller Dimensions	100mm(Dia.) x 100mm(W) 100mm(Dia.) x 200mm(W) 100mm(Dia.) x 400mm(W) 150mm(Dia.) x 200mm(W) 150mm(Dia.) x 400mm(W) 200mm(Dia.) x 200mm(W) 200mm(Dia.) x 400mm(W)
Working Voltage	110V - 240V AC, 50/60Hz, automatic switch for worldwide use
Roller Material	Made from hardened tool steel (RC > 62) with Cr electroplated coating
Rolling Speed	0-40mm/s adjustable
Warning1	Never roll materials with hardness > 50HRC
Warning2	This rolling machine can be used under Ar gas
Application	Battery Equipments
Color	Request
Product Keywords	hydraulic roller press,hydraulic pressure rolling press machine,hydraulic pressure calendering machine
