Manual Coin Cell Electrode Disc Cutting Machine

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-CP60
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Market price:
$1880
Price:
$980
Price range:
980 - 1050/$1
Product origin:
China
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

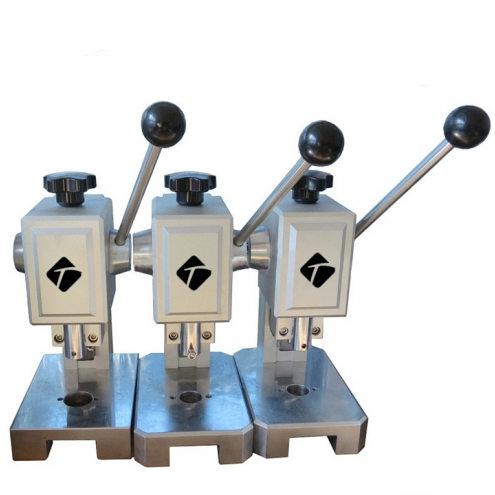

Manual Coin Cell Electrode Disc Cutting Machine

The Coin cell disc cutter machines used for coin cell electrode punching with customized cutting die. It's operation is simple with light weight, The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researches.

Machine model	Disc cutter for coin cell electrode punch TMAX-CP60
Operating	Manual
Punching size	Standard configuration : φ14mm punching die, φ8-24mm can be chosen
Application Notes	For make CR2016, CR2025 or/and CR2032 coin cell batteries, we will need at least three cutting dies: A 15mm B 16mm C 19 mm (for separator to fully separate the electrodes) For CR2450 coin cell: 20mm cutting die can be used for cutting electrode discs and the 23mm cutting die for separator disc.
Punching stroke	25mm
Punching thickness	0.005-0.5mm electrode and separator
Advantages	Simple operation Light weight Can both cut electrode and separator
Dimension	110150235mm
Weight	About 6kg
Warranty	One Year limited warranty with lifetime support

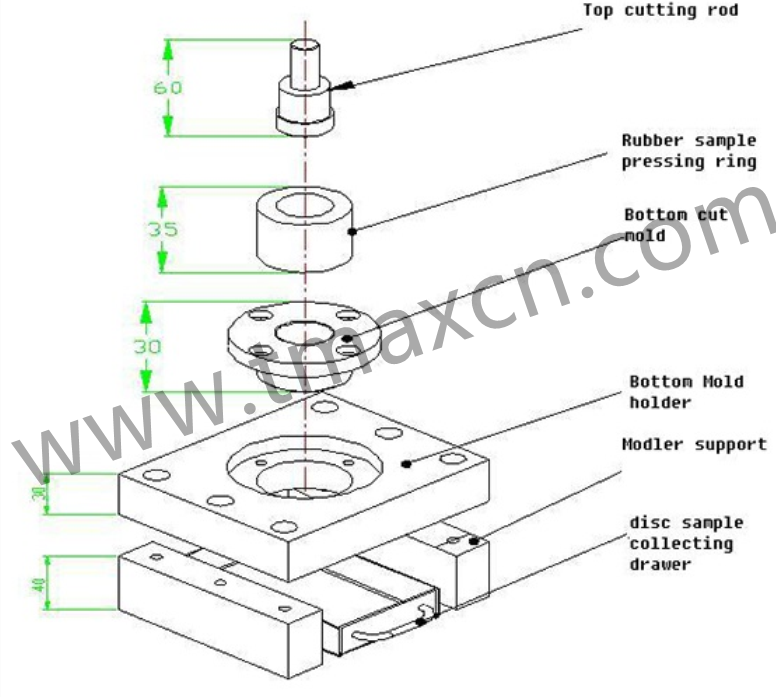

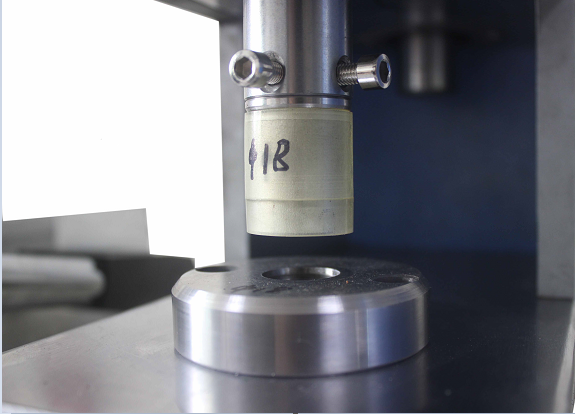

Reference Pictures	Disc cutter dies:
