Two years limited warranty with lifetime technical supportPrecision Thickness Checker with 0.001mm Digital Indicator

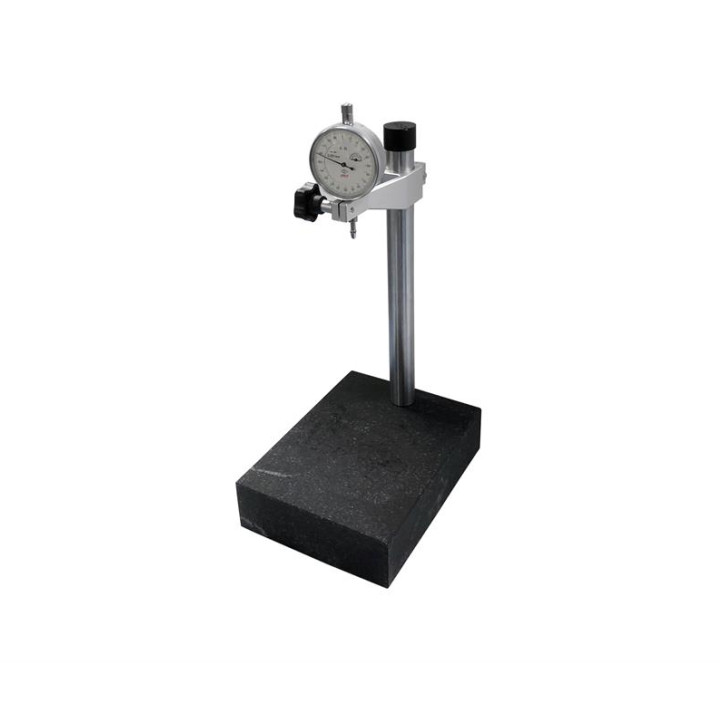

EQ-SKCH is a simple, cost-effective, and precision device for measuring the thickness of crystal wafer and any sample during lapping and polishing, also can be used for measuring thermal expansion of the solid-state battery. The fixture consists of a precision granite flat plate and precision dial or digital micrometer with a resolution of 0.001 mm.
|
Base Plate |
· Polished granite flat plate: 155 mm W x 210 mm L |
||||
|
Micrometer Head |

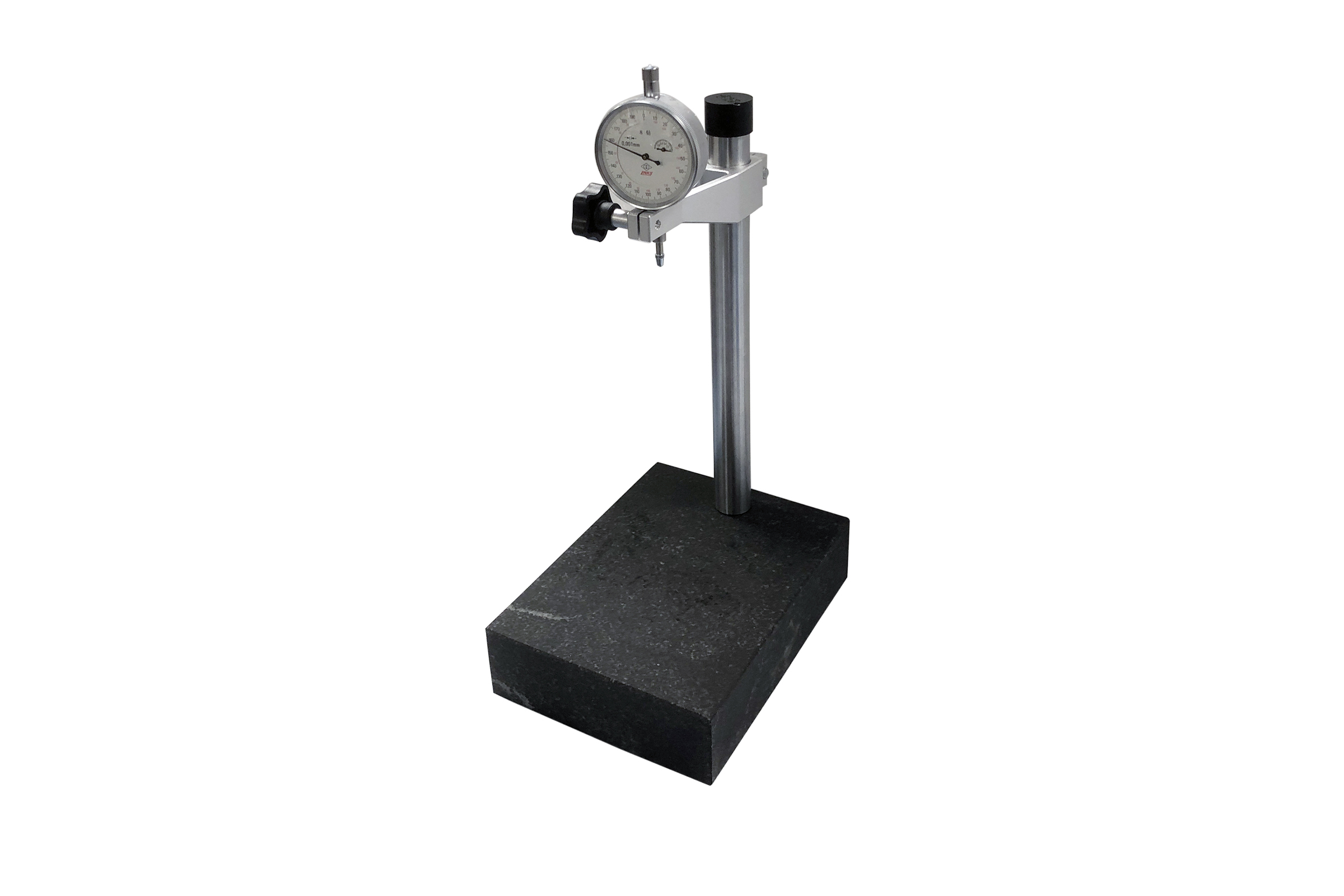

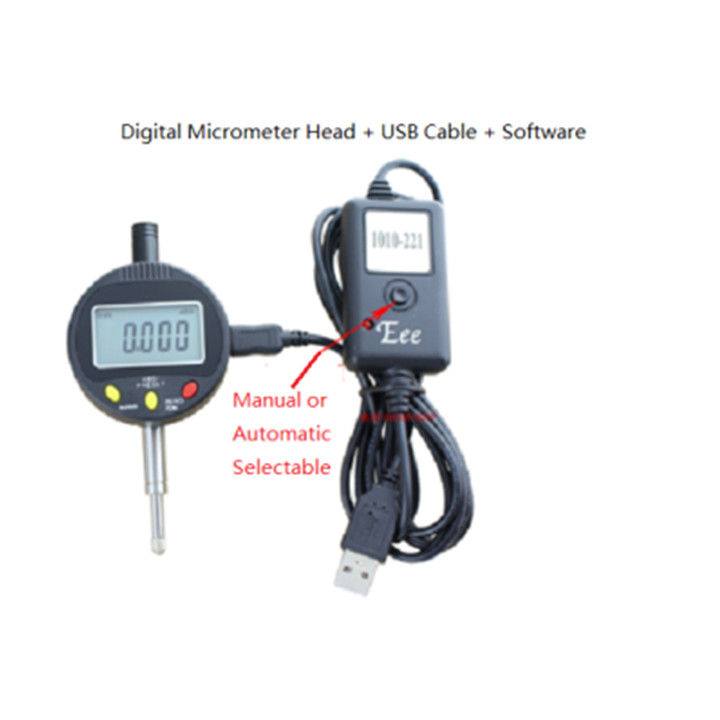

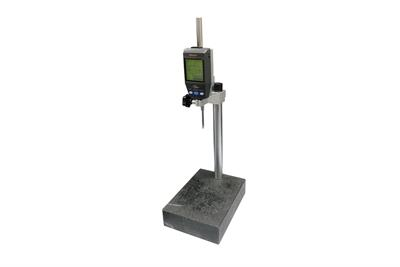

· Please select the micrometer in the optional bar: Dial or Digital micrometer. · Mechanical dial micrometer: 1-micron resolution (0.001 mm). (Pic.1) · Digital micrometer: 0.5 micron resolution (0.0005 mm); Range: 1.2"(30.5 mm); Accuracy: 0.0015 mm. (Pic.2) · Operating temperature: 0 - 40 °C · Head adjustable height: 250 mm
|
||||
|
Shipping Weight |
· 18 lbs |
||||
|
Dimension |

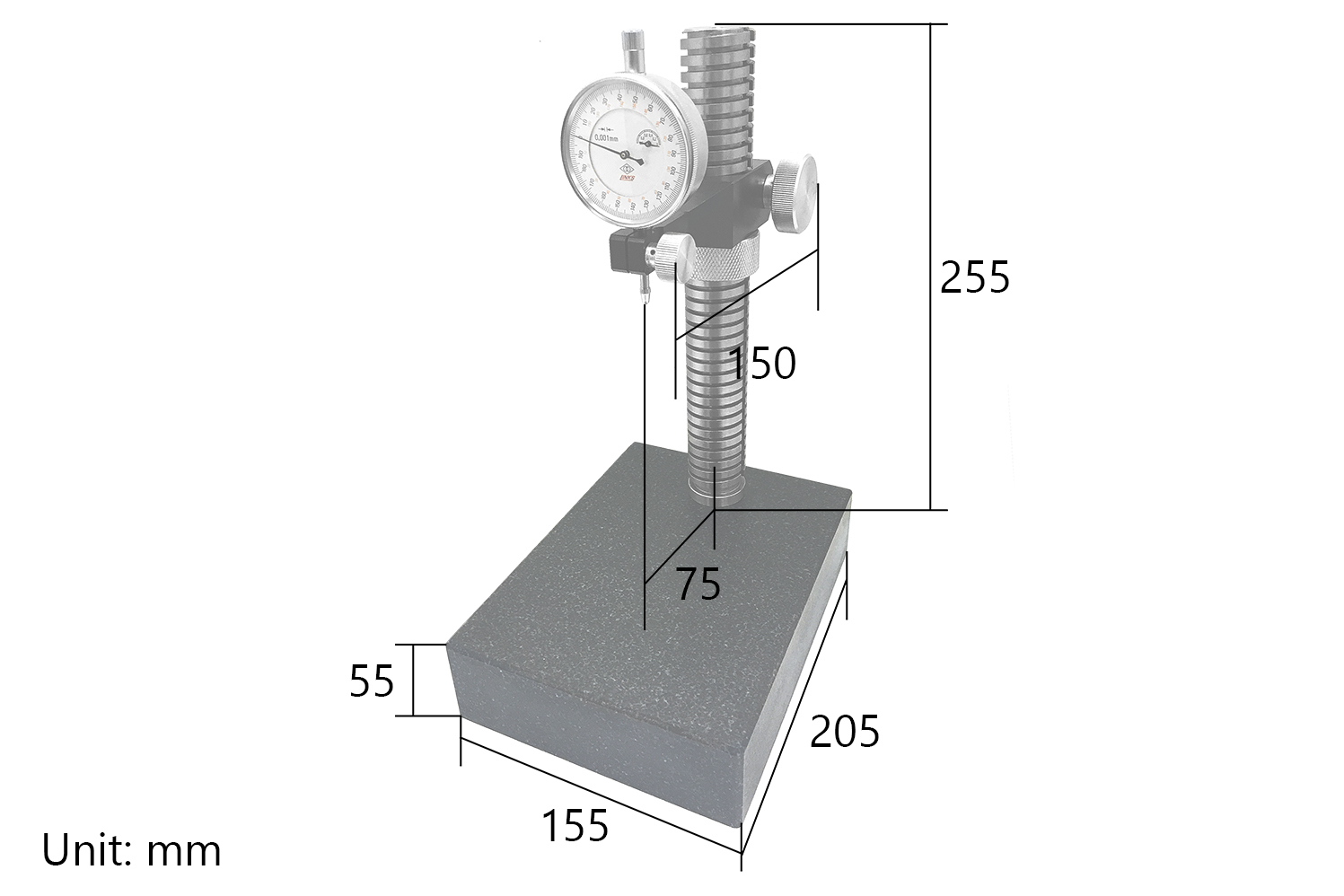

· · 155 x 205 x 310 (mm L x W x H) · Max distance between base and micrometer head tip varies. |
||||
|
Application Note |
· |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
