Economic Grinding and Polishing Machine with Complete Diamond Lapping Accessories - EQ-Unipol-800-LD

Economic Grinding and Polishing Machine with Complete Diamond Lapping Accessories - EQ-Unipol-800-LD

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-EQ-Unipol-800-L
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Min order:

    2
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

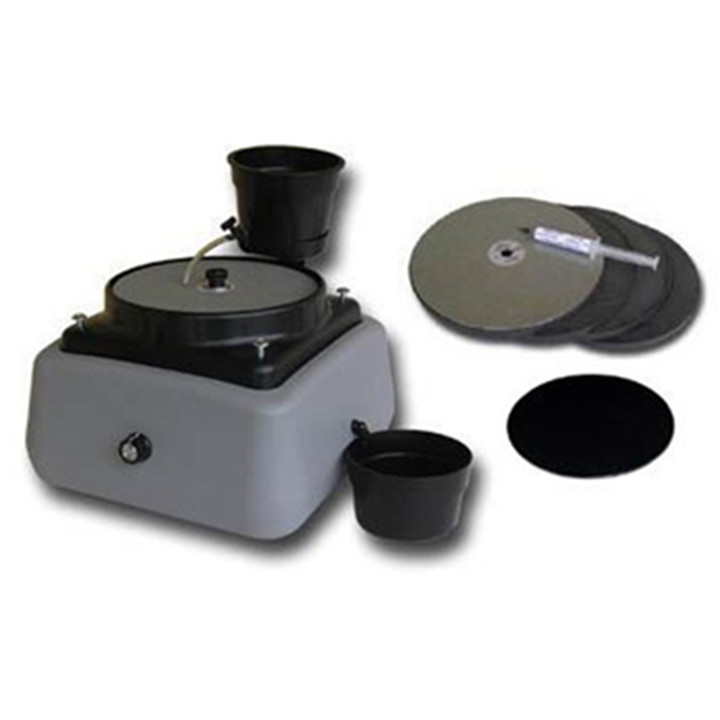

Economic Grinding and Polishing Machine with Complete Diamond Lapping Accessories - EQ-Unipol-800-LD




EQ-Unipol-800 is a complete grinding and polishing machine designed for material research laboratory at an affordable price for researchers and graduate students. The 5-step diamond accessory kit (value > $300) makes it possible to grind, shape and polish all types of materials, such as glass, quartz, ceramic and metallic sample. Unipol-800 is quiet and easy to clean up. It includes all necessary diamond accessories and lets you work immediately.
SPECIFICATIONS

Motor

1/4 HP equivalent Ball Bearing DC

Voltage

· 110V AC or 220V AC with 300W transformer

· Selectable from product optional bar

Speed

500 to 3,000 rpm

Drive

Direct Drive on 2" Flange

Dimensions

12" x 12" x 7"

Weight

18 lbs including accessories

Shipping Dimensions

18" x 20" x 15"

Coolant Reservoir On TheTop & Takes off Splash Guard



Complete Accessories

· One 8" master plate to hold a grinding disk, sandpaper, or polishing pad

· 4 pcs diamond plated grinding/lapping plates, at mesh 320, 600, 1200, and 1800  with adhesive backing are included for immediate use (please click the picture below left to order extra)

· One 8" Polyamide Foam polishing Pad included for final polishing (please click picture left-2 to order spare)

· One 0.25 micron Diamond Compound Polishing Paste is included for your testing. Please click the picture below right to order extra consumables




Compliance

· CE certified

· NRTL certification is NOT available temporarily

Shipping Weight

30 lbs


Warranty

· One year limited with lifetime support

· Rusting and damage due to improper storage condition or maintenance are not covered by warranty






 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
