Multi Purpose Precision 8" Polishing Machine

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-Unipol-810
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Min order:
2
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

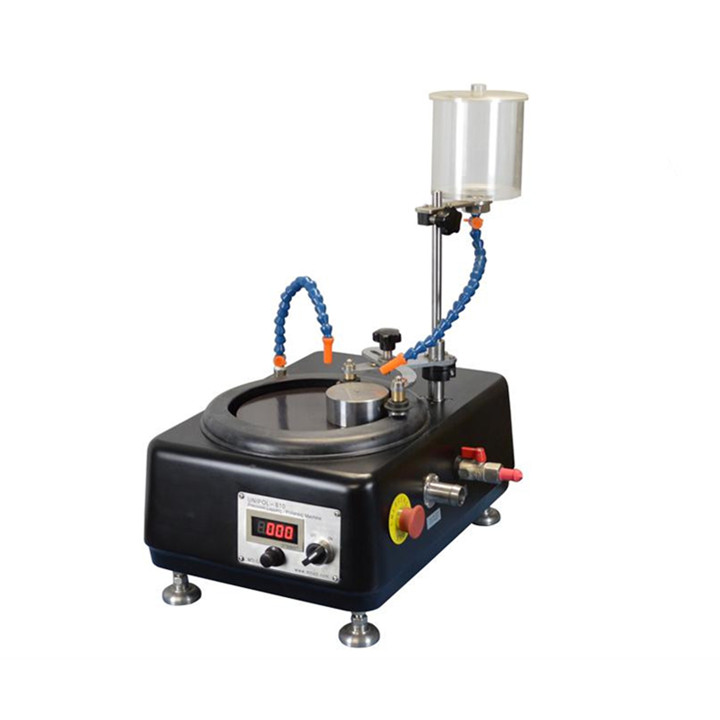

Multi Purpose Precision 8" Polishing Machine

Product Introduction

The UNIPOL-810 precision grinding and polishing machine is used for grinding and polishing crystals, metals, ceramics, infrared optical materials (such as zinc sulfide, zinc sulfide, silicon, germanium and other crystals), glass, rock samples, mineral samples, PCB boards, refractory materials, composite materials and seals, etc., such as optical components, compound semiconductor substrates, ceramic substrates, sapphire, yttrium vanadate, lithium niobate, gallium arsenide. It is equipped with a pear-shaped hole mounting plate, which facilitates the embedding or grinding of circular metallographic specimens. The UNIPOL-810 precision grinding and polishing machine can be manually polished or automatically polished using the sample carrier block controlled by the robotic arm. It is a versatile grinding and polishing equipment. The UNIPOL-810 precision grinding and polishing machine can grind samples using a grinding disc and abrasive, or by using a polishing disc with sandpaper to grind the samples. The sandpaper or polishing pad is mounted by magnetic force, making the loading and unloading convenient. The choice between sandpaper grinding and abrasive grinding can be made according to the material of the sample to be ground.

Main features

· Equipped with a dropper device, it can automatically drip in the grinding liquid.

· Variable speed control, with digital display.

· Simple and quick operation.

· Comes with a working arm, for automatic grinding.

Technical Specifications

Product Name	UNIPOL-810 Precision grinding and polishing machine
Product model	UNIPOL-810
Installation conditions	1. Humidity and temperature: 10 - 85% RH (no condensation at 25℃) Temperature: 0 - 45℃. 2. There should be no strong vibration sources or corrosive gases around the equipment. 3. Power supply: Export standard equipment: AC 110/240V 50/60Hz three-prong socket 10A Domestic standard equipment: AC 220V 50Hz national standard three-prong socket 10A (the socket must have a good safety protection grounding wire) 4. Cooling water: The equipment is equipped with an upper water inlet and a lower water outlet. It is necessary to connect the tap water and drainage pipelines by yourself. 5. Air source: Standard equipment does not require any special air source requirements. 6. Workbench: It is recommended to use an operating table or desktop with a load capacity of more than 100kg. 7. Ventilation device: Good ventilation environment, no special ventilation device requirements. 8. Auxiliary equipment (to be purchased separately): Recommended: 1. HEATER-3040 or 250 heating platform 2. SKCH-1 (A) precision thickness gauge 3. GPC- series precise grinding and polishing controller (mechanical hand) 4. SZKD- series dropper 5. SKCS-1 type blow dryer
Main parameters	1. Equipment power input port: AC 110/220V conversion (AC 110V is invalid in China)
	2. Total power: 175W
	3. Grinding and polishing disc diameter: Φ203 mm
	4. Flat sample loading disc diameter: Φ80 mm
	5. Peach-shaped sample loading disc diameter: Φ80 mm, peach-shaped inner hole 3xΦ26 mm
	6. Number of workstations (positioning mechanical arm): 1 workstation
	7. Dripping bucket volume: 1L
	8. Main shaft drive motor: DC 110V 165W
	9. Grinding and polishing disc rotation speed: 20-600 rpm (stepless speed adjustment)
	10. Control method: Manual knob speed adjustment
	11. Product Specifications: · Dimensions: L450 × W500 × H600 mm · Net Weight: ≈ 35 Kg
	Note: 1. The power supply for the equipment is divided into two types: external and internal. The actual power supply parameters shall be based on the label attached to the rear of the product. 2. Various polishing and grinding discs, special sample holders, fixtures, and dedicated components can be customized according to user requirements.

Standard accessories

NO	Name	Quantity	Picture
1	Cast iron grinding disc	1 unit
2	Aluminum alloy magnetic disc	1 unit
3	Supporting plate	1 unit
4	Fixing ring	1 unit
5	Pear-shaped hole storage plate Magnetic tiles	1 set
6	Magnetic tiles	2 pieces
7	Developing and polishing film	5 pieces
8	Sandpaper	8 pieces
9	Polishing pad (leather, synthetic leather, polyurethane)	1 piece each
10	Diamond polishing paste	1 stick
11	Corundum grinding powder	0.5 kg
12	Wax stick	4 rods

Optional accessories

NO	Name	Function Category	Picture
1	SKZD-2 Drip Feeder	(Optional)
2	SKZD-3 Dripping Dispenser	(Optional)
3	SKZD-4 Automatic Dosing Machine	(Optional)
4	SKZD-5 Dripping Dispenser	(Optional)
5	YJXZ-12 Mixing Circulation Pump	(Optional)
6	Precision thickness gauge	(Optional)
7	GPC-50A Precision Grinding and Polishing Controller	(Optional)
8	UNIPOL-01 Type TEM Wedge-shaped Grinding and Polishing Fixture	(Optional)
