Automatic Grinder and Polisher with Complete Accessories

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-Unipol-300
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Min order:
2
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Automatic Grinder and Polisher with Complete Accessories

Tmax-EQ-Unipol-300 is an automatic mini-grinder / polisher for preparing TEM, metallographic samples in a single mount. The machine equips with 3" fix lapping plate, variable sample moving speed, adjustable pressure load and selectable time switch to achieve attention free polishing.
Unipol 300 simulates human hand to grind and polish sample via randomly moving sample holder on top versus fixed 3" plate. It is very suitable for preparing < 1" Dia specimen in low volume laboratory for material research, failure analysis, and medical test. By combining our SYJ150 low-speed diamond saw, you can own a processing lab on one desk to prepare versatile specimen at an affordable budget.

SPECIFICATIONS

Power	AC 110V and 208-240V (50/60Hz) switchable for worldwide operation.
Max. Moving Weight of Specimen	200g
Max. sample size	25 mm Dia. x 20 mm H
Features 3" glass lapping plate (front & back)	Easy to use and affordable Variable moving speed for the sample holder on top Adjustable pressure load by a spring inside from 0-5 Newton Automatic timer setting from 0 to 99 hours

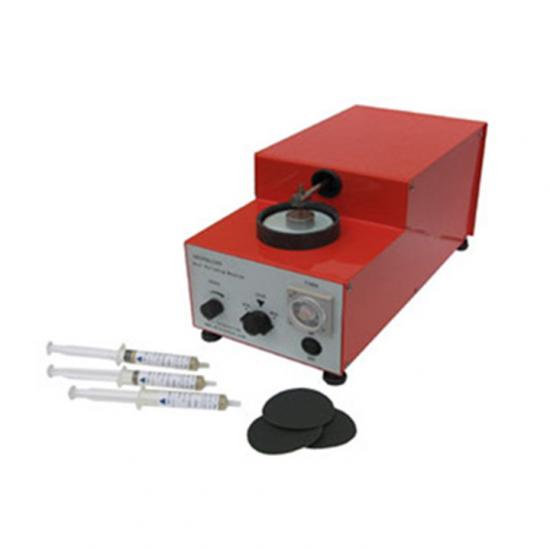

Accessories	Two 1" Dia. sample holders are included. One holder is for the flat sample as the first picture shown below, and the other one is for inserting bulk sample as the second picture is shown below Compressing or cold mount sample can be used as sample holder (make a hole in round sample mount center, put the moving rod on the hole) One rubber polishing Collar with one 3" glass lapping plates is included. Extra rubber Collar and 3" glass lapping plate are available as options. See the 3rd and 4th pictures or Click Rubber Polishing Collar and 3" Glass Lapping Plate to order Three 3" Poromeric Polishing Pad (PSB) for Final polishing is shown in the 5th picture 1 set of 3 syringes (10g) diamond paste with 0.25, 1.0, and 3.0-micron grit. (Please click the 6th picture below to order extra.)

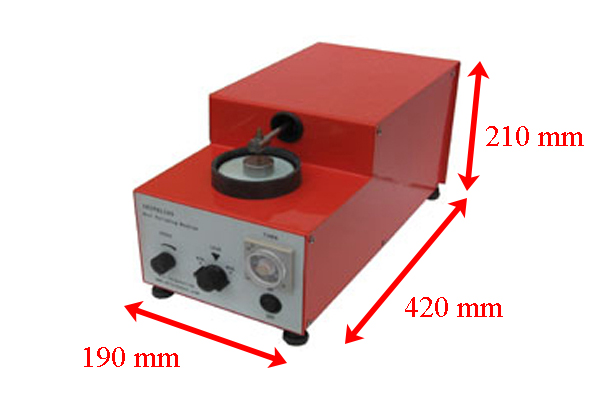

Overall Dimensions	420mm L x 190mm W x 210mm H
Net Weight	24 lbs
Package Dimensions	34" x 14" x 14"
Shipping Weight	34 lbs
Compliance	CE Certified NRTL certification is NOT available temporarily.
Warranty	One year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
