Power

AC 110V and 208-240V (50/60Hz) switchable for worldwide operation.

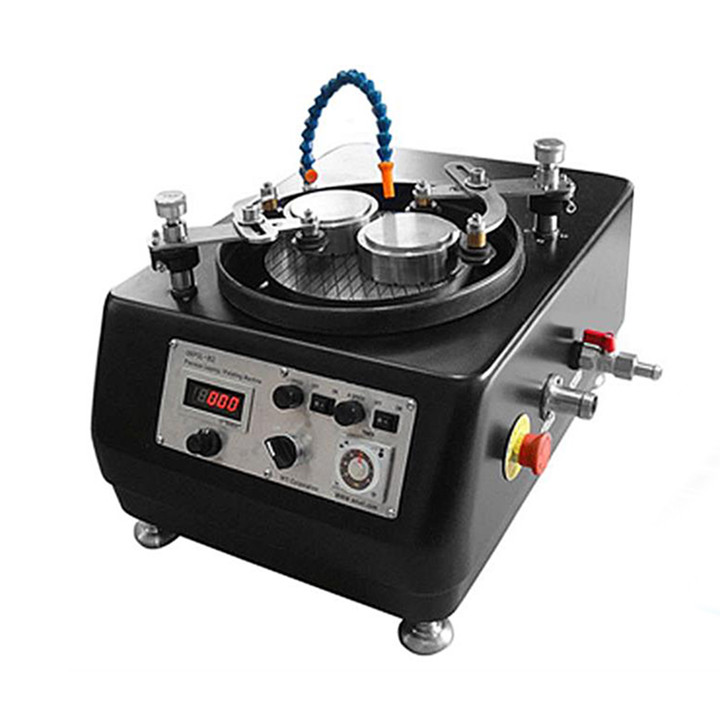

Features

· One cast iron plate for lapping and one cast aluminum plate for polishing

· Two rocking workstations with wafer holders and condition rings can be controlled independently for polishing 2 pcs of 3" wafers in one running

Super-Flat 8" Lapping Plate

Flatness < 2.5 micron / inch²

Plate Run-off

< 5 micron

Aluminum Case

Heavy Duty Cast with Bright Painting (Color: Black)

Two Work Stations Rocking Speed

8° Rocking with an adjustable speed of 0 - 20 rocking/minute

Two Flat Sample Holders

80 Dia. x 35 T mm for carrying <3" diameter wafer

Two Condition Rings

95 O.D. x 88 I.D. x 32 T mm

Master Plate Speed Range

0 ~ 250 rpm variable with digital display

Operation Timer

0 - 99 hours

Motor

300 W high torque DC motor

Dimensions

525 L x 350 W x 325 H (mm)

Net Weight

120 lbs

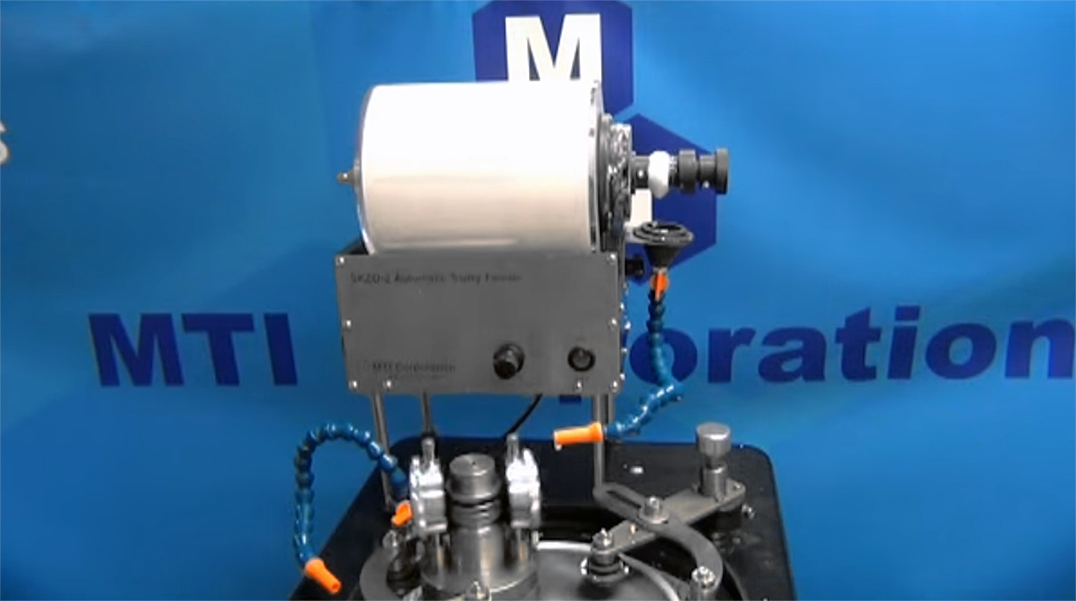

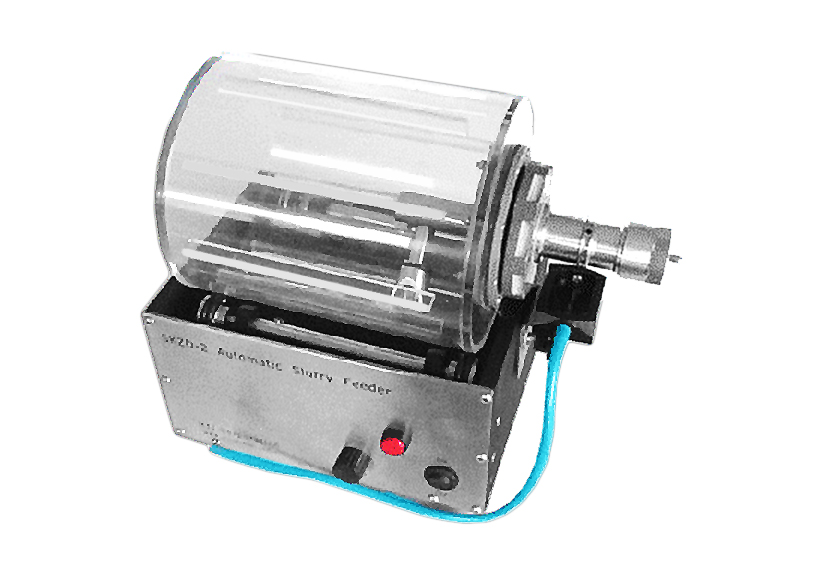

Optional Automatic Slurry Feeder



· Automatic slurry feeder SKZD-2 is not included

· The plastic rolling container can take the volume of slurry up to 1.0 Gallon (~3.8L) for a long time polishing

· Please click the left picture to order the feeder

·

Optional Parts

· 2" Polishing Fixture for Precision / Automatic Thinning and Polishing

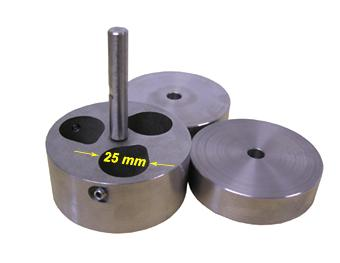

· Polishing Sample Holder with Three 1" Holes for high throughput polishing  (2 x 3 sample)

· 8'' high purity ceramic lapping plate

·

Warranty

· One year limited warranty with lifetime support

· Rusting and damage due to improper storage condition or maintenance are not covered by warranty

Compliance

· CE Certified

· NRTL certification is available at an extra cost

Package Dimensions

40" x 38" x 30"

Shipping Weight

185 lbs

Applications

Polishing machine applications
