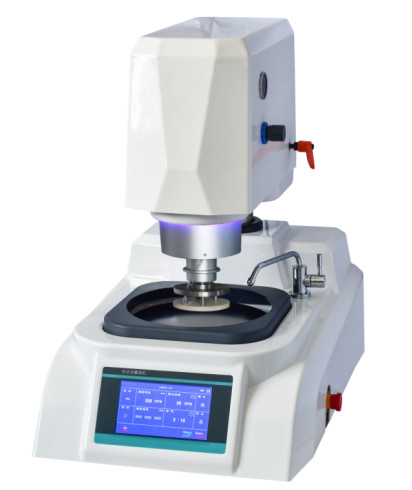

Vacuum Single Disc Automatic Polishing Machine with Diameter 254mm Disc

(Wafer, lens, glass and other thin film special grinding and polishing machine)

I. Product Overview

WMP-1BC is a single-disc automatic vacuum grinding and polishing machine that integrates pre-grinding, grinding and polishing. Equipped with vacuum components and vacuum suction cups, specifically grinding and polishing wafers, lenses, glass, and other thin products not easy to inlay, using single-chip computer technology through the touch screen for control, grinding and polishing disc using DC brushless motor drive, V-belt transmission, grinding head using stepper motor drive, synchronous belt transmission with smooth rotation, low noise, long life, safe and reliable features; according to user needs to adjust the grinding head and The rotational speed of the grinding head and disc can be adjusted according to the user's needs, the pressure can be set by itself, and the sample time can be set by itself to adapt to different needs; it has its own lighting system, which is convenient to take and put the sample; it has its own cooling device, which can cool the sample when grinding to prevent the sample from overheating and destroying the metallographic organization, and it is the ideal choice of metallographic sample making equipment for factories, scientific research units and laboratories of universities and colleges.

II. Main functions and features

1. The base adopts aluminum alloy material casting one piece molding, light quality and good shock absorption ability, anti-corrosion.

2. Shell is made of ABS blister, with novel appearance and anti-corrosion.

3. The faucet adopts full copper chrome plating process, good anti-corrosion.

4. Using touch screen control and display, easy to operate, clear and intuitive.

5. With the function of fixed speed and pressure at regular intervals.

6. Built-in nozzle dirt collection tank automatic cleaning.

7. Support infinitely adjustable speed or four-speed mode, more convenient speed adjustment.

8. The grinding head adopts electromagnetic clutch automatic locking, convenient and quick (optional).

9. Support grinding and throwing disc and grinding and throwing head single-action and linkage start, more flexible use

10. It can store more than 100 groups of grinding and polishing process parameters, easy to quickly call.

11. Magnetic disk design, support for rapid change of disk, replace the sandpaper and polishing fabric more quickly.

13. Equipped with fast sample suction cup, can be replaced at any time with different diameter suction cup.

14. The whole machine adopts DC brushless and stepping motor, with smooth rotation, low noise and long life.

15. Emergency stop button can be convenient and quick to stop the operation immediately, more secure.

III. Technical parameters

IV. Configuration list

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
