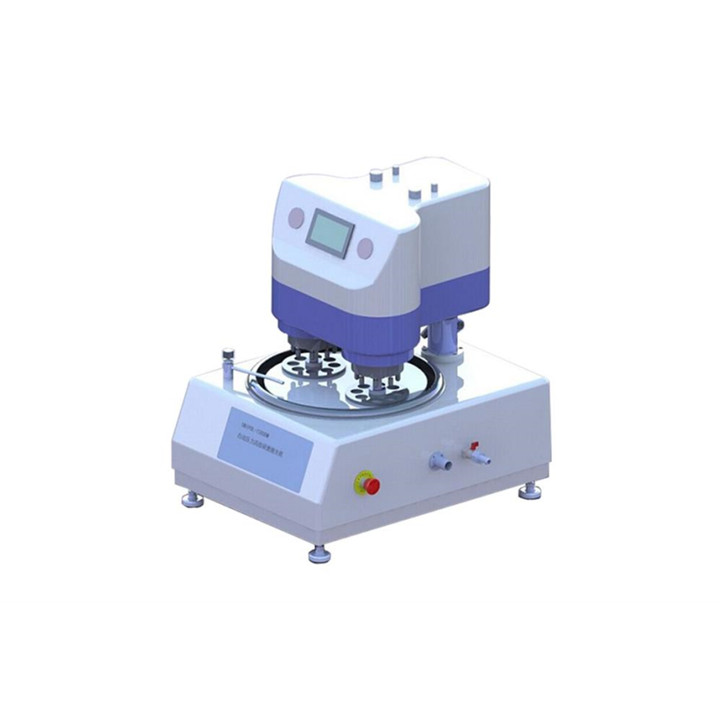

Features

· One 15" Dia. mater lapping plate (bottom) and two sample plate (top), which can hold 16 pcs sample (<25 mm Dia.) at one batch

· Color touch screen controller for polishing parameter settings

o Adjustable the pressing force (0.5 - 20 kg force) for different polishing conditions and materials

o Adjustable the speed for both sample loading plate and polishing plates

o Adjustable the time for polishing

· Automatic slurry feeding with controlled speed is available with an optional slurry feeder

Power

· 208 - 240 VAC, 50 / 60 Hz

Sample Loading Plate (Top)

· Size: 150 mm Dia. x 2

· Speed: 10 - 80 rpm adjustable (10 - 50 rpm recommended)

Polishing Plate (Bottom)

· Size: 380 mm Dia.

· Speed: 20 - 240 rpm adjustable (10 rpm increment)

Pressing Force

· 0.5 - 20 kgf (0.5 - 15 kgf recommended)

· 0.5 kgf increment

Control Panel

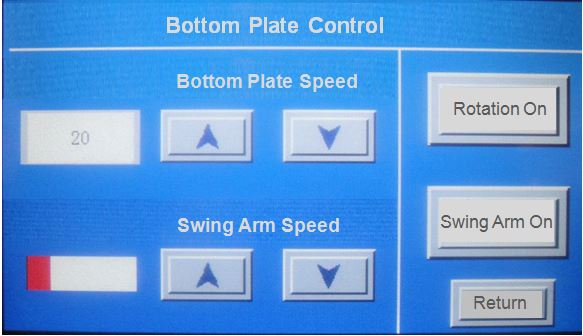

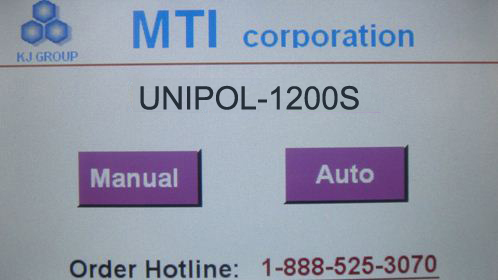

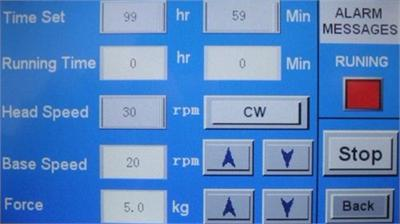

· Start menu (Pic #1), auto mode menu (Pic #2), manual mode menu (Pic #3)

·

Optional

· 4 channel automatic suspension slurry feeder is recommended

· Automatic mounting press for metallographic sample preparation (Click Pic #2 for details)

· Consumables for lapping/polishing, such as sandpaper discs (Pic #4), polishing pads (Pic #5), magnetic & buffer steel plates (Pic #6) and diamond polishing paste (Pic #7), can be ordered at MTI

Size

· 660 mm L × 460 mm W × 760 mm H

Net Weight

· 150 kg

Shipping Weight & Dimension

· 156 kg (345 lbs), 1220 mm L x 1020 mm W x 1090 mm H (48" L x 40" W x 43" H)

Compliance

· CE Certified

· NRTL certification is NOT available temporarily.

Warranty

· One year limited warranty with lifetime support

· Rusting and damage due to improper storage condition or maintenance are not covered by warranty
