Features

· Feeding rate is adjustable via a precision valve and rotating speed

· The plastic rolling container can take the volume of slurry up to 1.0 Gallon (~3.8L) for long time polishing

· Can feed any abrasive or polishing slurry with particle size < 40 microns

Working Voltage

AC 110V or AC 208~240V single-phase selectable

Rotation Speed

8~20 RPM

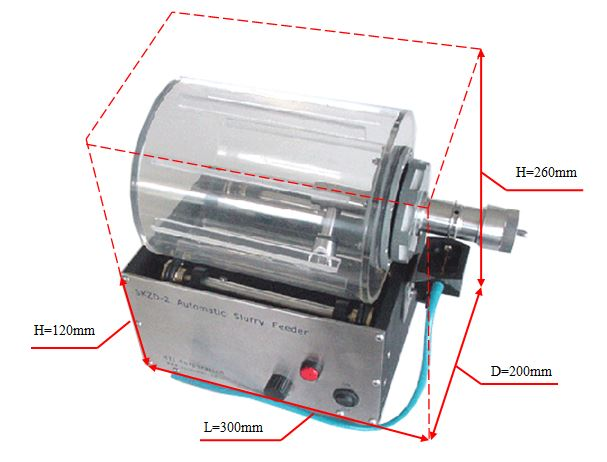

Dimensions of the control box and rolling container together

L300mm × D200mm × H260mm(Details please refer to the first picture below)

Dimensions of the control box

L300mm × D200mm × H120mm(Details please refer to the first picture below)

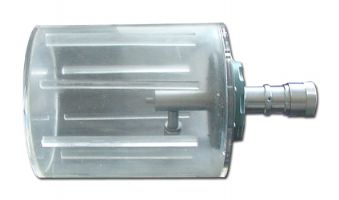

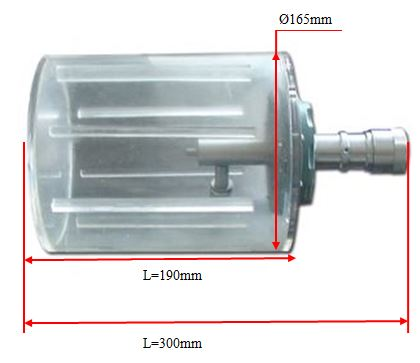

Dimensions of the rolling container

Ø165mm × L190mm (Details please refer to the second picture below)

Dimensions of shipment

18" x 14" x 15"

Weight of shipment

21 lbs

Product dimensions

Application Notes

· Mixing abrasive ( < 40 microns ) with D.I. water or lubricant, and rotating 10 minutes before opening the valve to feed slurry at the fastest speed.

· If your abrasive powder size > 40 microns,   we will enlarge feeding port diameter upon request

· A spare 1 gallon rolling slurry container is available at $495/ea
