Item No.:
TMAX-PC-2NPayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
15 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:

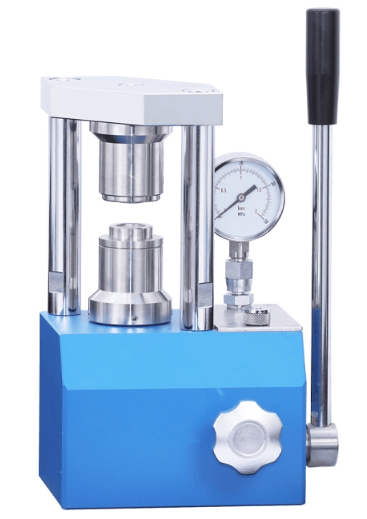

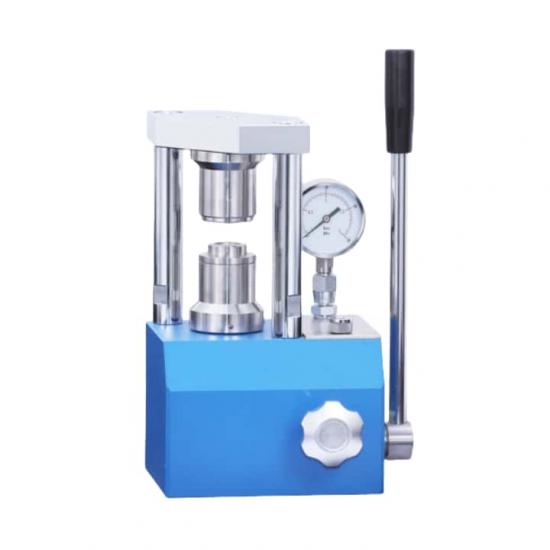

One year limited warranty with lifetime technical supportMini 2T 25Mpa Manual Button Battery Sealing Machine Optional Sealing Mold

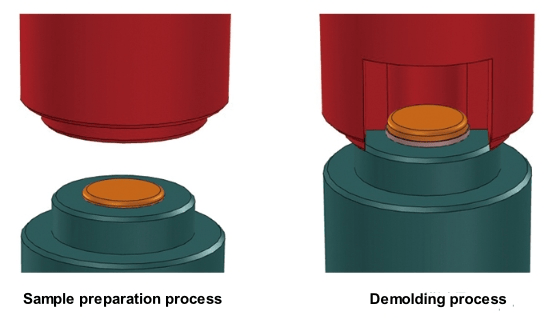

Schematic diagram of mold operation

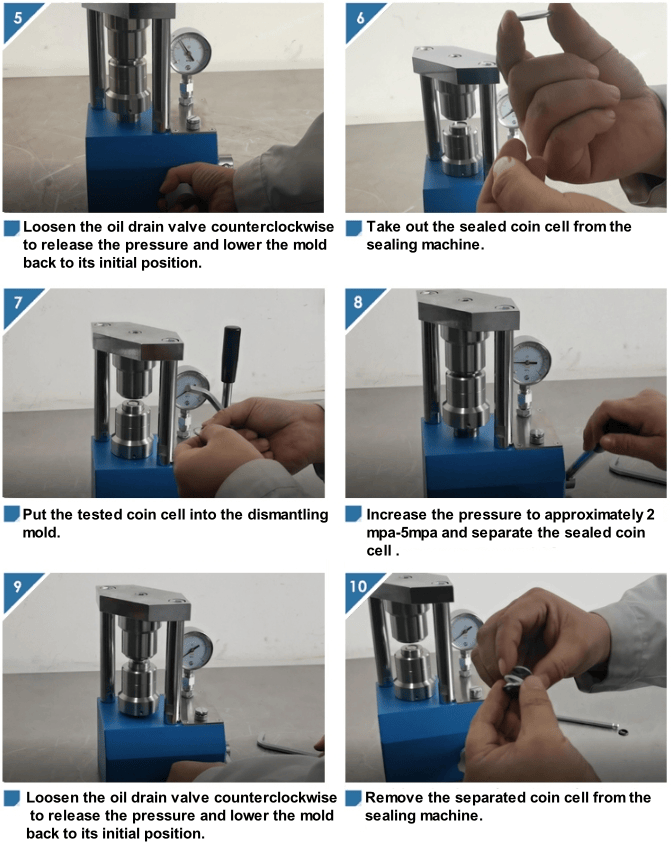

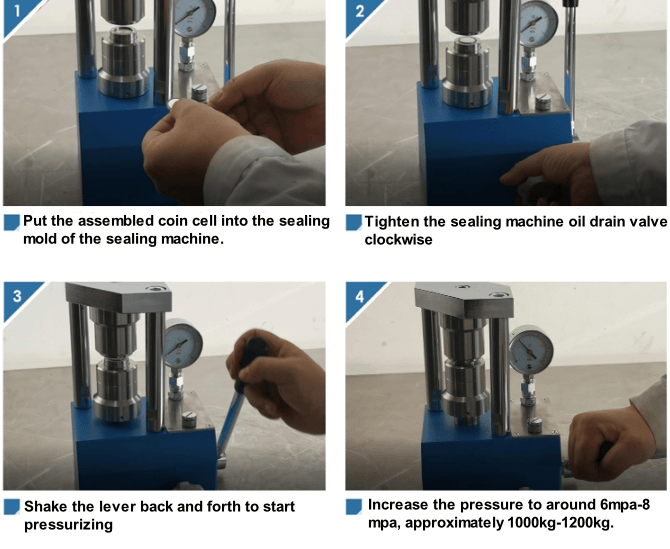

Operation procedure
Technical parameter
|
Instrument model |
PC-2N |
|
Pressure range |
0-2T(0-25MPa) |
|
Piston diameter |
Chrome plated cylinder Ф32mm(d) |
|
Overall structure of subject |
Utility model patent 201320040218.0 |
|
Manometer |
Pressure and intensity of pressure double scale display |
|
Standard mold |
Standard CR20 series package mold |
|
Sealing mold |
Optional CR16, CR20, CR24, CR30, etc |
|
Sealing pressure |
Generally between 0.8-1.2 tons |
|
Remover mold |
Optional CR16, CR20, CR24, CR30, etc |
|
Stripping pressure |
Generally within 0.4 tons |
|
Overall dimension |
210x165x290mm(LxWXH) |
|
Equipment weight |
12kg |
|
Size diagram |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
