Product Details

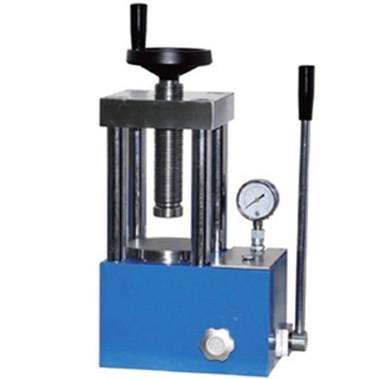

24T Lab Manual Hydraulic Press

Our Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on. In addition, this product can also be used with Fourier infrared spectrometer. Fluorescence spectrometer supporting sample preparation, can replace similar imported products.

It can also be used with Ca-Fe analyzer, infrared spectroscopy (IR) analyzer and X-ray fluorescence (XRF) analyzer to analyze the pressed samples.

1.Small size, light weight,No oil linkage, easy to carry.

2.Digital display pressure gauge 0.1MPa,Pressure control is more accurate.

3.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.

4.Special plunger, special custom sealed structure, good sealing effect, no oil leakage

5.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.

6.One main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.

7.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

8.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage.

Specification

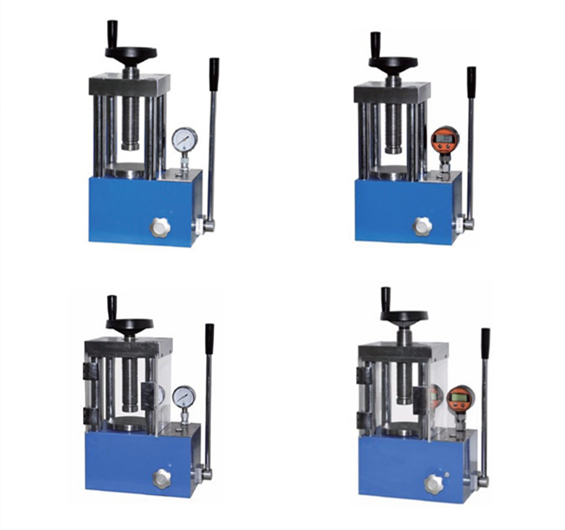

Model	SYP-24B	SYP-24BS	SYP-24BF		SYP-24BFS
Standard package	Analog gauge	Digital gauge	Analog gauge +Protection cover		Digital gauge+Protection cover
Pointer pressure gauge	Analog type, double scale display of pressure(Ton) and intensity of pressure(Mpa)
Digital gauge	Digital display, 0.00-40.00 MPa, accuracy 0.01 MPa (Optional)
Pressure range	0-24T(0-34MPa)
Piston diameter	Chrome plated cylinder φ95mm
Piston stroke	30mm(T)
Pressurization mode	Manual pressurization / manual slow pressurization
Pressure stability	≤1MPA/10Min
Overall structure	Integrative structure patented technology, no sealed connection of equipment, reduce oil leakage point
Workstation diameter	φ105mm
Number of columns	4 pillars
Protection cover	Without			With plexiglass protective cover
Working space	80×150mm(W×H)			120×160mm(W×H)
over dimension	245×175×415mm(L×W×H)			305×195×425mm(L×W×H)
Weight	42kg			60kg
NOTE	The work space can be customized to increase the height
