60T Lab Automatic Hydraulic Press with Programmable Controller

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-60S
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

60T Lab Automatic Hydraulic Press with Programmable Controller

Our Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on. In addition, this product can also be used with Fourier infrared spectrometer. Fluorescence spectrometer supporting sample preparation, can replace similar imported products.

Advantages

1.Small size, light weight,No oil linkage, easy to carry.

2.Digital display pressure gauge 0.1MPa,Pressure control is more accurate.

3.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.

4.Special plunger, special custom sealed structure, good sealing effect, no oil leakage

5.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.

6.One main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.

7.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

8.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage.

Specification

Product Name	Automatic Hydraulic Press
Model No.	TMAX-60S
Pressing range	0~60t
Pressing method	Programmable control
Pressure keeping time	0~999s
Pressure exchange	Programmable automatic change

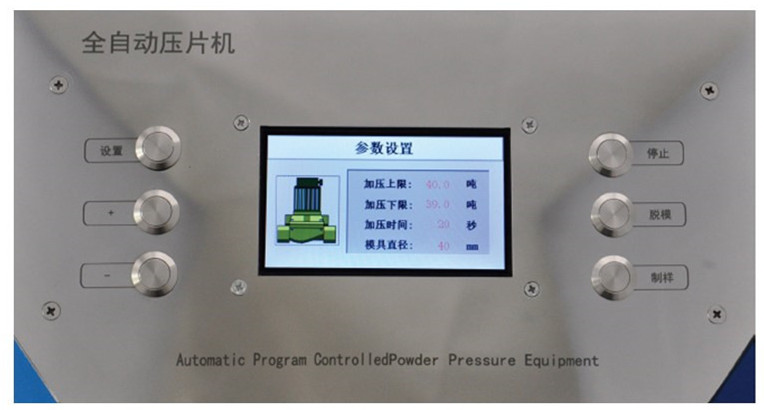

Panel	4.3”LCD Touch Panel
Limit switch	Oil tank reach limited height Pressure will relief automatically
Oil tank distance	50mm

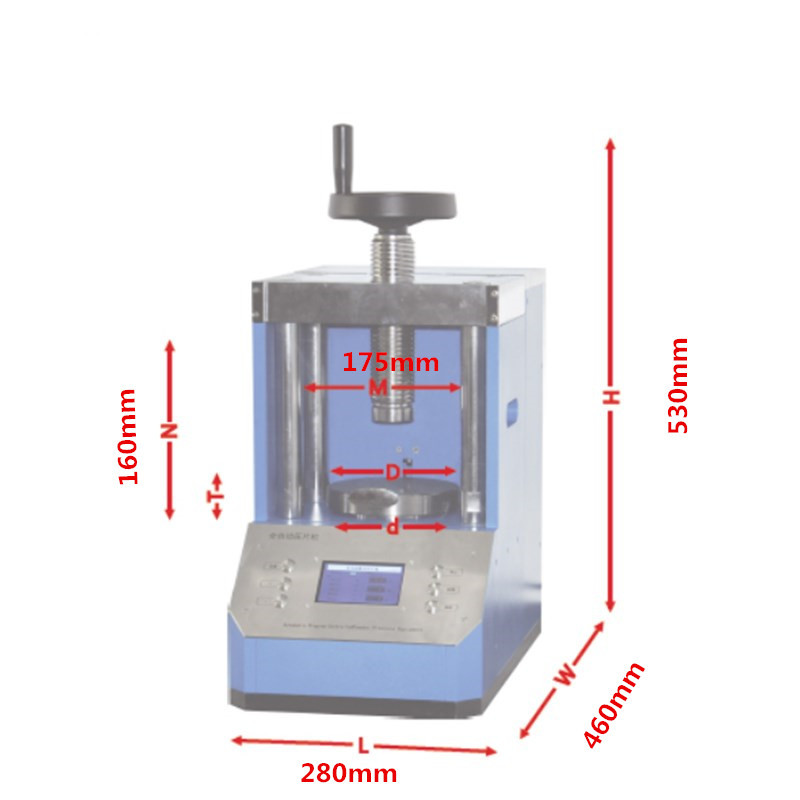

Space dimension	185*220mm
Outer dimension	300520580mm
Power supply	AC220V 50Hz
Gross weight	180Kg

Product Images

Pressure conversion

Actual pressure	System pressure	Double display pressure gauge
0.2[Tons]	1.25[MPa]
0.4[Tons]	2.51[MPa]
0.6[Tons]	3.77[MPa]
0.8[Tons]	5.03[MPa]
1[Tons]	6.28[MPa]
2[Tons]	12.5[MPa]
3[Tons]	18.8[MPa]
4[Tons]	25.1[MPa]
5[Tons]	31.4[MPa]
