High Pressure 60T Lab Manual Hydraulic Press with Plexiglass Protective Cover

High Pressure 60T Lab Manual Hydraulic Press with Plexiglass Protective Cover

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-SYP60EF
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

High Pressure 60T Lab Manual Hydraulic Press with Plexiglass Protective Cover



The powder tablet press can be used in sample preparation with calcium-iron analyzer, Fourier infrared spectrometer (IR), X-ray fluorescence spectrometer (XRF) and other analytical testing instruments; it has been widely used in scientific research, teaching, testing, catalysis, pharmaceuticals, and chemical industries. In addition, various powder materials such as potassium bromide (KBr), sodium chloride (NaCl), boric acid (H3BO3) and other powder materials can be pressed into shapes through specific tableting molds, and various types of For scientific research on specimens, cylinders, special-shaped bodies or other shapes; at the same time, the hydraulic press is also suitable for other workplaces that require corresponding pressure. It is used as a press to test the pressure resistance of various objects, etc., and is widely used , Can replace similar imported products.

The SYP series laboratory manual tablet press is a new generation of compression molding machine developed by TMAX to meet the current market demand and accept the suggestions and feedback of some college teachers. The machine has the characteristics of beautiful appearance, compact structure, small size, fast pressing, simple operation, convenient cleaning, etc.; it adopts national utility model patent technology, one-piece structure, oil cylinder, oil pool, main board, and piston are all on one main body. The sealed connection reduces the oil leakage point and reduces the oil leakage rate of the tablet press; the imported pressure sensor is used to greatly improve the pressure stability; the future cleaning and maintenance work of the hydraulic press is considered at the beginning of the design, which is more convenient The user maintains the equipment and is deeply loved by users at home and abroad.

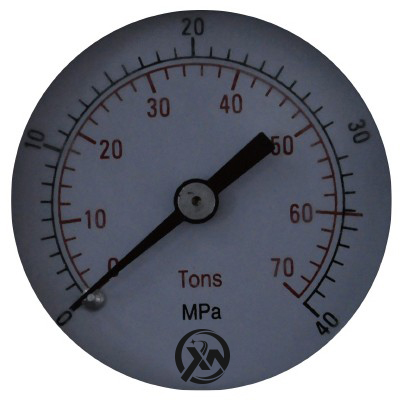

SYP-60EF type 60-ton tablet press is commonly used in the laboratory to prepare samples for fluorescence spectrometer, commonly known as fluorescence tablet press, equipped with appropriate X fluorescence special boric acid molds, steel ring molds, plastic ring molds, etc., can prepare fluorescence spectrometer testing Required test piece. The main difference between this model and the SYP-60EFS hydraulic press is that the SYP-60EF uses a pointer-type dual-scale pressure gauge, [pressure Tons] and [cylinder pressure MPa] dual-scale display, the pressure does not need to be converted to avoid mold over Pressure phenomenon, other parameters are the same as SYP-60EFS. All adopt imported pressure sensors with organic glass protective cover.


Specification


Model

SYP-60EF

SYP-60EFS

Pressure gauge type

Pointer type, double scale display of pressure and pressure

Digital display, high-precision digital display pressure gauge

Optional digital display

XNNETS digital display 0.00-40.00MPa/0.01MPa (only "S" type)

Pressure range

0-60T(0-34MPa)

Pressure conversion

1T=0.56Mpa

Piston diameter

Chrome plated cylinder φ150mm

Max. Piston stroke

50mm

Pressurization mode

Manual pressurization

Pressure stability

≤1MPA/10Min

Mold pressure calculation formula

The area of the oil cylinder ÷ the area of the mold × the reading of the pressure gauge = the actual pressure of the mold (Mpa)

the whole frame

One-piece structure

Protection function

With plexiglass protective cover

Workstation diameter

Φ160mm

Number of columns

4 pillars

Column space

185×250mm(W*H)

over dimension

405×240×565mm(L*W*H)

Weight

120kg

Standard configuration

*1 set of 60T tablet press, mold purchase; *The model with "F" is the plexiglass protective cover, and "S" is the digital pressure gauge.

Remarks: Some of the indicators are unique to TMAX, which can be customized or improved according to customer needs.



Pressure conversion


Model No.

SYP-60EF type powder tablet press pressure conversion table



Actual output pressure

Pressure gauge system pressure

Pressure gauge type

1 T

0.56 MPa



3 T

1.70 MPa

5 T

2.80 MPa

10 T

5.60 MPa

20 T

11.3 MPa

30 T

17.0 MPa

40 T

22.6 MPa

50 T

28.3 MPa

60 T

34.0 MPa

Pressure calculation formula

The area of the oil cylinder/the area of the mold × the reading of the pressure gauge = the actual pressure of the mold (Mpa)

Note

The system pressure (ie pressure gauge reading) should not exceed 34MPa=60T, otherwise it will affect the service life of the equipment


Product Images

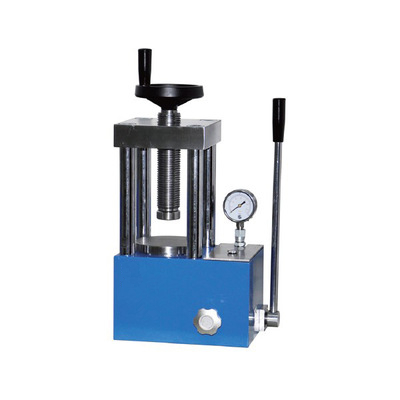

hydraulic press



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
