Laboratory Intelligent Automatic Powder Tablet hydraulic Press with Programmable Controller 20T to 100T

Laboratory Intelligent Automatic Powder Tablet hydraulic Press with Programmable Controller 20T to 100T

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-ZYP-TS
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

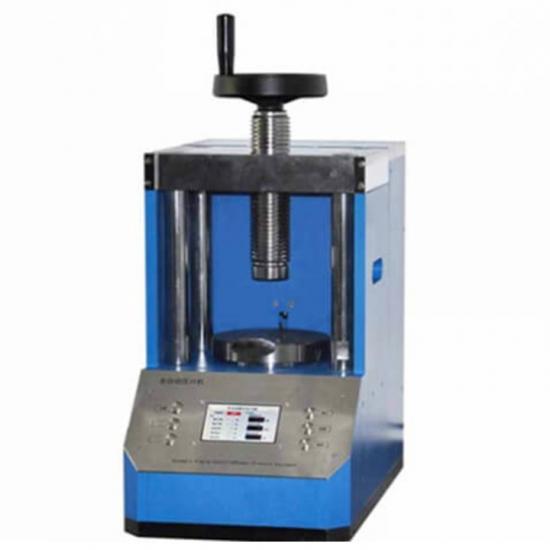

Laboratory Intelligent Automatic Powder Tablet hydraulic Press with Programmable Controller 20T to 100T








Novel ZYP-TS liquid display series


ZYP-TS series automatic tablet press adopts new national technology. Compared with DYS-TS series electric tablet press, the biggest advantage is that the pressure system does not need conversion, directly set the pressure tonnage, and increase the timing pressure relief and cylinder limit protection function. The whole series is equipped with safety protection device, which is favored by users. Intelligent automatic program pressure/slow pressure - program control pressure - automatic pressure maintenance, automatic pressure supplement, timing pressure relief, with stable performance, easy operation, strong practicability, high safety advantages, suitable for high-end laboratory use.

This machine is often used in calcium and iron analyzer, Fourier infrared spectrometer (IR), teaching, testing, catalysis, pharmaceutical, chemical and new materials research and development and other fields.



Parameter


Model

ZYP-20TS

ZYP-30TS

ZYP-40TS

ZYP-60TS

ZYP-100TS

Pressure range

1-20.0T

1-30.0T

1-40.0T

1-60.0T

1-100.0T

Voltage regulation accuracy

0.1t

0.1t

0.1t

0.1t

0.1t

Maximum cylinder stroke

30mm

30mm

50mm

50mm

50mm

Pressure way

Electric pressure

The sample preparation process

Intelligent automatic, program pressure/slow pressure - program pressure holding/pressure supplement - timing pressure relief - demoulding sampling

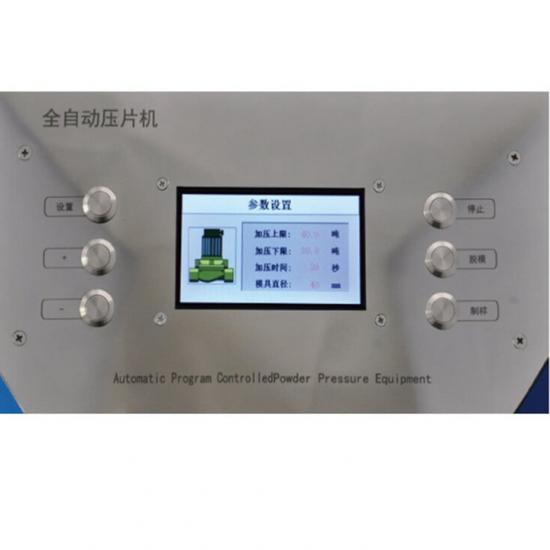

Display mode

XNNETs 4.3-inch LCD display

The time of holding pressure

999 minutes and 59 seconds

Mold pressure conversion

Program automatic conversion, digital display mold sample pressure (MPa)

Cylinder limit device

Automatic pressure relief protection when the cylinder rises to the limit height

Safety device

Steel plate protection with plexiglass protection door

Overall structure

One-piece structure, no sealing link, reduce oil leakage

Power supply

220V (50 hz / 60 hz)

Workspace

140*160mm

140*160mm

175*180mm

185*220mm

185*250mm

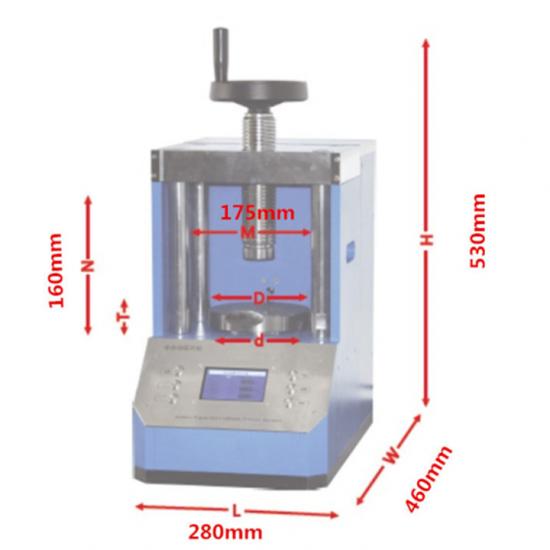

Overall dimensions

230*390*420mm

230*390*420mm

280*460*550mm

300*520*580mm

330*580*620mm

Weight

90kg

95kg

150kg

180kg

240kg

Description

A full automatic tablet press, mold optional!

Four pieces can be customized to increase the height, can be customized larger tonnage, larger space of the tablet press.




 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
