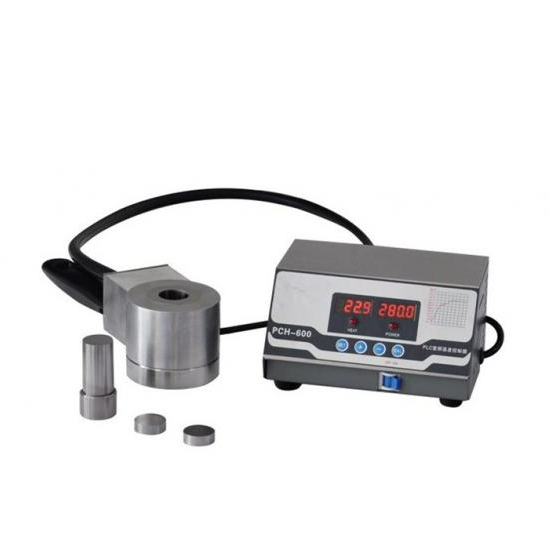

300℃ Lab Cylindrical Heating Mold For Pellet Formation

300℃ Lab Cylindrical Heating Mold For Pellet Formation

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164

  • Item No.:

    TMAX-DJR300
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

300℃ Lab Cylindrical Heating Mold For Pellet Formation




Heating mold is developed on the basis of common mold, which can heat and pressurize the mold samples through intelligent temperature controller. This kind of mould can be used to press powder or particle samples into cylindrical sheet or cylinder shape, and the specific mould size and shape can be customized according to customer requirements. It is suitable for rubber, plastic, leather, chemical industry, pigment, electronic appliances, textile, hardware and other fields. It is a complete set of equipment for engineering and technical personnel of colleges and universities and research institutes to carry out spectrum detection and qualitative analysis.


Standard configuration
Electric heating mold(customizable)  1 set
High temperature insulation board  1 set
Temperature controller 1 set


Optional
Hydraulic press machine
Water cooler→It is recommended to configure water-cooled machine if rapid cooling is required after mold heating.



Specification

Drawing of forming sample



Shape of compressible sample

Cylinder etc. other shapes can be customized

Mold heating temperature

RT-300℃(the mold heating temperature can be up to 500℃ at extra fees)

Thermostat type

PLC program digital temperature controller, RT - 600℃, accuracy 0.1℃

Power supply

220V/300W

Common mold specifications

Ф6Ф8Ф10Ф12Ф13Ф15Ф18Ф20Ф25Ф30...

The mold size can be customized

Mould material

Alloy tool steel: Cr12MoV

(hard alloy steel is available at extra fees)

Mould hardness

HRC60-HRC62

Mold cavity depth

45mm

Mold dimensions

Ф78×138mm

Mold weight

2.7kg

Standard configuration

Electric heating mould 1 set + heat shield 1 set + intelligent temperature controller 1 set (hydraulic press and water cooler are optional)

Calculation formula of die pressure

Area of oil cylinder / area of mould × pressure gauge reading = actual pressure of die.

Do not overpressure!

Note

The above indicators are for reference only, we can customize various specifications, materials, shapes of molds according to customer needs


Product Images

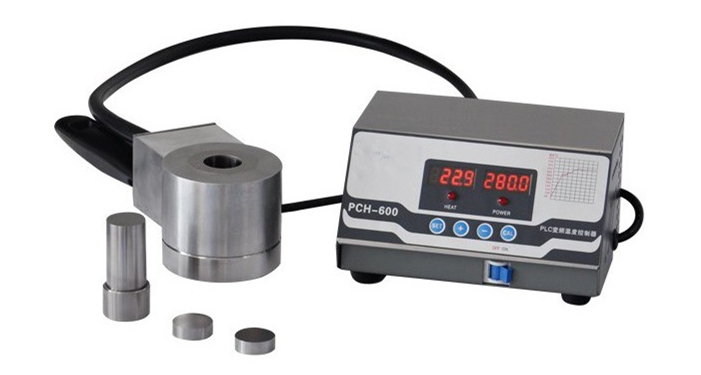

heating mold
