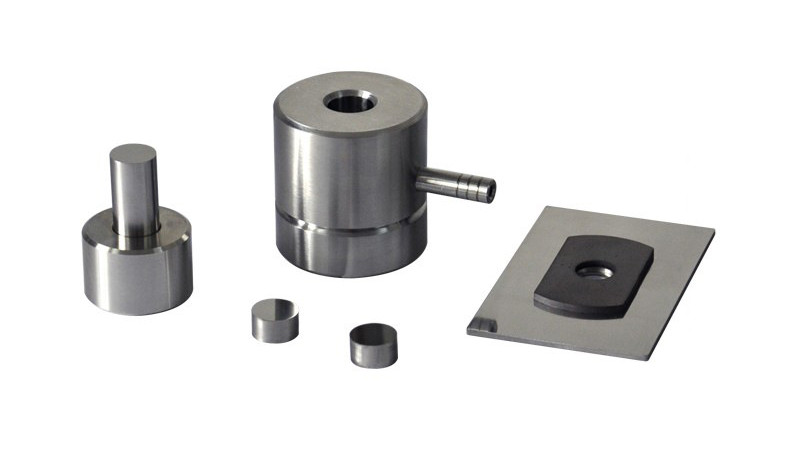

Lab Infrared Special Mold Without Mold Withdrawal


Infrared film removal mold means that the sample needs to be removed from the mold after it is pressed into shape, placed on the magnetic sample holder for testing, and then placed in the sample compartment of the infrared spectrometer for testing. The size of the tablet: diameter Ф13mm, the thickness of the tablet: 0.5-1mm . Special mold size, specifications, shape, material, etc. can be customized according to customer needs.
Non-retractable infrared molds are habitually called infrared special molds, which means that the sample does not need to be demolded after being pressed. The sample has good molding effect and high transmittance. The mold sample holder is directly placed in the sample compartment of the infrared spectrometer for testing. Sheet size: diameter Ф13mm, sheet thickness: 0.5-1mm. Special mold size, specifications, shape, material, etc. can be customized according to customer needs.


Specifications

Name

Infrared special mold

Actual drawing of molding sample



Compressible sample shape

 circular slice

Mold material

Japan·High Speed Tool Steel: ASSAB+17

Hardness of die indenter

HRC68-HRC70

Sample dimensions

Ф13mm

Mold cavity depth

20mm

Mold dimensions

Ф43×78mm

Mould weight

0.76kg

Calculation formula of die pressure

Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!

Mould remarks

Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold

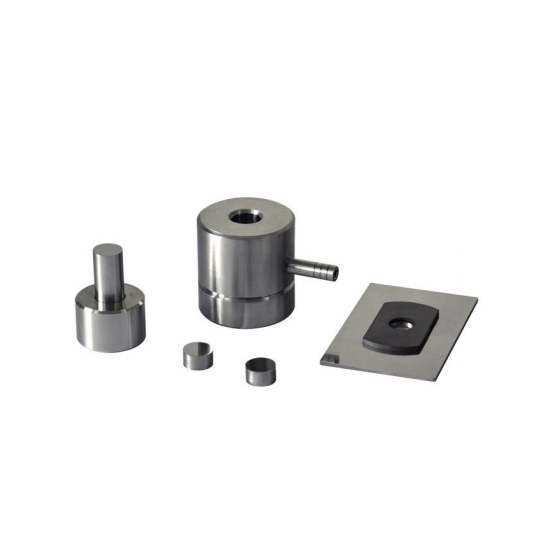

Product Images


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
