Lab Special Boric Acid Mold For X Fluorescence

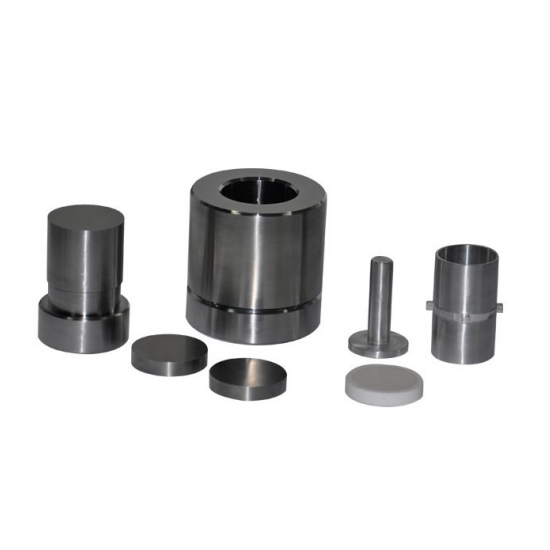

Lab Special Boric Acid Mold For X Fluorescence

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-BAM
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

Lab Special Boric Acid Mold For X Fluorescence


The special boric acid mold for X fluorescence is to wrap the sample with boric acid powder and then press the powder to form it, which is mainly used for sample preparation and molding of X fluorescence spectrometer samples. At present, there are two common boric acid mold specifications on the market. First, the most common size is: Ф40-Ф32mm, that is, the outer diameter is Ф40mm, the sample size is Ф32mm, 40-32=8, that is, the boric acid size of the wrapped sample is 8mm. The second is: Ф32-Ф24mm, that is, the outer diameter is Ф32mm, the sample size is Ф24mm, 32-24=8, that is, the size of the boric acid wrapped sample is also 8mm. The sheet thickness is 5-8mm high. Other special mold sizes, specifications, shapes, materials, etc. can be customized according to customer needs.


Specifications

Name

X fluorescence special steel ring mold

Actual drawing of molding sample



Compressible sample shape

Cylindrical

Common mold specifications

Ф outer 32-Ф inner 24mm or Ф outer 40-Ф inner 32mm

Mold material

Alloy tool steel: Cr12MoV

Hardness of die indenter

HRC60-HRC62

Mold cavity depth

45mm

Mould dimensions

Ф73×133mm

Mould weight

3.2kg

Calculation formula of die pressure

Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!

Mould remarks

Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold

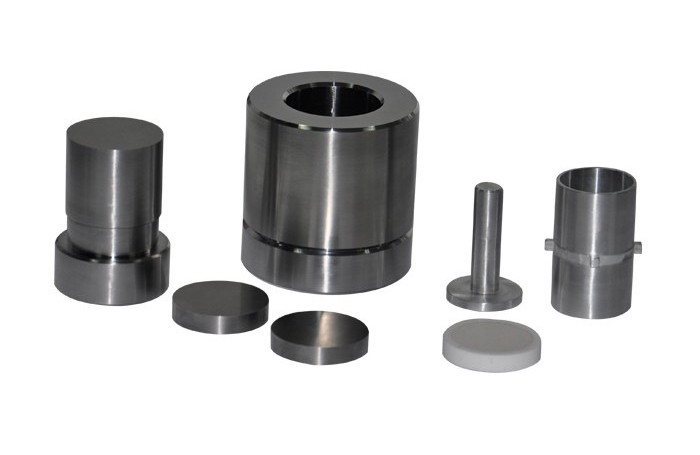

Product Images

die

 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
