Lab Alloy Tool Steel Cylindrical Mold


Cylindrical split molds are also called easy-to-retract combined molds. Generally, three inner cores are combined to form a cylindrical cavity. The cavity size is the size of the sample that is press-formed. The inner cores are sleeved and fixed as a whole. After the pressing work is completed, the three inner cores are separated by quickly disassembling the mold sleeve, and the pressed powder sample is directly sampled without going through the demolding process, avoiding damage to the sample during the demolding process. This type of mold is mainly used to press some powder samples that are not easy to form or unwind, or because the thickness of the pressed sample is too high, the open valve mold is more suitable for such requirements. The size of general laboratory molds: 3-80mm, common size: within 6-30mm, the size of the pressed sample is customized according to user needs. Special mold size, specifications, shape, material, etc. can be customized according to customer needs.


Specifications

Name

Cylindrical alloy steel mold

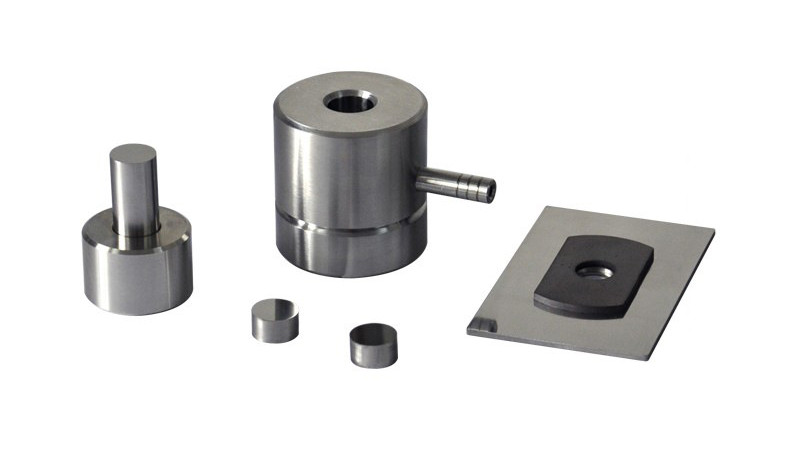

Actual drawing of molding sample



Compressible sample shape

Round slices, cylinders, etc.

Mold material

Alloy tool steel:Cr12MoV

Hardness of die indenter

HRC60-HRC62

Common mold specifications

Φ3Φ5Φ6Φ8Φ10Φ13Φ15Φ18Φ20Φ22Φ25Φ30Φ32mm etc.

Sample size (≤)

Ф10mm

Ф20mm

Ф30mm

Ф40mm

 Ф50mm

Ф60mm

Ф70mm

Ф80mm

Mold cavity depth

30mm

40mm

50mm

55mm

60mm

Mould dimensions

Ф43×93mm

Ф53×120mm

Ф73×133mm

Ф95×133mm

Ф115×150mm

Ф127×150mm

Ф153×180mm

Ф180×180mm

Mould weight

0.75kg

1.2kg

3.8kg

6.3kg

14kg

20kg

30kg

40kg

Calculation formula of die pressure

Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!

Mould remarks

Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
