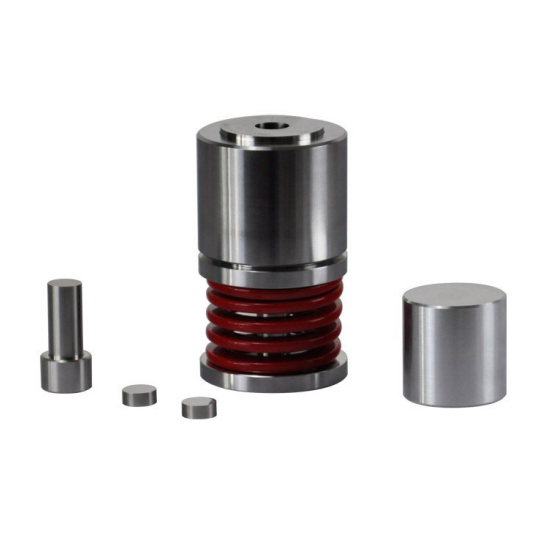

Lab Bidirectional Pressurized Cylindrical Mold

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-BPCM
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

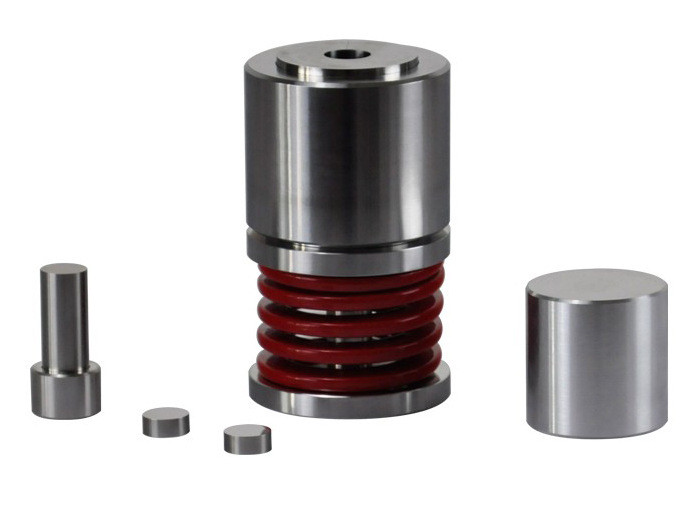

Lab Bidirectional Pressurized Cylindrical Mold

Bidirectional pressurized cylindrical mold presses up and down, and applies pressure in both directions, so that the density of the pressed powder sample is better, and it is suitable for users who have higher requirements for the density of the pressed powder sample. The two-way pressure is combined with the design of the opening mold, that is, the problem of the sample not forming due to the expansion and deformation of the sample during the unmolding process is solved by quickly disassembling the mold jacket. Common die size: Ф3-Ф20mm; other special die size, specifications, shape, material, etc. can be customized according to customer needs.

Specifications

Name	Bidirectional pressurized cylindrical mold
Actual drawing of molding sample
Actual drawing of molding sample
Compressible sample shape	Various cylindrical, square and other shapes, customized according to drawings
Common mold specifications	Ф6、Ф8、Ф10、Ф12、Ф13、Ф15、Ф18、Ф20mm etc.
Mold material	Alloy tool steel: Cr12MoV (can be customized hard alloy steel)
Hardness of die indenter	HRC60-HRC62
Mold cavity depth	40mm
Mould dimensions	Ф88×175mm
Mould weight	3.0kg
Calculation formula of die pressure	Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
Mould remarks	Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
