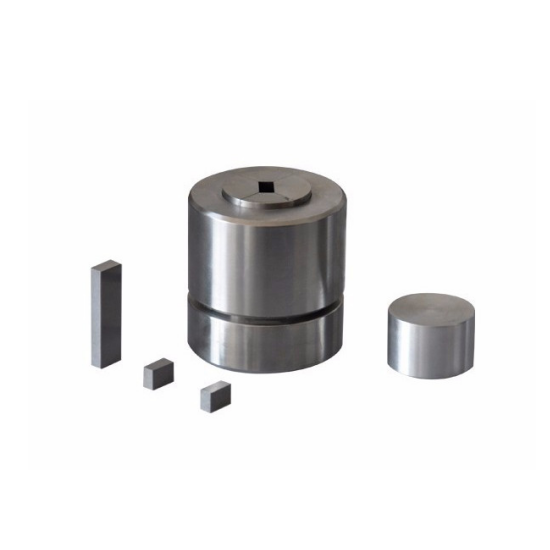

Lab Rectangle Mold


The square split mold is also known as the easy-to-retract combined mold, which is generally composed of four inner cores to form a rectangular or square cavity. The diameter of the cavity is the diameter of the sample that is pressed and passed through a circular sleeve. Sleeve and fix the four inner cores as a whole. After the pressing work is completed, the four inner cores are separated by quickly disassembling the mold sleeve, and the pressed powder sample is directly sampled without going through the demolding process, which avoids damage to the sample during the demolding process. This type of mold is mainly used to press some powder samples that are not easy to form or unwind, or because the thickness of the pressed sample is too high, the open valve mold is more suitable for such requirements. The size of the general laboratory mold press: 3-80mm, the common size: within 10-40mm, the press sample size is customized according to user needs. Special mold size, specifications, shape, material, etc. can be customized according to customer needs.


Specifications

Name

Rectangle opening mold

Actual drawing of molding sample

 rectangle opening mold

Compressible sample shape

Rectangle, square, triangle

Mold material

Alloy tool steel:Cr12MoV

Hardness of die indenter

HRC60-HRC62

Sample size (≤)

≤10mm

≤20mm

≤30mm

≤40mm

≤50mm

≤60mm

≤70mm

≤80mm

Mold cavity depth

30mm

40mm

50mm

55mm

60mm

Mould dimensions

Φ53×120mm

Φ95×133mm

Φ127×150mm

φ180×180mm

Φ73×133mm

Φ115×133mm

Φ153×150mm

Φ200×180mm

Mould weight

1.2kg

3.6kg

7kg

14kg

20kg

30kg

40kg

50kg

Calculation formula of die pressure

Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!

Mould remarks

Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold

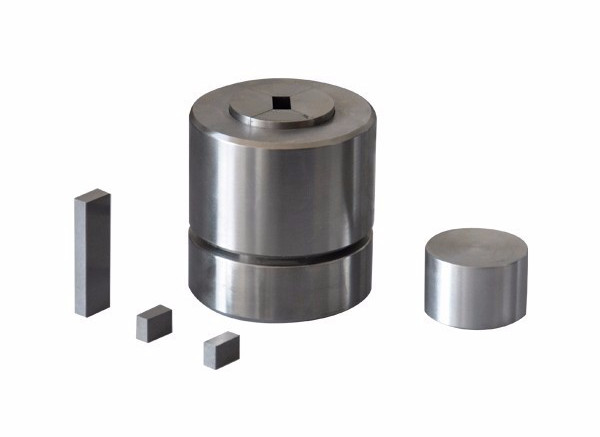

Product Images


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
