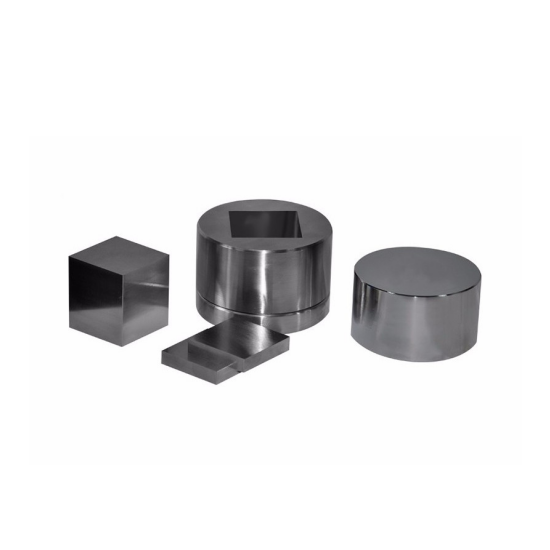

Lab Square/Rectangular Mold

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-OSM
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

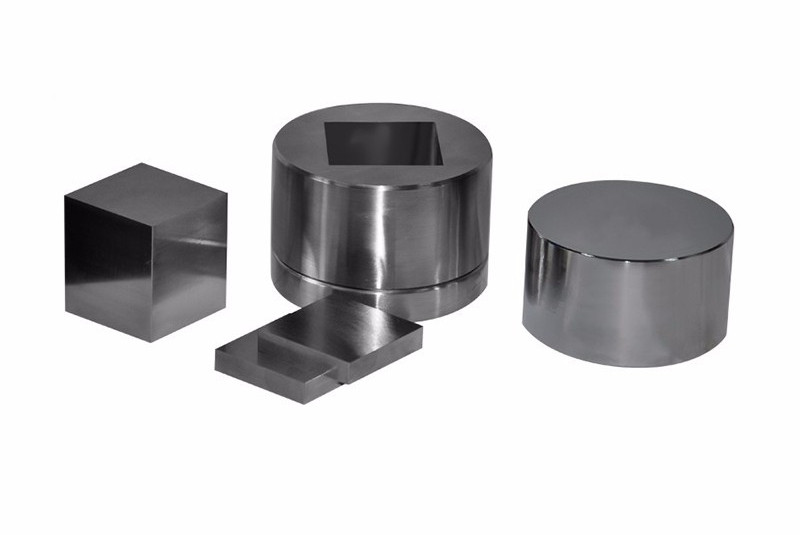

Lab Square/Rectangular Mold

Ordinary square molds are suitable for some easy-to-shape slender powder samples. The mold can be used to form rectangular, square, and strip samples that meet customer requirements for laboratory research and analysis. General die size: 3-80mm, common size: 5-40mm, press sample size is customized according to user requirements. Special mold size, specifications, shape, material, etc. can be customized according to customer needs.

Specifications

Name	Ordinary Square Mold
Actual drawing of molding sample

Compressible sample shape	Rectangle, long bar, square, triangle, etc.
Mold material	Alloy tool steel:Cr12MoV
Hardness of die indenter	HRC60-HRC62
Sample size (≤)	≤10mm	≤20mm	≤30mm	≤40mm	≤50mm	≤60mm	≤70mm	≤80mm
Mold cavity depth	20mm	30mm	40mm	45mm	55mm	60mm	65mm	65mm
Mould dimensions	Ф43×93mm		Ф73×133mm		Ф98×150mm		Ф138×180mm
	Ф53×120mm		Ф88×150mm		Ф118×180mm		Ф158×180mm
Mould weight	0.65kg	1.2kg	2.4kg	4.8kg	7.3kg	11.4kg	20kg	30kg
Calculation formula of die pressure	Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
Mould remarks	Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
