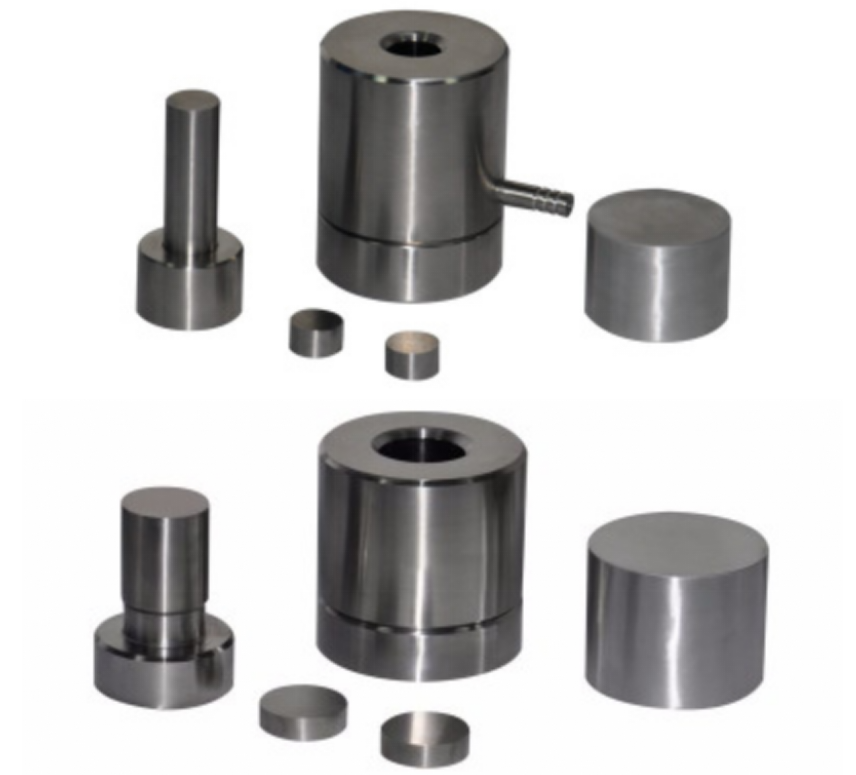

One year limited warranty with lifetime technical supportLab Cylindrical Press Mold
The cylindrical mold is a common tablet pressing mold in the laboratory powder sample pressure molding, which is suitable for the molding and testing of most powder samples in the laboratory. The mould is exquisite in workmanship, reasonable in design and convenient in operation. With the use of tablet press, powder sample materials can be pressed into shape, such as circular sheet, cylinder, etc. the sample size depends on the mold size ordered by users; the mold is widely used in battery, superconductor, cement, ceramics, catalysis, silicate, powder metallurgy, sea mud analysis, biochemical analysis and new material sample preparation research and development. In addition, the product can also be used with calcium iron, infrared, X-ray fluorescence and other testing instruments.
Specifications
Actual drawing of molding sample
Compressible sample shape
Circular sheet, cylinder, etc

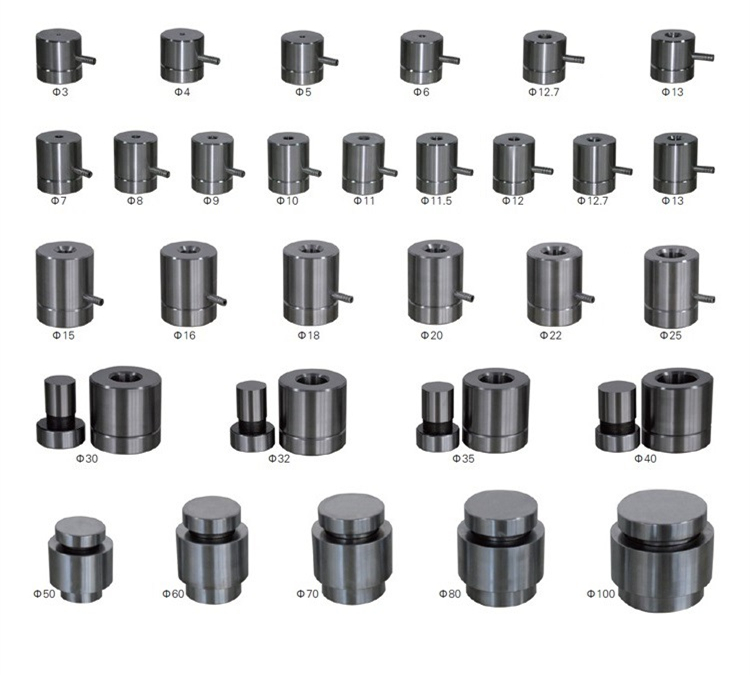

Common mold specifications
Φ3,Φ5,Φ6,Φ8,Φ10,Φ13,Φ15,Φ18,Φ20,Φ22,Φ25,Φ30,Φ32,Φ40mm
Mold material
High-speed steel ASSAB+17
Alloy tool steel:Cr12MoV
Hardness of die indenter
HRC68-HRC70
HRC60-HRC62
Sample size (≤)
φ6mm
φ13mm
φ25mm
φ40mm
φ50mm
φ60mm
φ70mm
φ80mm
Mold cavity depth
20mm
30mm
40mm
45mm
55mm
60mm
65mm
65mm
Mould dimensions
φ43×78mm
φ53×120mm
φ88×150mm
φ108×180mm
φ43×93mm
φ73×133mm
φ98×180mm
φ118×150mm
Mould weight
0.55kg
0.67kg
1.34kg
2.9kg
5.1kg
7.3kg
9kg
11.5kg
Calculation formula of die pressure
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
Mould remarks
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold

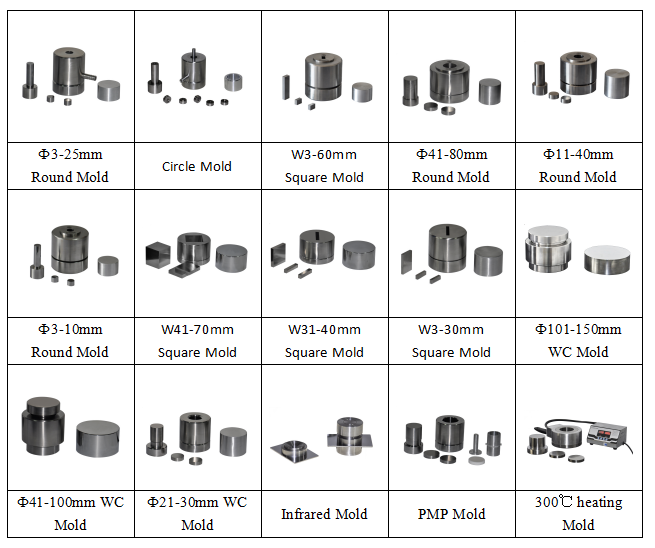

Product Images
