20T-100T Lab Automatic Hydraulic Press with Programmable Controller

20T-100T Lab Automatic Hydraulic Press with Programmable Controller

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-ZYP
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

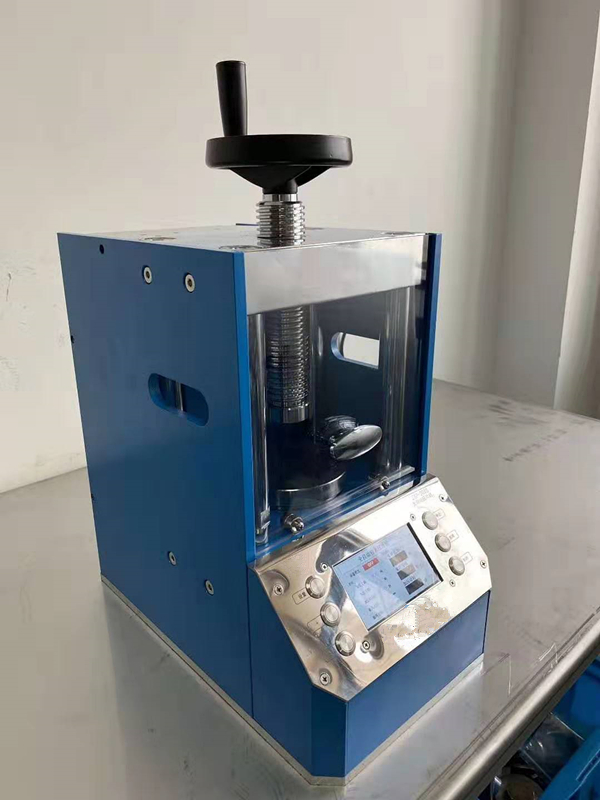

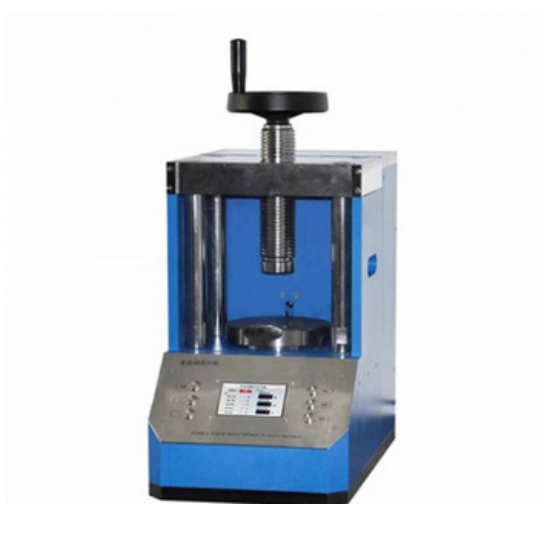

20T-100T Lab Automatic Hydraulic Press with Programmable Controller


Based on the existing manual and electric powder compactors and the proposal of some college customers, our company has designed and developed a new type of automatic powder compactor to meet the requirements of the times. At present, the tablet compactor has been put into use in the market with appropriate mold accessories, which can meet the requirements of customers in powder pressure forming and is widely used It is an alternative product of the existing manual and electric tablet press, which is deeply loved by users.



1. New type fully automatic, program pressurization, program pressure maintaining, automatic pressure relief, intuitive operation, beautiful appearance, etc., suitable for high-end laboratory use.
2. The automatic conversion display of mould pressure does not need manual conversion, so as to avoid the damage of mould due to operation error, and the operation is more humanized.
3. A limit protection switch is set to automatically relieve the pressure when the oil cylinder rises to the limit height, so as to avoid the damage of the machine and oil leakage caused by the over position of the oil cylinder.

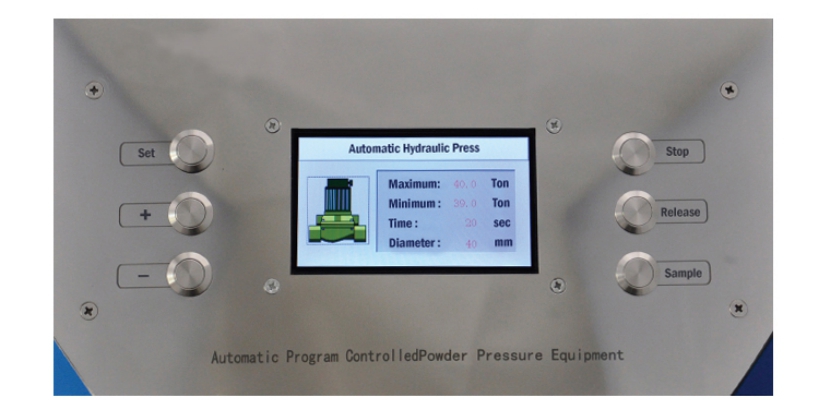

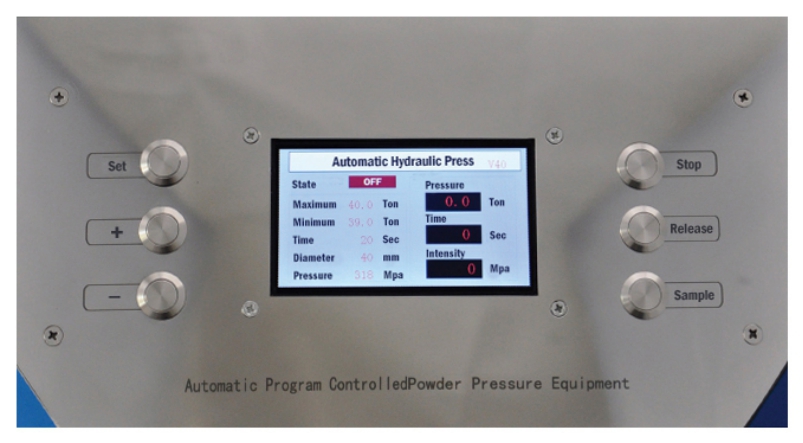

4. Large screen liquid crystal display, more intuitive operation, clearer display, convenient for user setting and operation.


Specification

Model

ZYP-20TS

ZYP-30TS

ZYP-40TS

ZYP-60TS

ZYP-100TS

Pressure range

0-20.0T

0-30.0T

0-40.0T

0-60.0T

0-100.0T

cylinder stroke

30mm

30mm

50mm

50mm

50mm

Display mode

4.3-inch LCD

Pressurization process

Intelligent full-automatic, program slow pressure / pressure supplement - automatic pressure maintaining - timed pressure relief

Holding time

0-999.59 (min. seconds)

Pressure conversion

Automatic conversion and display of die bearing pressure (Mpa) program

Cylinder protection

When the oil cylinder rises to the limit height, the pressure will be released automatically, and the oil cylinder will be protected to prevent over position

Equipment protection

Steel plate protection, equipped with plexiglass protective door

Device power supply

220V50Hz/60Hz

Workspace

140×160mm

140×160mm

175×180mm

185×220mm

185×250mm

Outline size

230×390×420mm

230×390×420mm

280×460×550mm

300×520×580mm

330×580×620mm

Machine weight

90kg

95kg

150kg

180kg

240kg

Product Images

automatic hydraulic press







 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
