300℃ 24T Lab Small Electric Hydraulic Hot Press with Double Heating Plate

300℃ 24T Lab Small Electric Hydraulic Hot Press with Double Heating Plate

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164

  • Item No.:

    TMAX-HEAT24T
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

300℃ 24T Lab Small Electric Hydraulic Hot Press with Double Heating Plate


Our tablet presser has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on.In addition, this product can also be used with Fourier infrared spectrometer.Fluorescence spectrometer supporting sample preparation, can replace similar imported products.


Advantages

a.Small size, light weight,No oil, easy to carry.

b.High speed steel imported from Japan

c.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

d.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.

E.Special plunger, special custom sealed structure, good sealing effect, no oil leakage

F.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.

G.One one main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.

H.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

I.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage


Specification

Product Name

Lab Pressing Machine

Type

TMAX-Heat24T

Pressure range

0-24T (0-34 MPa)

Piston diameter

Chrome cylinder 95mm OD

Thermostat temperature control

RT-600℃

Abrasive heating temperature

RT-300℃

Temperature control accuracy

0.1℃

Insulation method

Imported heating plate

Cooling method

Rapid cooling water

Mold cavity size

<20mm

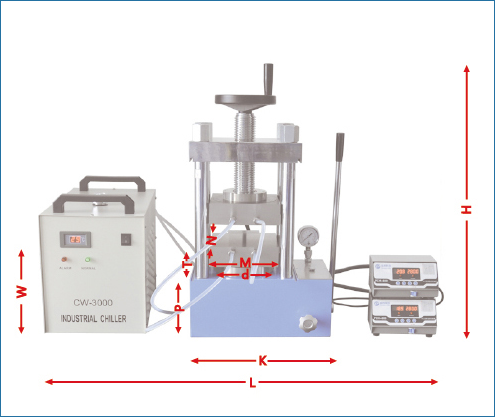

Main engine Size

254*175*415mm(K*P*H)

over dimension

800*470*415mm(L*W*H)

Power

220V 50Hz

Main engine weight

47kg

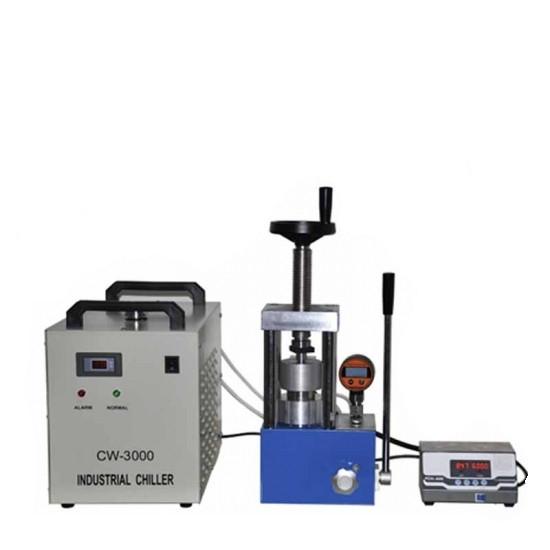

Product Images

heat press

Actual pressure

System pressure

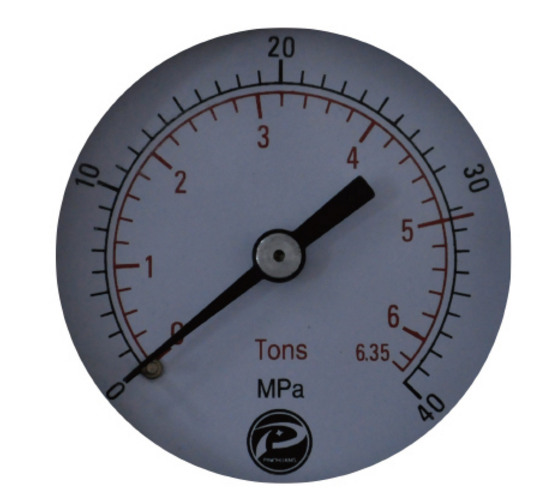

Double display pressure gauge

0.2[Tons]

1.25[MPa]



0.4[Tons]

2.51[MPa]

0.6[Tons]

3.77[MPa]

0.8[Tons]

5.03[MPa]

1[Tons]

6.28[MPa]

2[Tons]

12.5[MPa]

3[Tons]

18.8[MPa]

4[Tons]

25.1[MPa]

5[Tons]

31.4[MPa]

It is suggested that the general system pressure should not exceed 35MPa, otherwise it will affect the service life of the equipment.



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
