Product Details

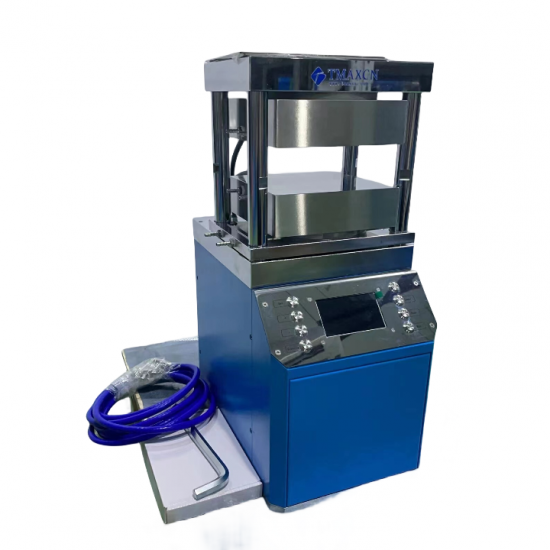

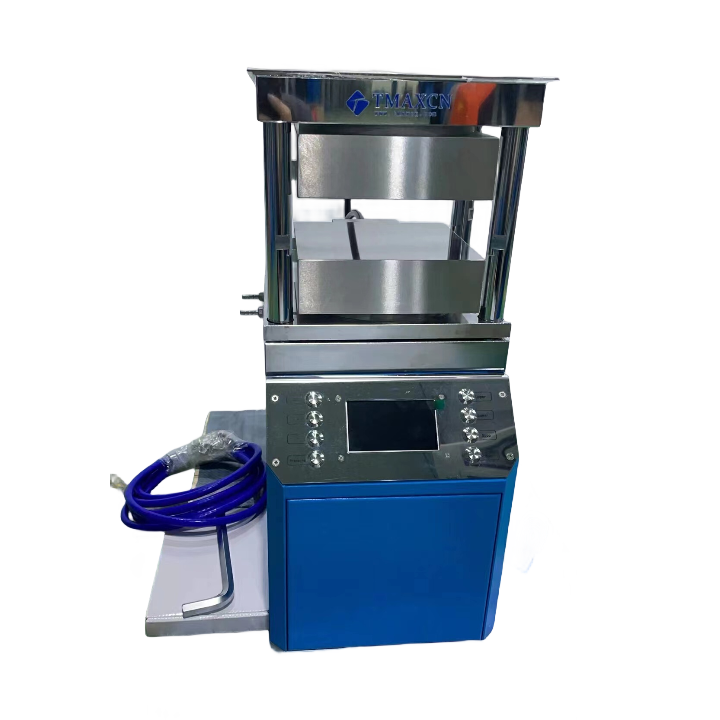

300℃ 25T Lab Automatic Hydraulic Press with Widened Double Heating Plate

RYJ-600Z series electric heating tablet press is a fully automatic, integrated, widened hot press developed by our company in accordance with market demand, based on the original manual hot press and split hot press . This hydraulic machine is widely used to meet the needs of some customers for large tonnage pressure and large area sample heating. The hot press is mainly used in some laboratories and units that need to perform high temperature and high pressure sample preparation or testing on powder samples, granular samples, plastic films and other solid samples. The particles or powders of the samples are heated and pressurized to make them chemically stable It has the advantages of improved performance, not easy to break and good for cutting and preservation. It is an ideal supporting equipment for the engineering and technical personnel of various universities, colleges and research institutes to carry out spectroscopy detection and analysis.

Specification

Model	RYJ-600Z1	RYJ-600Z2	RYJ-600Z3	RYJ-600Z4
Pressure range	1-25T/0.1t		1-30T/0.1t	1-50T/0.1t

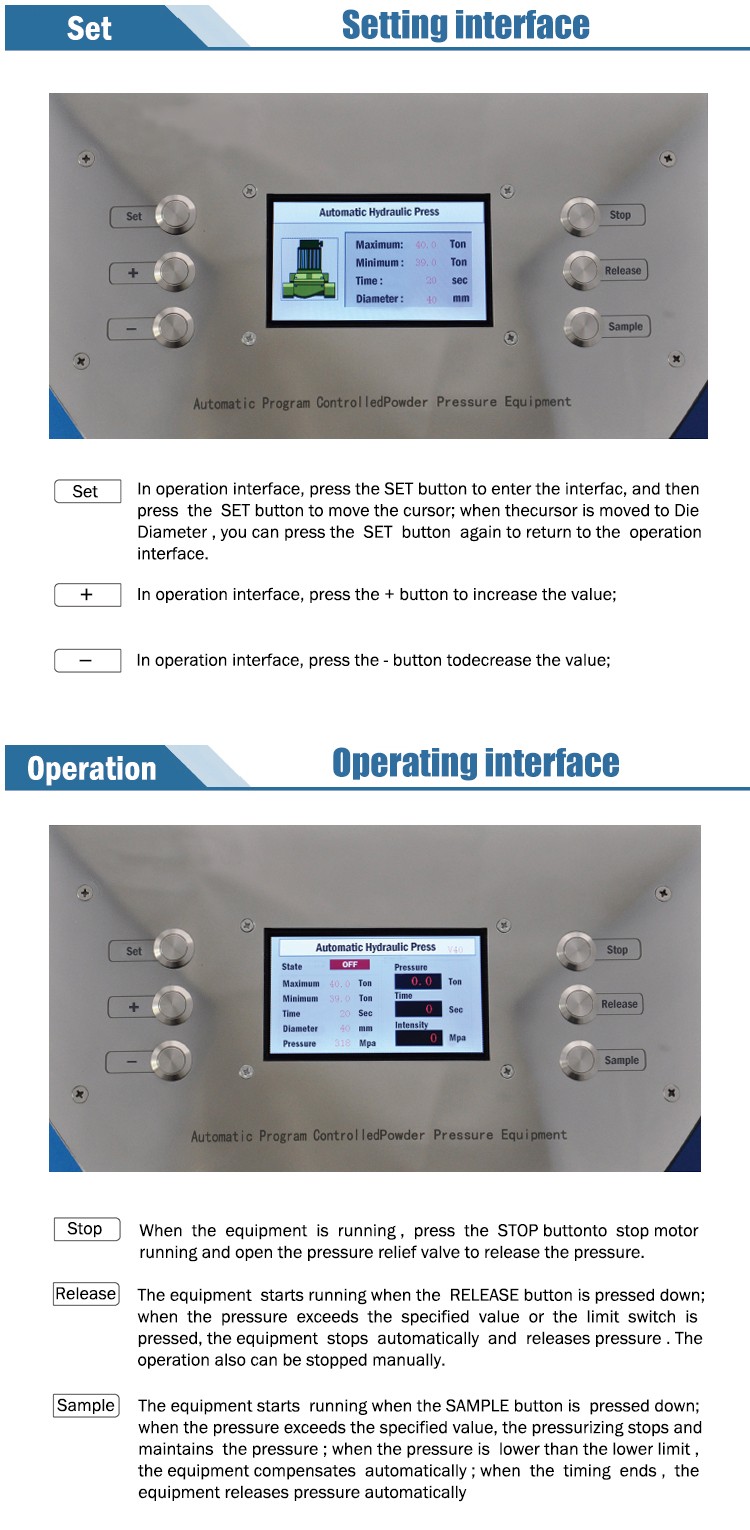

Pressurization process	XNNETS fully automatic, program pressurization/slow pressurization-program pressure maintenance-program pressure compensation-timing pressure relief
compress time	0-999.59(min, s)
Temperature control range of thermostat	RT -600℃
Thermostat display accuracy	0.1℃
Mold heating temperature	RT-300.0℃
Insulation method	Imported insulation board
Mold cooling method	Rapid cooling by water cooling cycle (optional for water cooler)
Heating mold size	80×180mm	200×200mm	300×300mm	400×400mm
Dimension	280×420×620mm	280×420×620mm	400×500×720mm	500×600×760mm
Power	220V/2000W	220V/2000W	220V/3000W	220V/6000W
Weight	About 150kg	About 160kg	About 300kg	About 400kg
structure	Integrated structure, fully automatic program control pressure and temperature
Heating mold type	Double plate heating up and down
Number of heating mold	Two heating plates up and down, polished surface
