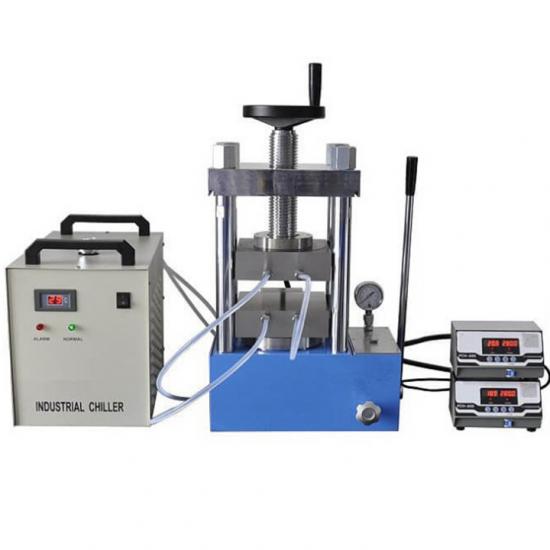

Lab Double Widen Plate Hydraulic Hot Hydraulic Press 300C 500C



New RYJ-600D Series


New RYJ-600D series double plate hot pressing machine compared with RYJ-600C series the biggest difference this machine adopts widened panel design, can meet the hot pressing experiment of larger samples, equipped with two temperature controllers, can separately control the temperature of two plates heating, pressing film thickness up to 50um-500um, suitable for polymer materials, Plastic film and rubber products and other materials of experimental research, can also be used as a small flat vulcanizing instrument, suitable for rubber, plastic, leather, chemical, pigment, electronic appliances, textiles, hardware and other fields







 Main technical parameters


Product Name

RYJ-600D1

RYJ-600D2

RYJ-600DG1

RYJ-600DG2

Pressure range

0-30T(0-31.5Mpa)

Pressure conversion

1t-1.05Mpa/1Mpa=0.95t

Piston diameter

Dia110mm chrome plating cylinder

Maximum piston stroke

40mm

Type of pressure gauge

Pointer; Pressure, pressure double scale display; the range 0 to 40

mpa; accuracy of 1 mpa

Pressure mode

Manual pressure

Temperature controller type

PLC programmed temperature controller (double temperature

controller)

Temperature control range

RT-600.0℃/0.1℃

Type of hot pressing die

Double die heating up and down (polished surface)

Heating die size

180*180mm

200*200mm

180*180mm

200*200mm

Temperature of hot pressing

die

RT-300℃

RT-500℃

Heating die cooling method

Cooling by natural or water cooler

Cooling by natural or water cooler

Equipment insulation Mode



Imported heat shield

Imported heat insulation board + stainless steel water cooling cycle heat insulation board

Power

220V/1000W

220V/2000W

Overall structure

Split structure

Size of  the machine

405*260*525mm(The weight of the water cooler is not included)

Weight

About 80-200kg

Model specification

Water cooling machine (optional)

Digital pressure gauge (optional), accuracy of 0.01Mpa, more accurate pressure control
