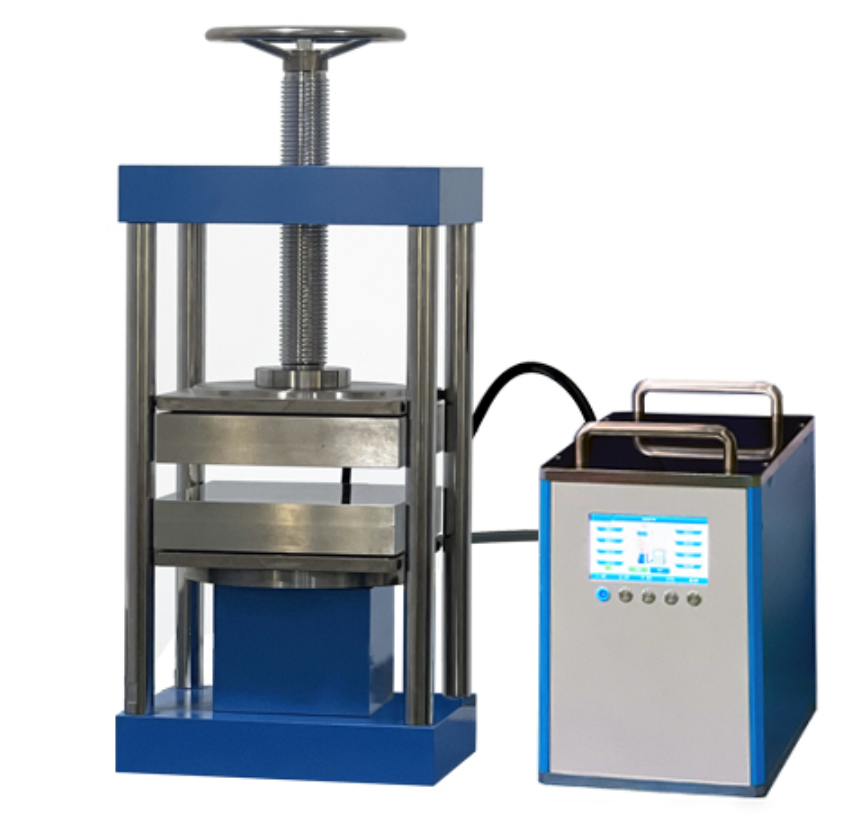

Widened Double Flatbed Heat Hydraulic Press 300C 500C for Powder Pellet Pressing

Widened Double Flatbed Heat Hydraulic Press 300C 500C for Powder Pellet Pressing

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-RYJ-600F
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

Widened Double Flatbed Heat Hydraulic Press 300C 500C for  Powder Pellet Pressing




Features


RYJ-600F series double plate heat press is a split type and widened heat press developed by our company based on the original manual heat press based on the market demand. This machine meets the needs of customers who need large-tonnage and large-area sample heating, and can be used for high-temperature and high-pressure compression experiments on powder samples, granular samples, plastic films, rubber products and other samples.









Parameter


Device model

RYJ-600F3

RYJ-600F4

RYJ-600DF3

RYJ-600DF4

Pressure range

0-30T(0-31.5Mpa)

0-40T(0-30Mpa)

1-30.0T/0.1t

1-40.0T/0.1t

Pressure conversion

1T-1.05Mpa

1T=0.75Mpa

No conversion required

Pressure gauge type

Pointer pressure gauge

4.3 inch LCD screen display

Pressurized method

Manual pressurization/compensation

Electric pressurization - program pressure maintaining/replenishing pressure - timing pressure relief

Compress time

Manual

0-999.59mins/sec.

Thermostat type

XNNETS PLC Program temperature controller

Thermostat temperature control range

Room temperature-600°C,accuracy 0.1°C

Mold heating temperature

Room temperature-300.0°C(500°C high temperature mold can be customized)

Hot pressing mold size

300*300mm

400*400mm

300*300mm

400*400mm

Power

220V/2500W

220V/5000W

220V/3000W

220V/6000W

Host size

380*350*600mm

500*480*650mm

380*350*600mm

500*480*650mm

Mold cooling method

Water cooling cycle rapid cooling (water cooler optional)

Insulation of equipment

Imported heat insulation board

The whole frame

Split structure

Model Description

Customized products, the above data are for reference only! Various heat presses can be customized according to user needs






 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
