300℃ 12T Lab Electric Hydraulic Hot Press with Double Heat Plate

300℃ 12T Lab Electric Hydraulic Hot Press with Double Heat Plate

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-RYJ-600E
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

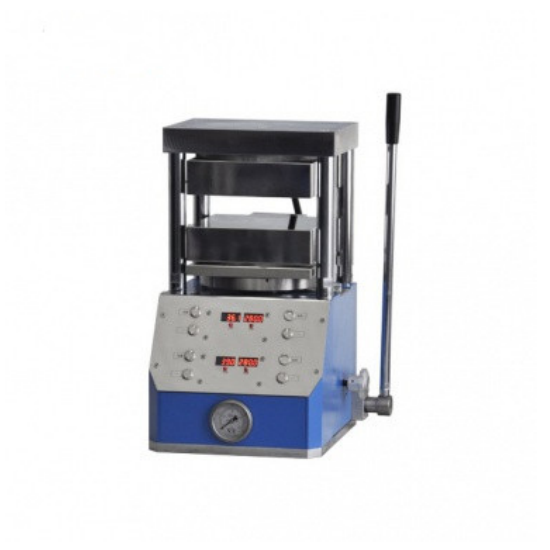

300℃ 12T Lab Electric Hydraulic Hot Press with Double Heat Plate


RYJ-600E series electric heating tablet press is a brand-new integrated, small tonnage, widened, double-plate hot tablet press developed by our company in accordance with market demand. This manual hot press is suitable for users who have strict pressure control accuracy and need wide-size mold compression test. It can perform high-temperature compression test on some solid samples such as powder, rubber, plastic film, and can also be used as a small vulcanizer It has been widely used in scientific research, teaching, persistence, pharmacy, catalysis, chemical industry and other industries, and can replace similar imported products


Specification

Model

RYJ-600E1

RYJ-600E2

RYJ-600EG1

RYJ-600EG2

Pressure range

0-12T0-30MPa

Piston diameter

Ф70mm chrome-plated cylinder

Pressure gauge type

Pointer type, 0-40Mpa, double scale display of pressure and pressure

Pressure method

Manual Pressure

Thermostat type

XNNETS PLC program temperature controller

Temperature control range of thermostat

RT --600.0/0.1

Mold heating type

Heating of upper and lower two plates (double plate/polished surface)

Mold heating temperature

RT-300.0

RT-500.0

Mold cooling method

Water cooling

Water cooling

Insulation method

Imported insulation board

Imported heat insulation board + stainless steel water-cooled heat insulation board

Heating mold size

80×180mm

200×200mm

180×180mm

200×200mm

Power

220V/1800W

220V/2500W

Dimension

280×320×520mm

Weight

95kg

standard configuration

1 hot press (water cooler optional)

Product Images

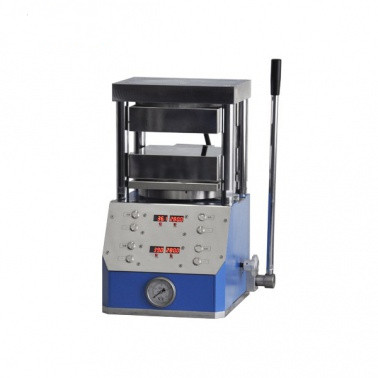

Hydraulic Hot Press

 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
