500℃ 24T Lab Manual Double Heat Plate Hydraulic Hot Press

500℃ 24T Lab Manual Double Heat Plate Hydraulic Hot Press

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164

  • Item No.:

    TMAX-RYJ-600CGS/500℃
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

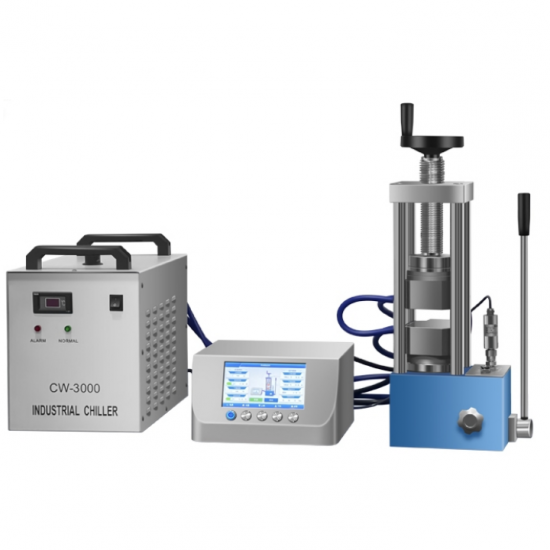

500℃ 24T Lab Manual Double Heat Plate Hydraulic Hot Press



The hot press is mainly used in some laboratories and units that need to perform high temperature and high pressure sample preparation or testing on powder samples, granular samples, plastic films and other solid samples. The particles or powders of the samples are heated and pressurized to make them chemically stable It has the advantages of improved performance, not easy to break, and good for cutting and preservation. It is an ideal supporting equipment for the engineering and technical personnel of various universities, colleges and research institutes to carry out spectroscopy detection and analysis. This machine can be used as a machine for multiple purposes, equipped with a suitable pressure die, and can also be used as an ordinary manual powder tableting machine. At the same time, the machine is also suitable for other working occasions that require corresponding pressure. It can be used as a press to test various objects. The degree of pressure resistance and so on.
The RYJ-600C electric heating tablet press is an intelligent, high-temperature hydraulic press developed by our company in accordance with market demand and on the basis of the original old hot press. This hot press has a very wide range of applications, which meets the needs of some customers for large tonnage pressure, especially the high temperature requirements for heating samples. This machine adopts our integrated structure patented technology. The main board, oil sump, and oil cylinder are on one main body. There is no sealing connection, which reduces the oil leakage point and reduces the oil leakage probability of the heat press. It is deeply loved by users at home and abroad.


Specification

Model

RYJ-600C

RYJ-600CS

RYJ-600CG

RYJ-600CGS

Model purchase

Pointer pressure gauge

Digital pressure gauge

Pointer pressure gauge

Digital pressure gauge

Pressure range

0-24T0-34MPa

Pressure conversion

1T=1.41Mpa

Piston diameter

Ф95mm chrome-plated cylinder

Max. piston stroke

30mm

Pressure gauge type

Pointer gauge, double scale display of pressure tonnage and pressure MPa

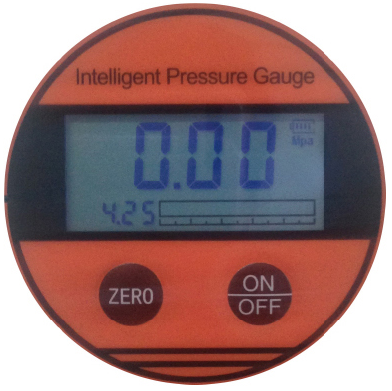

Digital pressure gauge

Digital display 0.00-40.00MPa/0.01MPa (optional, only "S" type)

Pressure method

Manual pressure

Thermostat type

XNNETS PLC program temperature controller

Number of thermostats

2 sets

Temperature control range of thermostat

RT -600.0/0.1

Heating mold size

100×100mm2sets

Mold heating temperature

RT-300

RT-500

Mold cooling method

Water cooling cycle to cool down quickly

Water cooling cycle to cool down quickly

Equipment insulation method

Imported heat insulation board

Imported heat insulation board + stainless steel water-cooled heat insulation board

Power

220V/600W

220V/1000W

Dimension

1000×470×500mm

Host size

245×175×500mm (without matching)

Weight

About 60kg

Structure

Split structure

Standard configuration

1 hot press host, 2 thermostats (optional water cooler, 1 water cooler must be equipped above 300)



Pressure Conversion

Model No.

Pressure conversion table for RYJ-600C series double-plate heat press



Actual output pressure

Pressure gauge system pressure

Pressure gauge type

1 T

1.41 MPa




2T

2.82 MPa

3 T

4.23 MPa

5 T

7.06 MPa

8 T

11.3 MPa

10 T

14.1 MPa

15 T

21.2 MPa

20 T

28.3 MPa

24 T

34.0 MPa

Pressure calculation formula

The area of the oil cylinder/the area of the mold × the reading of the pressure gauge = the actual pressure of the mold (Mpa)

Note

The system pressure (ie pressure gauge reading) should not exceed 34MPa, otherwise it will affect the service life of the equipment

300C and 500C hot press


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
