Widened Lab Manual Integrated Hot Press with Double Plate 300C 500C

Widened Lab Manual Integrated Hot Press with Double Plate 300C 500C

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-RYJ-600E
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

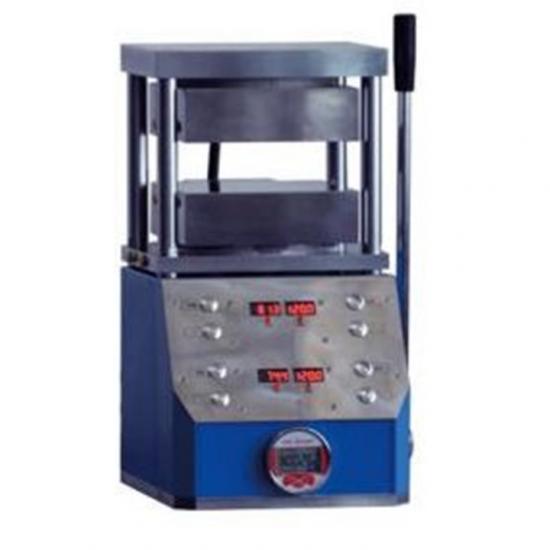

Widened Lab Manual Integrated Hot Press with Double Plate 300C 500C


New RYJ-600E series manual hot press is our company combined with market demand, developed a new small tonnage, widened type, integrated, double plate hot press. This machine satisfied to stress more stringent control accuracy, and wide size sample hot-pressing experimental users, for powder, rubber, plastic film and so on some sample experiment of high temperature solid samples can also be used as a  small rheometer, is now widely used in scientific research, teaching, persistence, medicine, catalysis, chemical and other industries, can replace similar imported products.




Main technical parameters

Product name

RYJ-600E1

RYJ-600E2

RYJ-600EG1

RYJ-600EG2

Pressure range

0-10T(0-30Mpa)

Pressure conversion

1t=3Mpa/1Mpa=0.33t

Piston diameter

Dia65mm chrome plating cylinder

Type of pressure gauge

Digital display, range 0.001-40.000Mpa, display precision 0.001mpa

Pressure mode

Manual pressure

Temperature controller type

XNNETS PLC programmed temperature controller(double

temperature controller)

Temperature control range

RT-600.0/0.1

Type of hot pressing die

Double die heating up and down (polished surface)

Heating die size

180*180mm

200*200mm

180*180mm

200*200mm

Temperature of hot pressing die

RT-300

                    RT-500

Heating die cooling method

Cooling by natural or water cooler

          Cooling by natural or water cooler

Equipment insulation Mode



Imported heat shield

Imported heat insulation board + stainless steel water cooling cycle heat insulation board

Power

220V/1800W

220V/2500W

Overall structure

One-piece construction

Size of  the machine

        280*320*520mm(The weight of the water cooler is not included)

Weight

About 80-95kg

Model specification

     Water cooling machine (optional)


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
