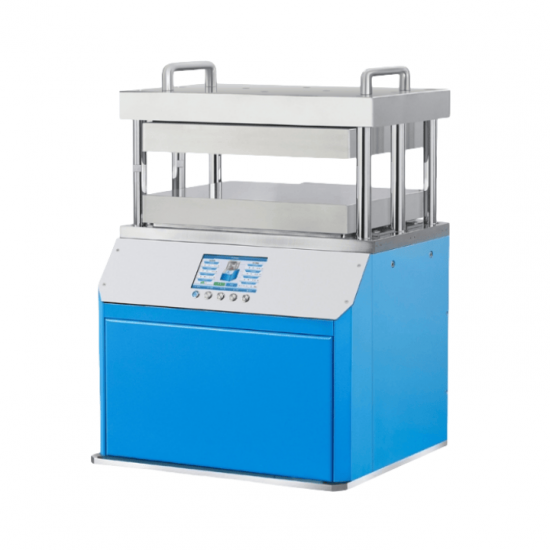

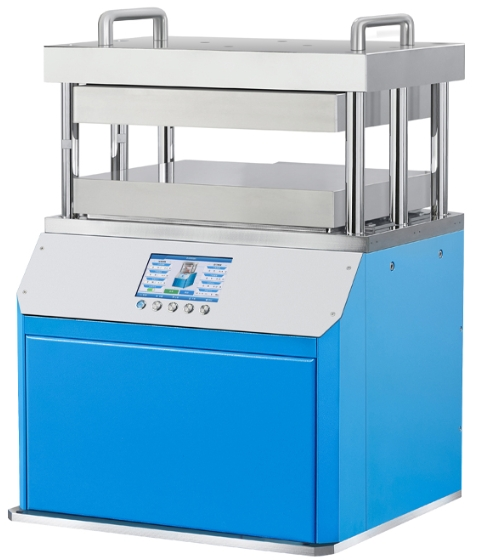

Lab Integrated 50T 300C Heat Press with Double 500×500mm Heating Plate

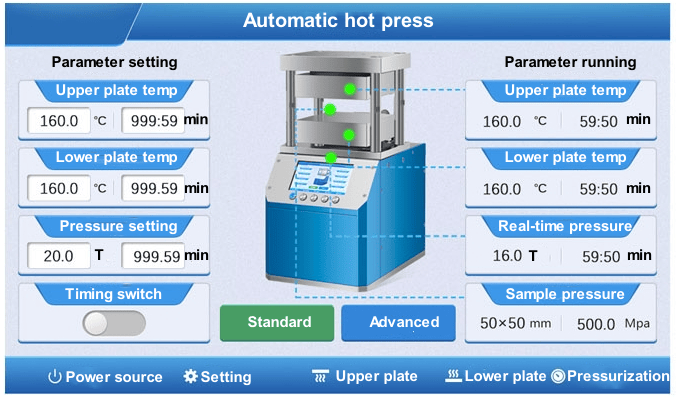

Operation interface (Standard mode)

Standard interface: The heating temperature and constant temperature time of the upper and lower plates can be set separately on the interface.

Pressurization button: Press according to the parameters set on the interface.

Upper plate button: Heat the upper heating plate.

Lower plate button: Heat the lower heating plate.

Timing switch: The timing function can be turned on and off.

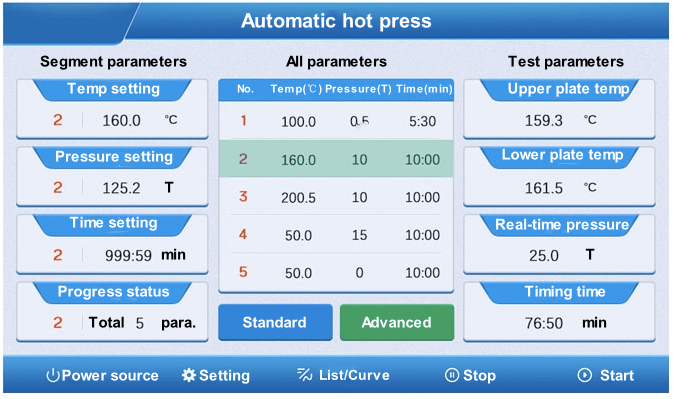

Operation interface (Advanced mode)

Start button: It can be pressurized according to the multi-stage pressurization program.

Stop button: During the heating process, pressing the stop button can stop the heating.

Settings button: Click the Settings button to enter the Settings menu.

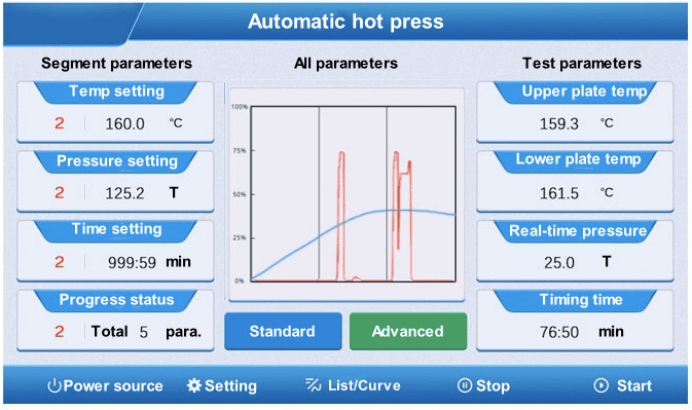

Operation interface (Advanced mode)

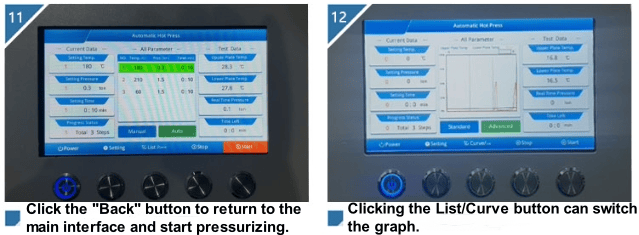

List/Curve: The current display state can be switched between list and curve.

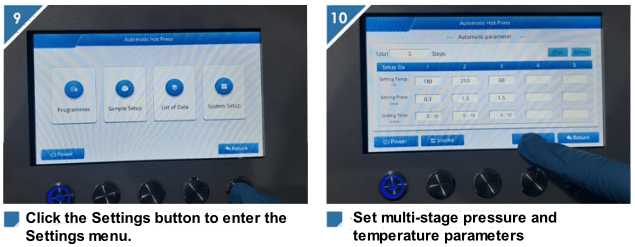

Setting interface

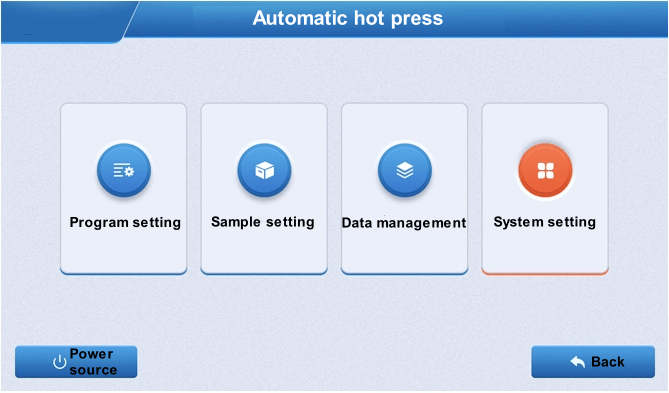

Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings:Multi-stage pressure procedures and pressure holding times can be set.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"

Setting interface

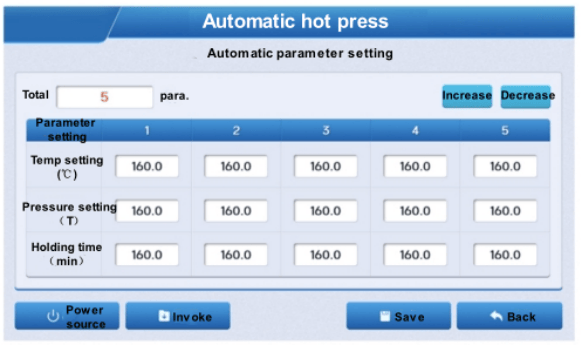

Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.

Invoke button: Invoke the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen

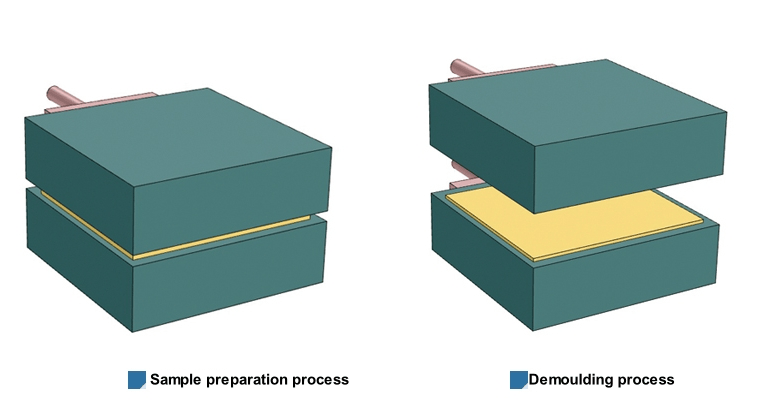

Mold operation diagram

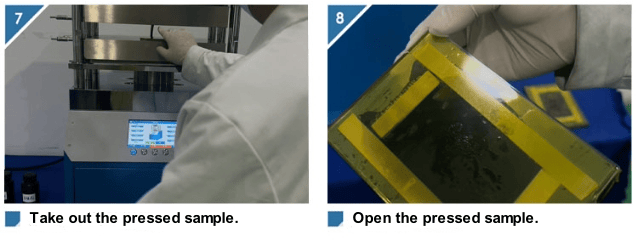

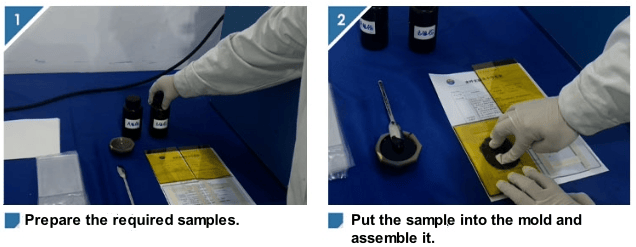

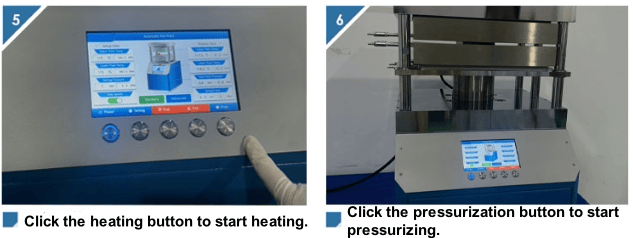

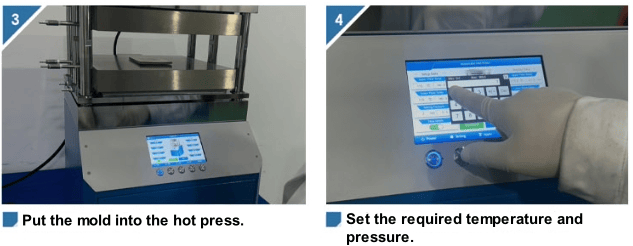

Operation procedure

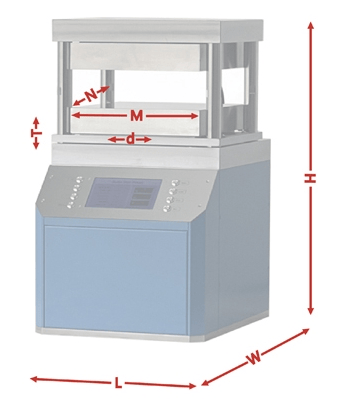

Technical parameter

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
