Lab Intelligent Automatic Isostatic Cold Hydraulic Press Machine 20T 40T 60T 100T

Lab Intelligent Automatic Isostatic Cold Hydraulic Press Machine 20T 40T 60T 100T

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-ZJYP
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

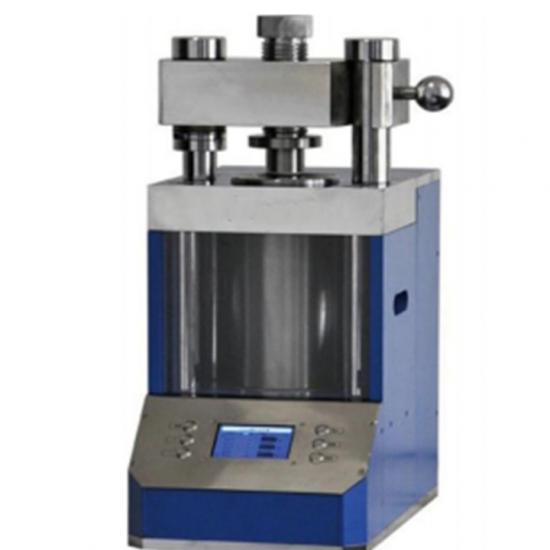

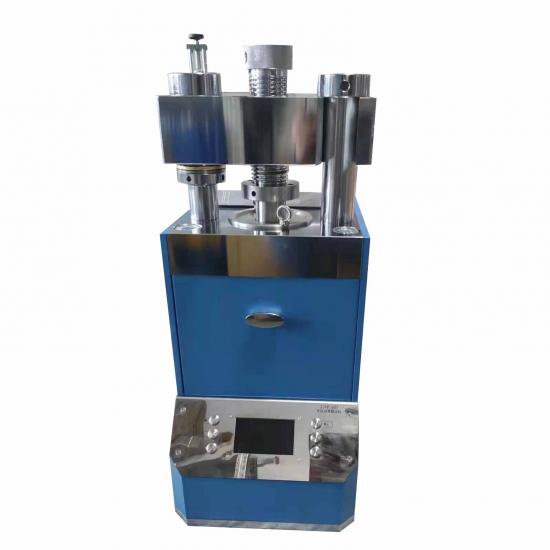

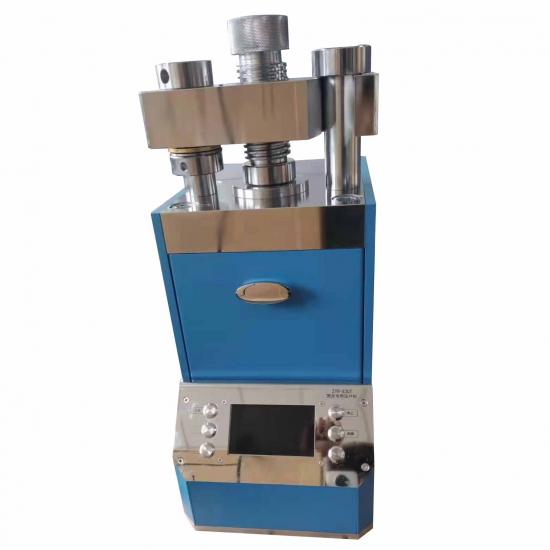

Lab Intelligent  Automatic Isostatic Cold Hydraulic Press  Machine 20T 40T 60T 100T











New ZJYP-T series


ZYJP series automatic isostatic pressing machine adopts upper plate rocker arm structure, intelligent automatic operation: program pressurization/slow pressurization-pressure maintenance-pressure supplementation-time pressure relief, etc., steel plate protection and equipped with plexiglass protection door, operation production Safer and more assured, with stable pressure and convenient operation, it is another innovative masterpiece developed by Tmax on the basis of electric static press.




Technical parameters




Instrument model

ZJYP-20T

ZJYP-40T

ZJYP-60T

ZJYP-100T

Pressure range



1-20.0T

1-40.0T

1-60.0T

1-100.0T

Voltage regulation accuracy

0.1t

0.1t

0.1t

0.1t

Piston diameter

Dia110mm plated oil cylinder

Dia130mm plated oil cylinder

Dia150mm plated oil cylinder

Dia200mm plated oil cylinder

Maximum cylinder stroke



50mm

Pressurization method

Electric pressurization



Pressurization process

Intelligent full-automatic, programmed pressurization / slow pressurization - programmed pressure maintaining / pressure replenishing - timed pressure relief

Display method

XNNETS4.3 inch LCD screen

Compress time

0-999.59 (minutes.seconds)

Pressure conversion

The program is automatically converted, and the digital display of the pressure of the mold sample (Mpa)

Equipment protection

Steel plate protection + plexiglass protection door

Equipment structure

One-piece, upper plate rocker structure, easy to operate, saving time and effort

Device power

220V/1500W (50Hz/60Hz)

Isostatic chamber size

030 X 150mm

040 X 150mm

050 X 150mm

060 x 150mm

Cavity maximum pressure

300Mpa

300Mpa

300Mpa

300Mpa

Dimensions

240×390×560mm

280×460×660mm

300×500×680mm

330×580×720mm

Instrument weight

120kg

180kg

240kg

290kg

Model Description

The isostatic pressing machine with higher pressure (≤500Mpa) can be realized by adjusting the size of the isostatic pressure chamber.




 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
