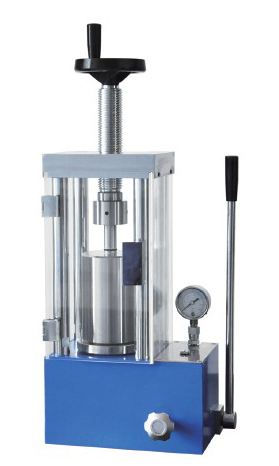

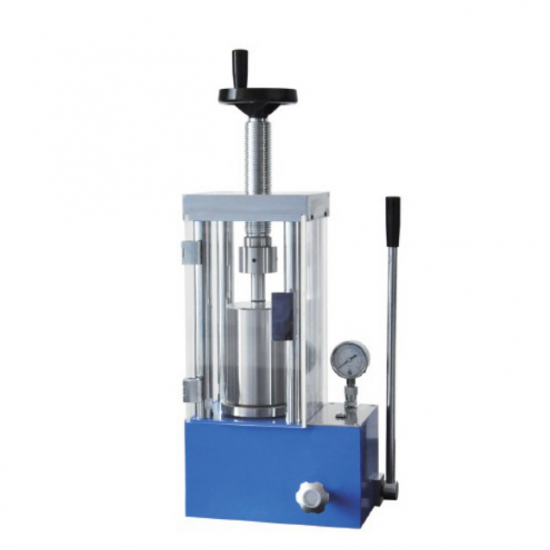

12T 20T 40T 60T Lab Manual Cold Isostatic Press Hydraulic CIP Pressing Machine

12T 20T 40T 60T Lab Manual Cold Isostatic Press Hydraulic CIP Pressing Machine

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-CIP-12J
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

12T 20T 40T 60T Lab Manual Cold Isostatic Press Hydraulic CIP Pressing Machine


The isostatic press is suitable for the users who have strict requirements on the uniformity of sample forming. The powder can be directly formed through the isostatic pressing chamber, or the samples that have been formed can be re formed to make their density more uniform. It has been widely used in scientific research, teaching, testing, pharmaceutical, catalytic, chemical and other laboratory industries.


Features

1. The sample made of isostatic pressure has high density and uniformity, small sintering shrinkage and is not easy to deform.

2. It can form slender rod or tubular blank which is difficult to be prepared by conventional molding process.

3. The products have high strength and good processability, which can greatly reduce the internal stress.

4. The mold is easy to make, with long service life and relatively low cost.

5. Capable of forming large-scale blank, each cylinder can press multiple blank.

6. Suitable for laboratory use, small instrument

7. The instrument can remove the isostatic pressure chamber and replace the cold pressing die, which has the characteristics of one machine for dual use.

8. Integrated structure patent technology


Specification

Model

SJYP-12T

SJYP-20T

SJYP-40T

SJYP-60T

Pressure range

 0-12T(0-17MPa)

 0-20T(0-21MPa)

 0-40T(0-30MPa)

 0-60T(0-34MPa)

Piston diameter

Φ95mm

Φ110mm

Φ130mm

Φ150mm

Maximum piston stroke

40mm

40mm

50mm

50mm

Cavity Size

Φ22×70mm

Φ30×120mm

Φ40×150mm

Φ50×150mm

Analog pressure gauge

Analog pressure gauge is included in the standard package,

Dual scale display: Mpa and Ton

Pressurization mode

Manual pressure / manual slow

protection cover

Plexiglass protective cover

Isostatic pressure

0-300 MPa

Overall structure

Patent technology of integrated structure, no sealing connection of equipment, reducing oil leakage point

Ambient  temperature

10- 40

Machine dimensions

305×195×530mm

305×195×600mm

355×215×710mm

405×240×720mm

Weight

90kg

100kg

130kg

180kg

If you need rubber mould for the press, please contact the sales manager for further quote.

Pressure conversion

Real Pressure

System Pressure

Tank inner pressure

1T

1.41MPa

25MPa

2T

2.82MPa

50MPa

3T

4.23MPa

75MPa

4T

5.64MPa

100MPa

5T

7.06MPa

125MPa

6T

8.46MPa

150MPa

8T

11.3MPa

200MPa

10T

14.1MPa

250MPa

12T

17MPa

300MPa



Product Images


CTP press


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
