Item No.:
TMAX-PC-60JPayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
15 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:
One year limited warranty with lifetime technical support

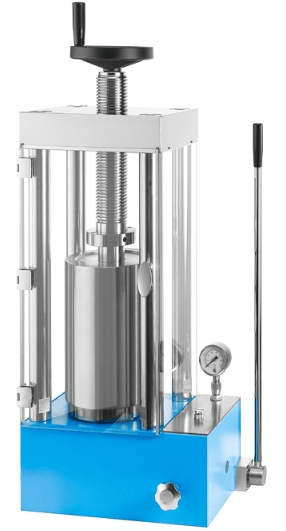

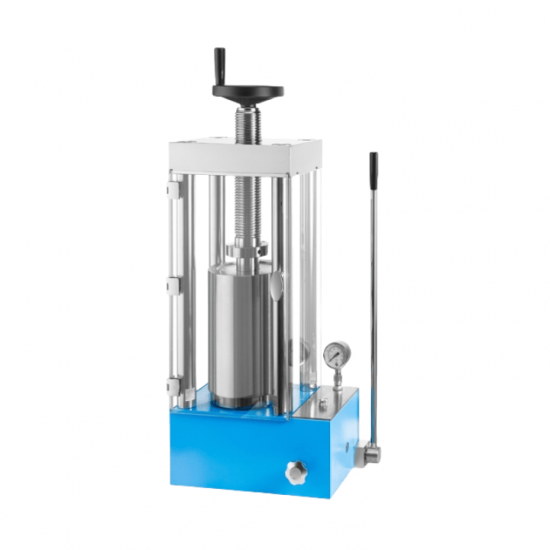

Lab 60T Large Tonnage 34Mpa Manual CIP Press Optional Cavity Mold

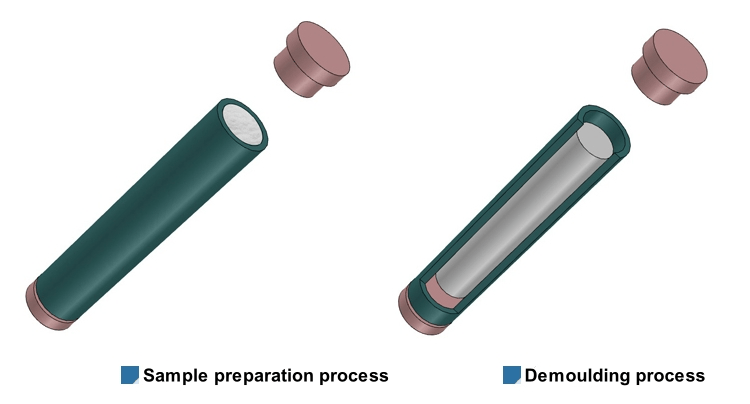

Cavity mold diagram
Cavity mold operation diagram

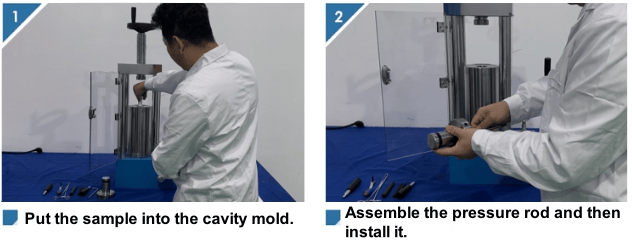

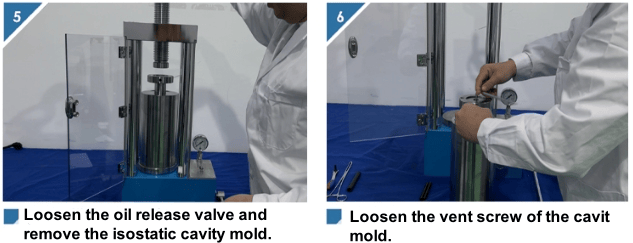

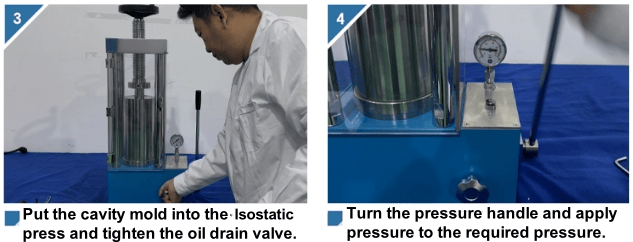

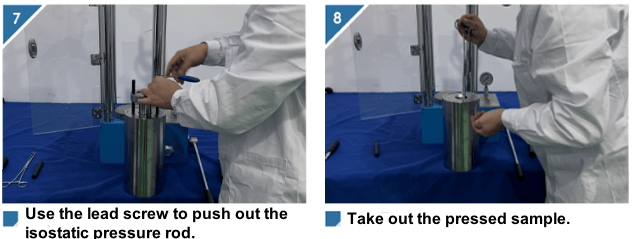

Operation procedure
Technical parameter
|
Instrument type |
PC-40J |
|
Pressure range |
0-60T(0-34MPa) |
|
Piston diameter |
Chrome-plated cylinder Φ130mm(d) |
|
Overall structure of the main body |
The equipment has no sealed connection, reducing oil leakage points |
|
Pressure gauge |
Dual-scale display of pressure and intensity |
|
Maximum piston stroke |
50mm(T) |
|
Protective cover |
Organic glass |
|
Ambient temperature |
10℃-40℃ |
|
Isostatic pressure |
Φ50x150mm(MXN) 0-300MPa Φ35x150mm(MXN) 0-500MPa |
|
Equipment weight |
180Kg |
|
Equipment size |
405x240x720(LXWXH) |
|

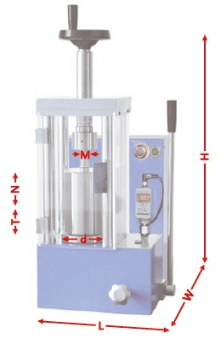

Powder press size diagram |
|

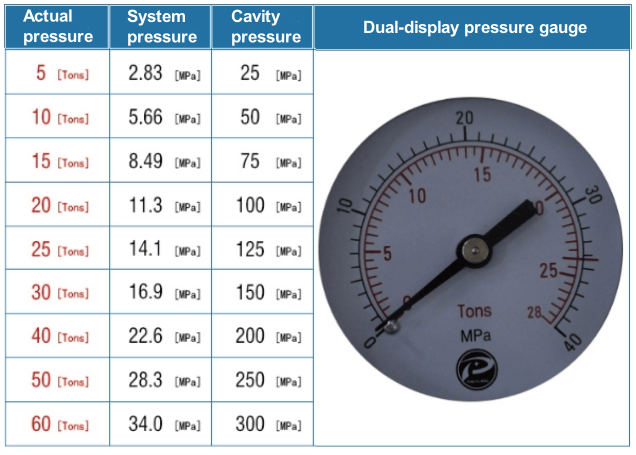

Pressure conversion
Note: Generally, the system pressure should not exceed 35MPa; otherwise, it will affect the service life of the equipment.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
