12T Small Manual Cold Isostatic Press Hydraulic CIP Pressing Machine

12T Small Manual Cold Isostatic Press Hydraulic CIP Pressing Machine

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-CIP-12J
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

12T Small Manual Cold Isostatic Press Hydraulic CIP Pressing Machine

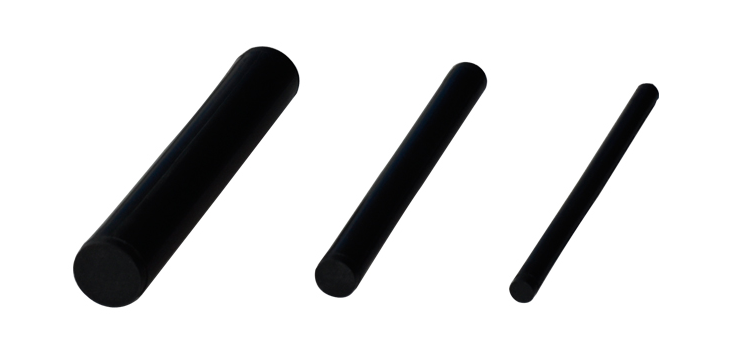

TMAX-CIP-12J is a CE Certified and the smallest cold isostatic pressing (CIP) machine used for laboratory powder pressing. It has a 22mm ID hydraulic chamber made by ultra strength stainless steel, which can provide isostatic pressure up to 300 Mpa via a 12T manual hydraulic press. It is an excellent tool to prepare high-density compound pellet and small diameter rod. CIP-12J has the small footprint and can be placed in glove-box to prepare air-sensitive materials. A plastic protection cover is included.


Main Features

a).Small size, light weight,No oil, easy to carry.
b).High speed steel imported from Japan
c).Digital display pressure gauge 0.1MPa,Pressure control is more accurate.
d).The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.
e).Special plunger, special custom sealed structure, good sealing effect, no oil leakage
f).The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.
g).One one main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.
h).Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

i).The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage


Specification

12T cold isostatic Pressing machine

Application

Laboratory CIP Pressing

Hydraulic pressing range

0~12T(0-17MPa)

Piston Diameter

O.D95mm

Structure

oil tank,machine base No sealing connection, no oil leak point

Pressure gauge

Digital pressure gauge

Maximum piston distance

40mm

Environment temperature

10~40 degree

CIP Pressure range

0~300MPa

CIP Tank dimension

O.D22*70mm

Outer dimension

305*195*530mm

Gross Weight

92Kg

Pressure conversion

Real Pressure

System Pressure

Tank inner pressure

1T

1.41MPa

25MPa

2T

2.82MPa

50MPa

3T

4.23MPa

75MPa

4T

5.64MPa

100MPa

5T

7.06MPa

125MPa

6T

8.46MPa

150MPa

8T

11.3MPa

200MPa

10T

14.1MPa

250MPa

12T

17MPa

300MPa



Product Images

CIP

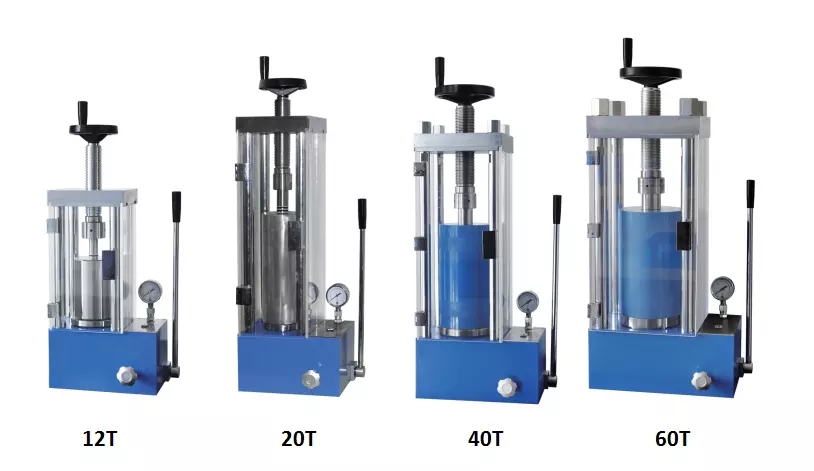

MANUAL CTP PRESS

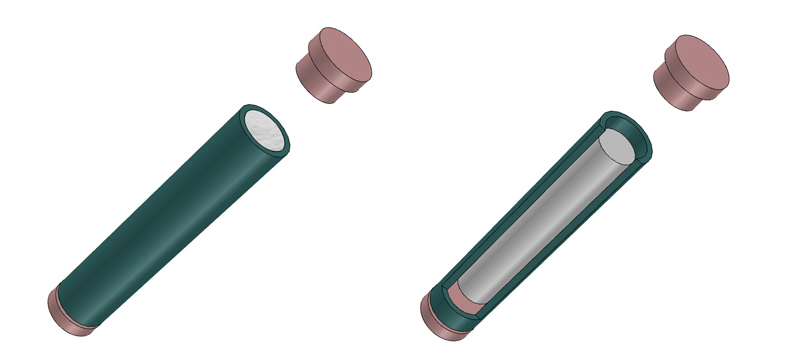

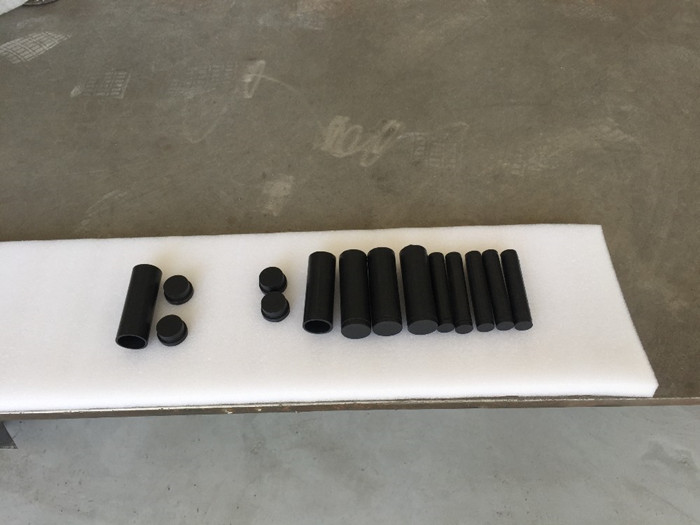

Machine Parts: Rubber Mold, can be used recycle

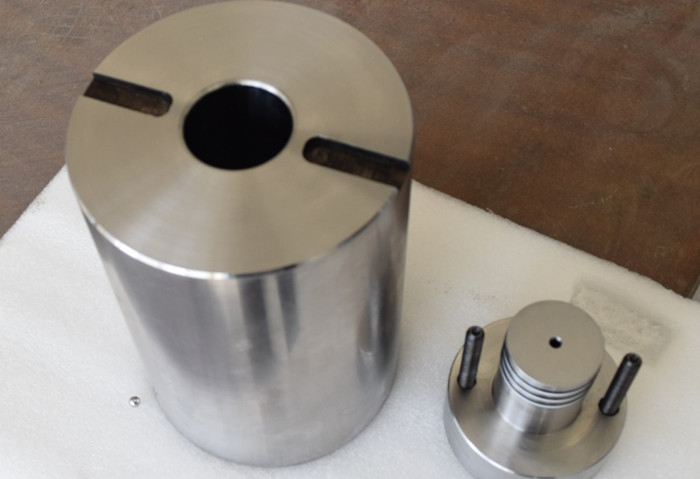

Main Features: CIP Stainless steel tank

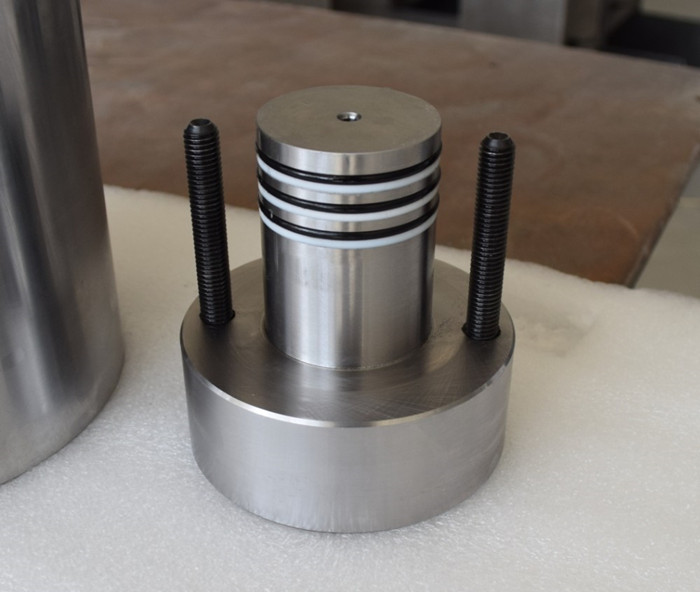

Machine Parts: Sealing cap


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
