12-60T Lab Electric Cold Isostatic Press Hydraulic CIP Pressing Machine

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-DJYP
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

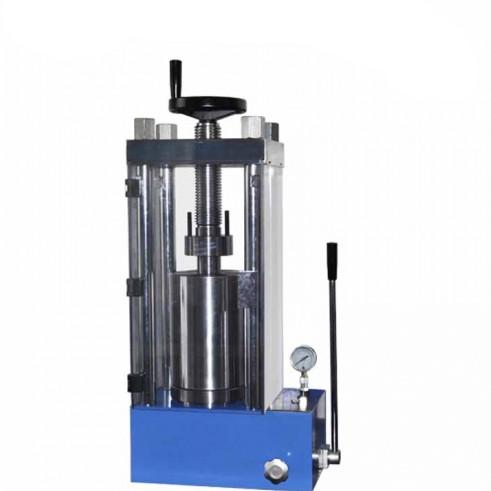

12-60T Lab Electric Cold Isostatic Press Hydraulic CIP Pressing Machine

The isostatic press is suitable for the users who have strict requirements on the uniformity of sample forming. The powder can be directly formed through the isostatic pressing chamber, or the samples that have been formed can be re formed to make their density more uniform. It has been widely used in scientific research, teaching, testing, pharmaceutical, catalytic, chemical and other laboratory industries.

Features

1. The sample made of isostatic pressure has high density and uniformity, small sintering shrinkage and is not easy to deform.

2. It can form slender rod or tubular blank which is difficult to be prepared by conventional molding process.

3. The products have high strength and good processability, which can greatly reduce the internal stress.

4. The mold is easy to make, with long service life and relatively low cost.

5. Capable of forming large-scale blank, each cylinder can press multiple blank.

6. Suitable for laboratory use, small instrument

7. The instrument can remove the isostatic pressure chamber and replace the cold pressing die, which has the characteristics of one machine for dual use.

8. Integrated structure patent technology

Specification

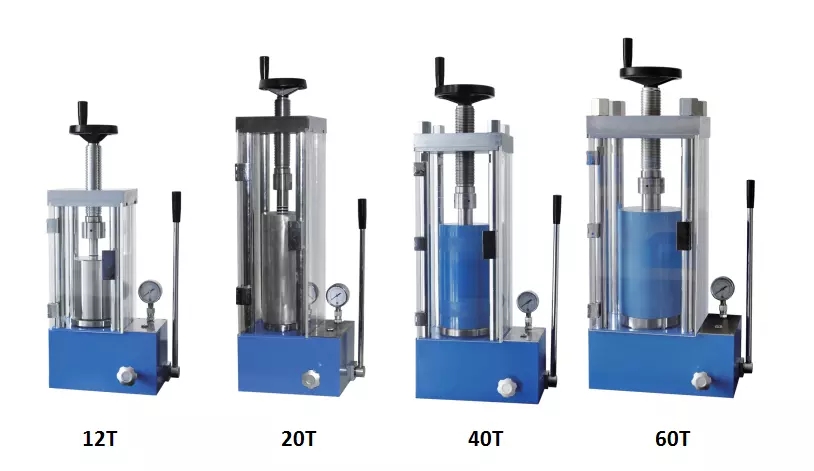

Model	DJYP-12TS	DJYP-20TS	DJYP-40TS	DJYP-60TS
Pressure range	0-12T(0-17MPa)	0-20T(0-21MPa)	0-40T(0-30MPa)	0-60T(0-34MPa)
Piston diameter	Φ95mm	Φ110mm	Φ130mm	Φ150mm
Maximum piston stroke	40mm	40mm	50mm	50mm
Cavity Size	Φ22×70mm	Φ30×120mm	Φ40×150mm	Φ50×150mm
Pressure gauge	Digital pressure display, 0.0-40.0 MPa
Pressurization mode	Electric / manual pressurization
Supplementary pressure mode	Automatic pressure supplement / manual slow pressure
protection cover	Plexiglass protective cover
Isostatic pressure	0-300 MPa
Overall structure	Integrated, equipment without sealing connection, reducing oil leakage point
Ambient temperature	10℃ - 40℃
Power Supply	220V(50Hz/60Hz)	220V(50Hz/60Hz)	220V(50Hz/60Hz)	220V(50Hz/60Hz)
Machine dimension	305×430×530mm	305×430×600mm	355×450×710mm	405×470×720mm
Weight	112kg	119kg	151kg	198kg
Note	If you need rubber mould for the press, please contact the sales manager for further quote.
