Heated Mounting Press for Metallographic Samples

Heated Mounting Press for Metallographic Samples

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-EQ-MP-300
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Min order:

    2
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

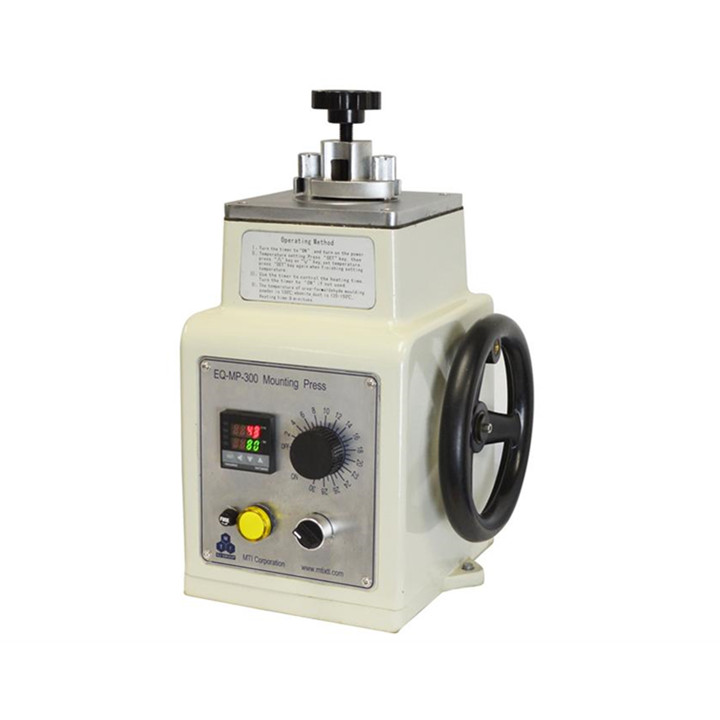

Heated Mounting Press for Metallographic Samples





EQ-MP-300 automatic mounting press is used to encapsulate samples for metallographic preparation, which can produce the sample mold at 22 mm diameter by hot pressing.

SPECIFICATIONS:

Power

Standard AC 208-240V 50/60Hz
650W
 (For AC 110V power supply please order a 1500W voltage transformer)

Temperature Control Range

100 - 180oC

Time control Range

1 - 30 Min.

Pressure control

Handwheel with  Pressure ready sensor
Pressure ~100kg

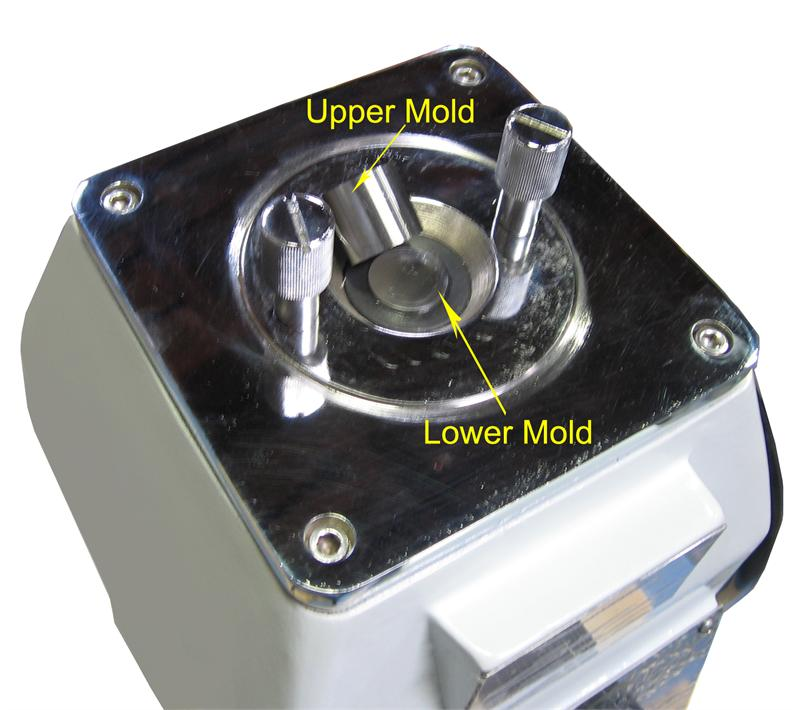

Compression Mold

     Standard: D22  x H15 mm

Machine Dimension

250x320x430 mm

Machine Net weight

80 Lb.

Shipping Weight & Dimensions

· 120 lbs

· 40" x 30" x 28"




Optional

Please order Compression Mounting Powder (5 Lb) optional color of Black, Red, Green - EQ-HM-Powder5L at the related product below







 Tmax CE



 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
