Power

· 220VAC 50Hz or 60Hz (Please specify frequency upon purchasing)

· For AC 110V power supply please order a 1500W voltage transformer

· 1200W (10A air breaker required)

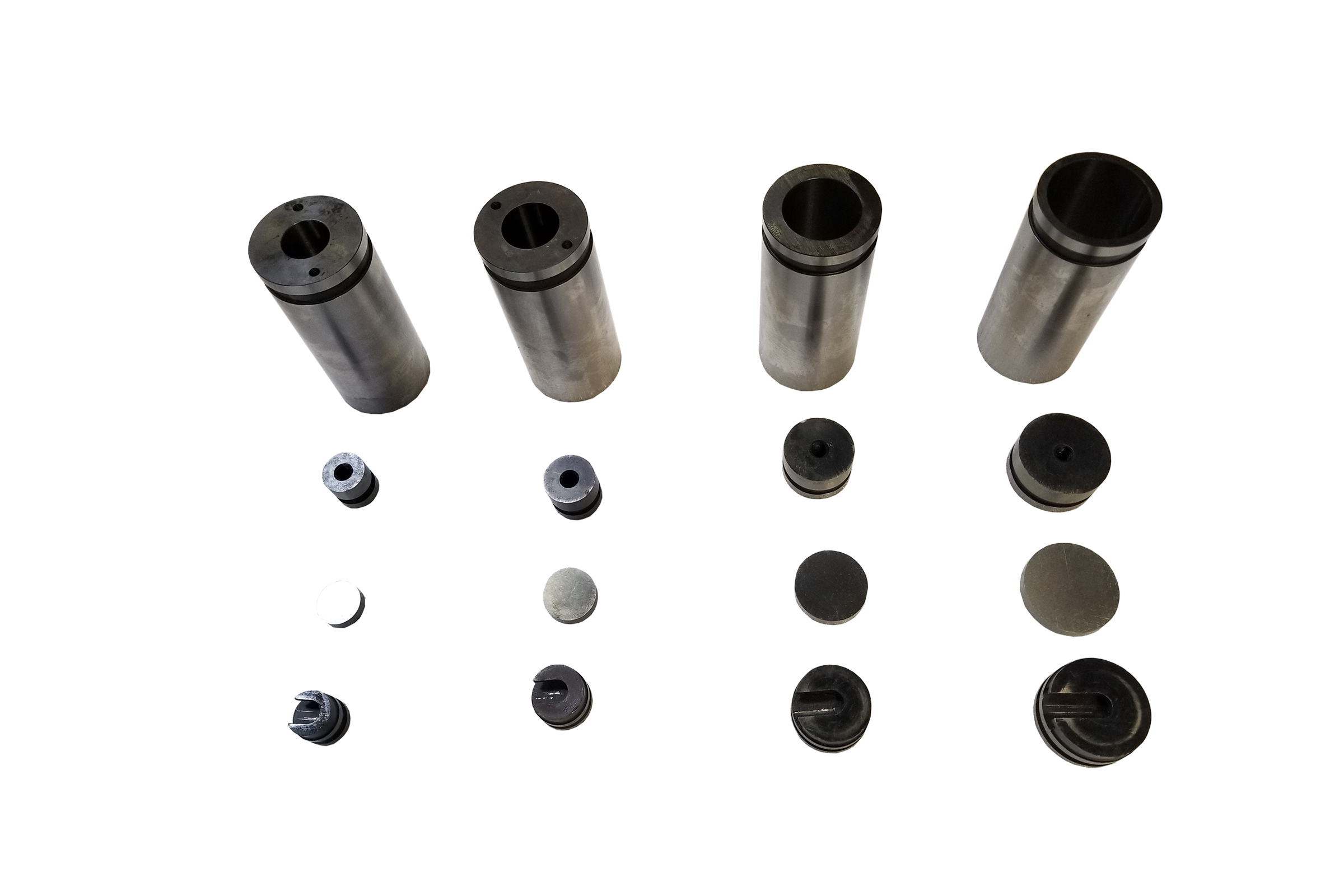

Pressing Die

· Four sets of mounting dies are included with an ID of 25, 30, 40, and 50 mm, which can make two samples at the same time.

· Each Die Set include:

· Die Sleeve: OD 60 mm, Height ~135 mm

· Upper Pressing Rod: Height ~26 mm

· Lower Pressing Rod: Height ~26 mm

· Separating Plate: Height: 8 mm

Control Panel

· 5" Touch Screen Digital control for setting parameters:

· Temperature:                  100 - 200^oC

· Heating and dwell time:   1 - 999 minute

· Loading:                           200 -  2306 kg  ( via hydraulic cylindrical )

· Pressure:  depended on mounting die diameter

· Max. 470  Bar for 25 mm die

· Max:  326 Bar for 30 mm die

· Max.  183 bar for 40 mm  die

· Max.  118 Bar  for 50 mm die

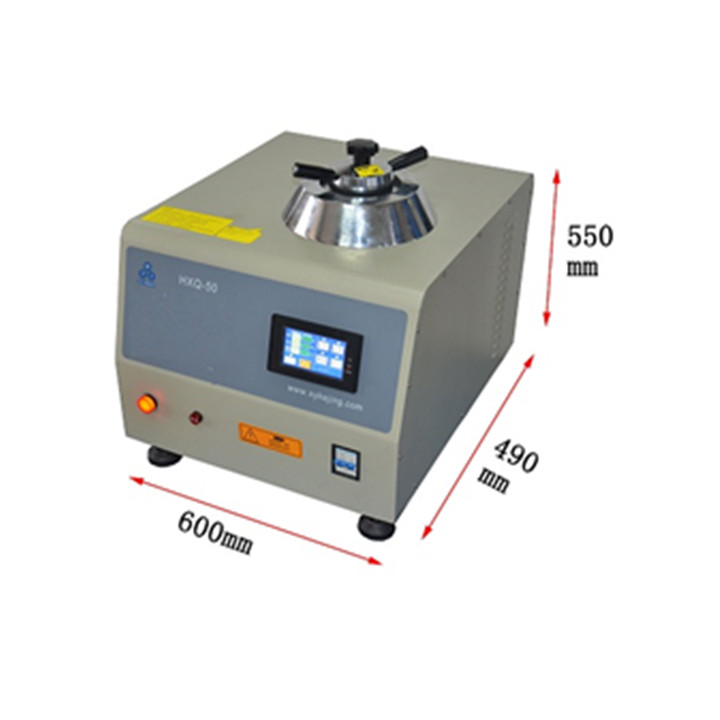

Machine Dimension

Compliance

· CE Markered

· NRTL certification is available upon request at extra cost

Machine Net weight

200 Lb.

Shipping Weight & Dimensions

· 250 lbs

· 40" x 30" x 28"

Optional

Please order Compression Mounting Powder (5 Lb) optional color of Black, Red, Green - EQ-HM-Powder5L at the related product below

Warranty

One-year limited warranty with lifetime support
