Compact Vibratory Polisher with Complete Accessories

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-UNIPOL-900Z/120
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Min order:
2
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

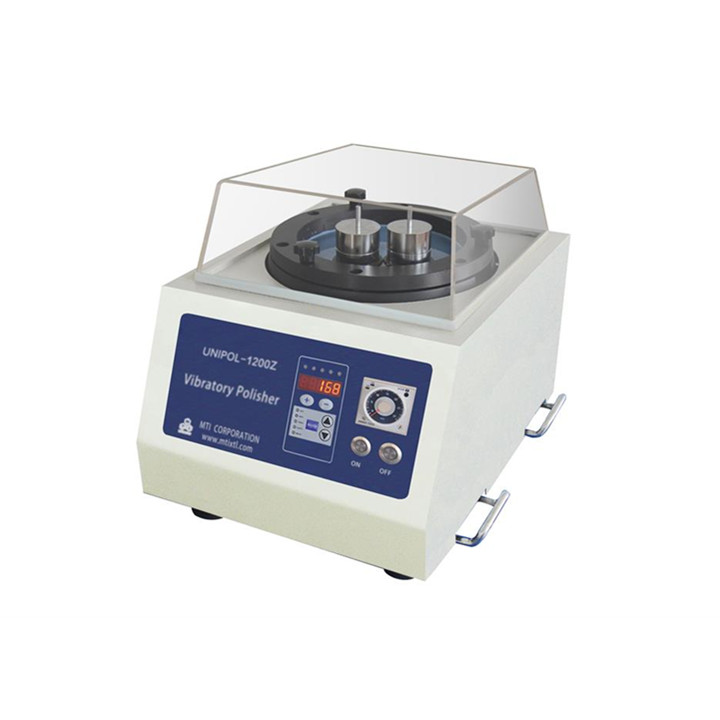

Compact Vibratory Polisher with Complete Accessories

UNIPOL-900Z/1200Z is a vibratory polishing machine designed for materials that are difficult to prepare with regular polishing, and it removes stress without damaging the materials in order to fully support for material microscopic analysis, especially EBSD analysis.

SPECIFICATIONS:

Model	· UNIPOL-900Z	· UNIPOL-1200Z
Power	· Voltage: 220V AC, 50Hz (For AC 110V power supply, please order a 500W voltage transformer) · Power: 450W	· Voltage: 220V AC, 50Hz (For AC 110V power supply, please order a 750W voltage transformer) · Power: 650W
Working Plate Diameter	· 231mm	· 316mm
Standard Accessories	· Three 1.25" sample holders (450g) - pic1 · One 1.25" bottom plate - pic2 · Three 1.25" individual weights (460g) - pic3 · Above three accessories are also available for 1", 1.5" and 2". Customization is also available with an extra cost · Six Φ230mm polishing pads (3 Frosted Leather & 3 Synthetic Leather) - pic4 & 5 · One 500ml alumina polishing liquid - pic6 · One 500ml silica polishing liquid - pic6 · pic1 pic2 pic3 pic4 pic5 pic6
Machine Dimension	472mm (L) x 530mm (W) x 438mm (H)	660mm (L) x 530mm (W) x 430mm (H)
Compliance	· NRTL certification is available upon request at an extra cost
Machine Net weight	· 82 Kg	· 135 Kg
Warranty	One-year limited warranty with lifetime support
