Compact Manual Disassembling Machine for Cylinder Cell

Compact Manual Disassembling Machine for Cylinder Cell

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164




  • Item No.:

    TMAX-MSK-530
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Product origin:

    China
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

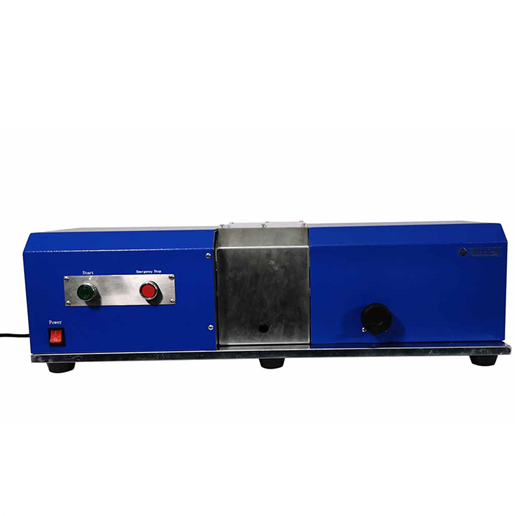

Compact Manual Disassembling Machine for Cylinder Cell

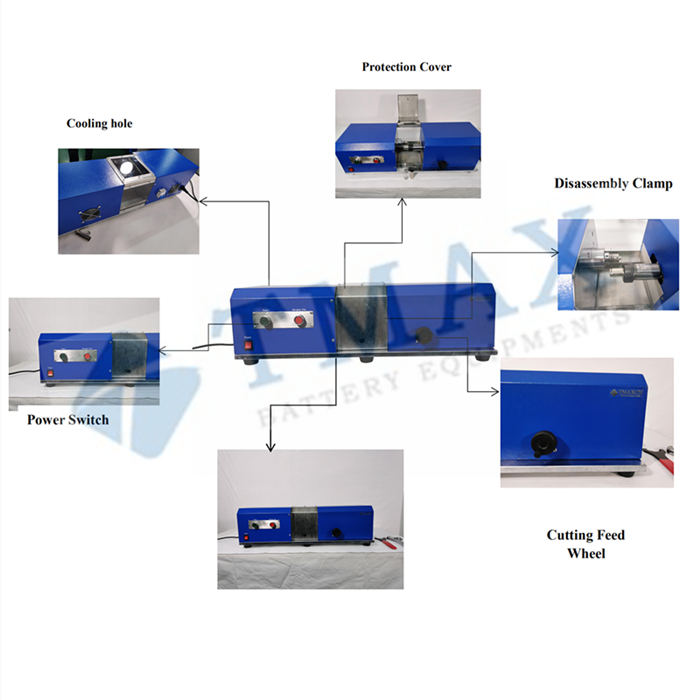

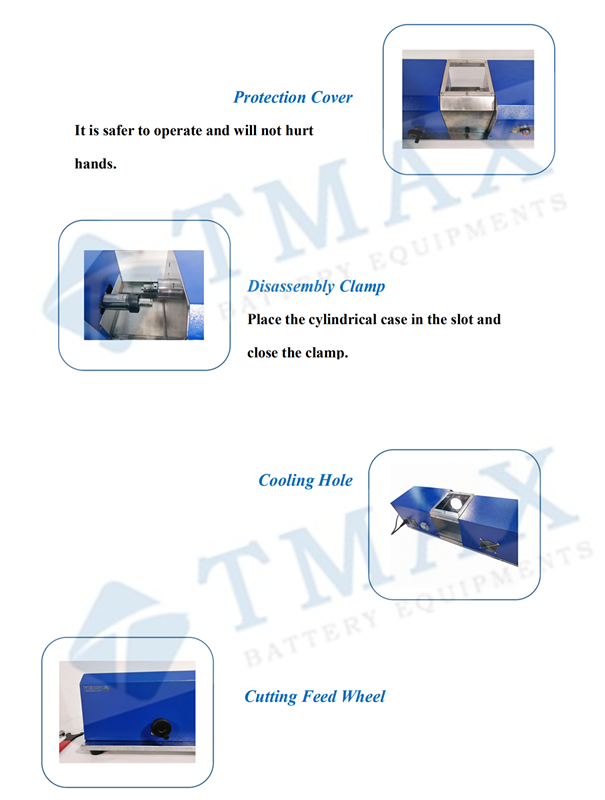

TMAX-MSK-530 is a compact manually-operated machine for disassembling cylinder cases in battery R&D lab. The compact body design allows easy operation inside a glove box to preserve & prevent the electrolyte and active materials from contamination during case disassembling. Simple operation with safety protection cover allows customers to master the disassembling procedure within 5 minutes


Model

18650 cylindrical cell disassembling machine  TMAX-MSK-530

Supply Voltage

AC220V Single phase

(110VAC available with a transformer)

Power

100W

Slicing Motor Speed

1000 rpm

Die Rotating Speed

1000 rpm

Micrometer Accuracy

0.05mm

Warranty

One year limited with lifetime support

Product Dimensions

480mm(L) x320mm(W) x 230mm(H)


Accessories

Standard disassembling die for 18650 case.

Additional die sets available for 26650 and 32650 as option.

Net Weight

35 kg

Shipping Weight & Dimensions

100 lbs; 40"x20"x20"


Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
